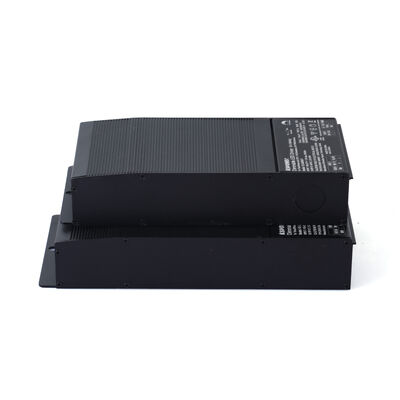

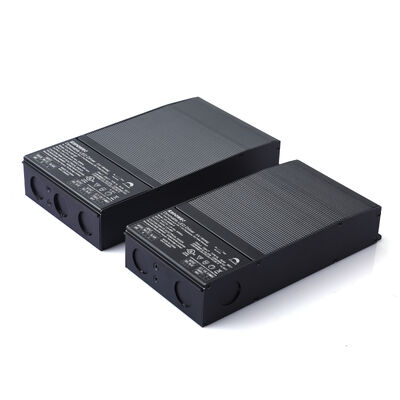

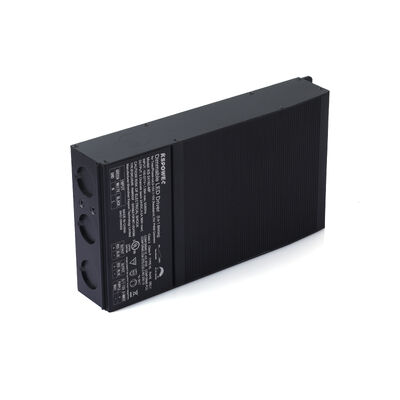

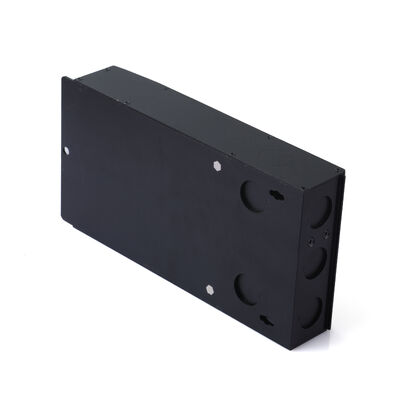

240W 5 In 1 Dimming IP65 Rated LED Lights Driver and Dimmable LED Power Supply

Brand Name:	KSPOWER
Model Number:	KS-xxx00a-P
MOQ:	1pcs
Price:	$60.52-65.8/pieces
Payment Terms:	T/T
Supply Ability:	30000pcs/monthly

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

UL FCC CE ROHS SAA CLASS 2 CLASS P etc.

Warranty(Year):

5-Year

Lighting Solutions Service:

Lighting And Circuitry Design

Output Power:

240W

Output Type:

PWM Or DC

Input Voltage:

100-277V

Output Frequency:

50/60Hz

Application:

LED Strip Light,Pendants, Linears,Cove Lights

Warranty:

5 Years

Protection:

OCP, OVP, SCP, OTP

IP Rate:

IP65

Efficiency:

≥90%

Output:

12V24V36V48V

Packaging Details:

Small box and Cartons

Highlight:

240W LED Lights Driver

5 In 1 Dimming Dimmable LED Power Supply

IP65 Rated 5 In 1 Dimmable Driver

Product Description

12V 4x60W(240W) 5 In 1 Dimming Class 2 LED Lights Driver

The KSPOWER MVP Series 5-in-1 dimmable LED power supply features a universal 100-277VAC input and multiple constant-voltage 12V outputs. This 60W per-channel, 4-way driver provides smooth compatibility with MLV, ELV, and phase-cut dimmers. The patented aluminum housing enhances durability, while NEMA 3R protection ensures reliable operation in outdoor environments. Certified to UL cUL Class 2 and CE standards, this LED transformer offers superior energy efficiency and long-term reliability backed by a 5-year warranty.

Key Features

PWM or Voltage Reduction output selectable
3-Ways universal dimming functions optional:
- 5 in 1 dimming: TRIAC, ELV, MLV, 0-10V, 1-10V, 10V PWM and potentiometer dimming
- Triac dimming: TRIAC/phase, ELV, MLV dimming
- 4 in 1 dimming: 0-10V, 1-10V, 10V PWM and potentiometer
- Non-dimming option available
Super compact aluminum case design
UL/cUL CE Class 2 CLASS P FCC RoHS LPS certified
NEMA 3R rated for indoor or outdoor use
Switch to dual-color temperature LED strips with 100%-0.01% dimming flicker-free
Auto-reset protection for input/output overvoltage, overcurrent, overtemperature, over power, and short circuit conditions

Specifications

Model	KS-12240a-M#
Output Voltage	12V
Rated current × Channel	5.0A×4
Rated Power	240W
Ripple & Noise (Max)	200mVp-p
Voltage Accuracy	±2.0%
Linear Adjustment Rate	±0.5%
Load Adjustment Rate	±0.5%
Start Rise Time	1000ms, 100ms/230VAC, 1100ms, 100ms/115VAC
Hold Time	10ms/115VAC, 230VAC
Input Voltage Range	100 ~ 277VAC
Frequency Range	47 ~ 63Hz
Power Factor	PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.9/277VAC, Full load
Total Harmonic Distortion	THD< 20% (@ load ≧50%/115VC,230VAC; @ load ≧75%/277VAC)
Efficiency Vin:115VAC	≧91.56%
Efficiency Vin:230VAC	≧94.63%
AC Current	3.0A
Inrush Current	Cold start 75A(width=350us measured at 50% l peak)/230Vac
Leakage Current	< 1 mA
No Load/Standby Power Consumption	< 4.0W
Over Current Protection	95~110% Constant current limit, load abnormal condition can be removed after automatic recovery
Short Circuit Protection	Burp mode, load abnormal conditions can be removed after automatic recovery
Over Voltage Protection	13~16V
Over Temperature Protection	Turn off the output voltage, restart and resume
Working Temperature	T case=-40 ~ +50℃
Max Case Temperature	T case=+90℃
Working Humidity	20 ~ 95% RH, non-condensing
Storage Temperature, Humidity	-40 ~ +90℃, 10 ~ 95% RH
Temperature Coefficient	±0.03%/℃ (0 ~60℃)
Vibration	10~500Hz, 5G 12min./1 cycle, period for 72 min. each along X,Y,Z axes
Safety Standard	UL8750 & UL1310
Withstand Voltage	I/P-O/P.1.88KVac
Isolation Resistance	I/P-O/P.100MΩ/500VDC/25℃/70%RH
EMC EMISSION	Confirms to FCC

Technical Specifications

Dimming Style	Series	Power	Input voltage	Output voltage & Output current	Size
5 in 1 dimming	MVP	100W	100~277V 50/60Hz	4.16A×2 (12V) 2.08A×2 (24V) 1.38A×2 (36V) 1.04A×2 (48V)	199×103×40mm
		180W		5A×3 (12V)	216×113×40mm
		192W		4A×2 (24V) 2.67A×2 (36V) 2A×2 (48V)	216×113×40mm
		240W		5A×4 (12V)	248×123×40mm
		288W		4A×3 (24V) 2.67A×3 (36V) 2A×3 (48V)	248×123×40mm
		300W		5A×5 (12V)	248×123×40mm
		384W		4A×4 (24V) 2.67A×4 (36V) 2A×4 (48V)	248×123×40mm

Custom labeling, packaging, and cases are available. We provide OEM and ODM services.
