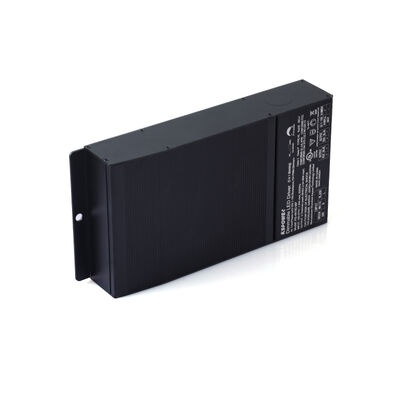

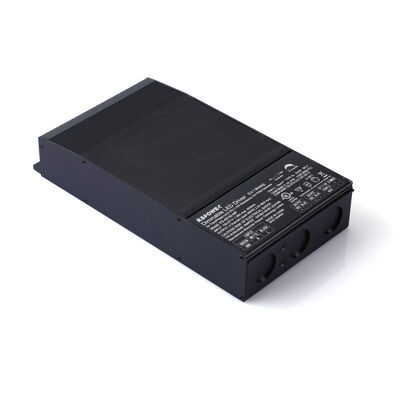

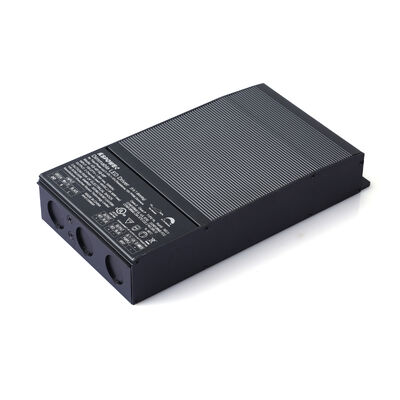

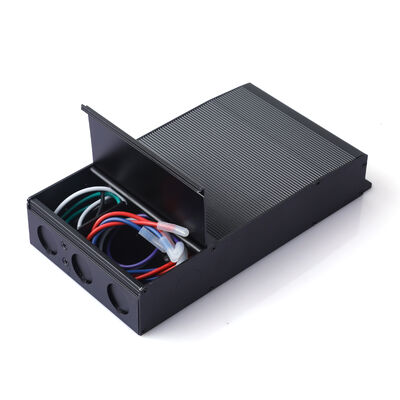

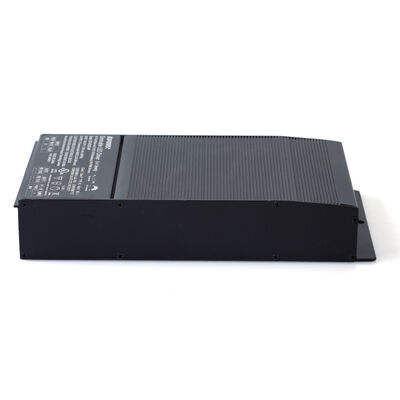

192W 5-in-1 Dimmable LED Transformer with IP65 Rating for Universal Phase Dimming Applications

Brand Name:	KSPOWER
Model Number:	KS-xxx00a-P
MOQ:	1pcs
Price:	$59.6-63.8/pieces
Payment Terms:	T/T
Supply Ability:	30000pcs/monthly

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

UL FCC CE ROHS SAA CLASS 2 CLASS P etc.

Warranty(Year):

5-Year

Lighting Solutions Service:

Lighting And Circuitry Design

Output Power:

400W

Output Type:

PWM Or DC

Input Voltage:

100-277V

Output Frequency:

50/60Hz

Application:

LED Strip Light,Pendants, Linears,Cove Lights

Warranty:

5 Years

Protection:

OCP, OVP, SCP, OTP

IP Rate:

IP65

Efficiency:

≥90%

Output:

12V24V36V48V

Packaging Details:

Small box and Cartons

Highlight:

5-in-1 Dimming LED Transformer

192W Dimmable LED Driver

IP65 Rated Class 2 Power Supply

Product Description

24V/36V/48V 2x96W(192W) Class 2 Universal Phase Dimming LED Transformer

KSPOWER's MP Series combines advanced dimming technology with rugged construction to deliver an industry-leading LED driver solution. With 5-in-1 dimming support—including Triac, ELV, MLV, 0-10V, and PWM/VR—the 2-way 96W design enables maximum flexibility for premium lighting installations. The constant-voltage output options (24V/36V/48V) make it ideal for LED strips, landscape lights, and architectural signage. High power-factor correction (PFC ≥ 0.95), NEMA 3R protection, and UL Class 2 Class P compliance ensure exceptional safety and performance.

Key Features

PWM or Voltage Reduction output Selectable
2-Ways Universal Dimming Functions optional:
- 5 in 1 dimming: TRIAC, ELV, MLV, 0-10V, 1-10V, 10V PWM and potentiometer dimming
- Triac dimming: TRIAC/phase, ELV, MLV dimming
- 4 in 1 dimming: 0-10V, 1-10V, 10V PWM and potentiometer
- Non-dimming
Super compact Aluminum case
UL/cUL CE Class 2 CLASS P FCC RoHS LPS certified
NEMA 3R rated for Indoor or Outdoor Use
Switch to dual-color temperature LED Strips with 100%-0.01% dimming flicker-free
Auto-Reset Protection for input/output overvoltage protection, input/output overcurrent protection, over temperature protection, over power protection and short circuit protection

Specifications

Model	KS-24192a-M#	KS-36192a-M#	KS-48192a-M#
Output Voltage	24V	36V	48V
Rated current×Channel	4.0A×2	2.67A×2	2.0A×2
Rated Power	192W	192W	192W
Ripple&Noise(Max)	250mVp-p	250mVp-p	250mVp-p
Voltage Accuracy	±2.0%	±2.0%	±2.0%
Linear Adjustment Rate	±0.5%	±0.5%	±0.5%
Load Adjustment Rate	±0.5%	±0.5%	±0.5%
Start Rise Time	1000ms, 100ms/230VAC, 1100ms, 100ms/115VAC
Hold Time	10ms/115VAC, 230VAC
Input Voltage Range	100 ~ 277VAC
Frequency Range	47 ~ 63Hz
Power Factor	PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.9/277VAC, Full load
Total Harmonic Distortion	THD< 20% (@ load ≧50%/115VC,230VAC; @ load ≧75%/277VAC)
Efficiency Vin:115VAC	≧91.56%	≧92.06%	≧92.56%
Efficiency Vin:230VAC	≧94.63%	≧95.13%	≧95.63%
AC Current	2.35A
Inrush Current	Cold start 75A(width=350us measured at 50% l peak)/230Vac
Leakage Current	< 1 mA
No Load/Standby Power Consumption	< 4.5W
Over Current Protection	95~110% Constant current limit, load abnormal condition can be removed after automatic recovery
Short Circuit Protection	Burp mode, load abnormal conditions can be removed after automatic recovery
Over Voltage Protection	26~32V	39~47V	52~63V
Over Temperature Protection	Turn off the output voltage, restart and resume
Working Temperature	T case=-40 ~ +50℃
Max Case Temperature	T case=+90℃
Working Humidity	20 ~ 95% RH, non-condensing
Storage Temperature,Humidity	-40 ~ +90℃, 10 ~ 95% RH
Temperature Coefficient	±0.03%/℃ (0 ~60℃)
Vibration	10~500Hz, 5G 12min./1 cycle, period for 72 min. each along X,Y,Z axes
Safety Standard	UL8750 & UL1310
Withstand Voltage	I/P-O/P.1.88KVac
Isolation Resistance	I/P-O/P.100MΩ/500VDC/25℃/70%RH
EMC EMISSION	Confirms to FCC

Technical Specifications

Dimming Style	Series	Power	Input voltage	Output voltage& Output current				Size
Dimming Style	Series	Power	Input voltage	12V	24V	36V	48V	Size
5 in 1 dimming	MP	40W	100~277V 50/60Hz	3.3A	2.5A	1.1A	0.83A	19910340mm
		60W	100~277V 50/60Hz	5A	2.5A	1.67A	1.25A	19910340mm
		80W	100~277V 50/60Hz	6.67A	3.33A	2.22A	1.67A	19910340mm
		96W	100~277V 50/60Hz	8A	4A	2.66A	2A	19910340mm
		100W	100~277V 50/60Hz	8.33A	4.16A	2.78A	2.08A	19910340mm
		120W	100~277V 50/60Hz	10A	5A	3.33A	2.5A	21611340mm
		150W	100~277V 50/60Hz	12.5A	6.25A	4.16A	3.13A	21611340mm
		200W	100~277V 50/60Hz	16.67A	8.33A	5.55A	4.16A	21611340mm
		240W	100~277V 50/60Hz	20A	10A	6.66A	5A	24812340mm
		300W	100~277V 50/60Hz	25A	12.5A	8.33A	6.25A	24812340mm
		360W	100~277V 50/60Hz	30A	15A	10A	7.5A	24812340mm
		400W	100~277V 50/60Hz	/	16.67A	11.11A	8.33A	24812340mm

Custom labeling, packaging, and cases are available. We provide OEM and ODM services.
