UL KC PSE CE Listed 12.6V 5A Lithium Battery Charger with CC-CV Charging Mode

Brand Name:	KSPOWER
Model Number:	KS65DU
MOQ:	1pieces
Price:	The price is negotiable
Payment Terms:	T/T
Supply Ability:	300000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL FCC CE GS KC PSE CE UKCA RoHS etc

Material:

PC Fireproof Material

Protection:

Short Circuit Protection, Ovp, OTP, Ocp, Over-charging, Overcurrent, Overvoltage

Function:

Charging

Input:

100-240VAC

Output Voltage:

8.4V/12.6V/16.8V/21V/25.2V/29.4V/33.6V/37.8V

Power:

67W-75W

Type:

Desktop Style

Charging Mode:

CC-CV

Charging Indicator:

Charging In Red, Fully Charged In Green

Certifications:

UL/CE/GS/SAA/KC/CB/FCC/C-TICK

AC Plugs:

US EU KR AU JP CN Etc.

Warranty:

3 Years

Packaging Details:

Small box and Carton

Highlight:

SAA Certified Lithium Battery Charger

75W 21V Lithium Battery Charger

Short Circuit Protection 2A battery charger

Product Description

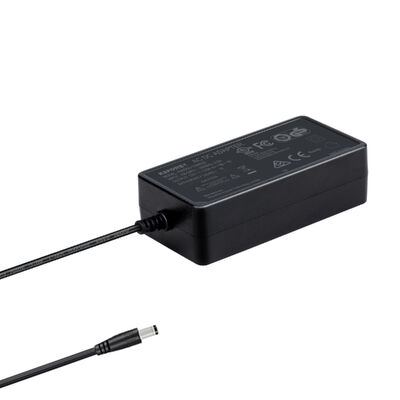

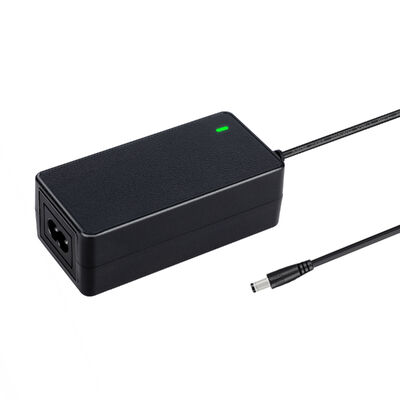

UL KC PSE CE Listed 3S 12V 12.6V 5A Lithium Ion Battery Charger Module

This battery charger is a highly reliable CC + CV single-output AC/DC power adapter designed specifically for 3S Li-ion batteries. Available with output current options ranging from 1A to 5.0A, it features fixed AC plugs in EU, KR, US, AU, UK, and CN types with Class II rating (without earth pin). The universal AC input accepts 100-240V voltage range and achieves Level VI energy efficiency with low no-load power consumption below 0.1W. Comprehensive safety protections include over current, over voltage, and short circuit protection.

Key Features

Desktop style charger for Li-ion batteries (lithium iron and lithium manganese)
Constant voltage and constant current charging mode
Universal AC input with full range compatibility
Level VI energy efficiency rating
Comprehensive protections: Short circuit, over voltage, over current
Class II power unit (without earth pin)
Class 2 power units certification
LPS (limited power source) compliant
Compact size with fully enclosed plastic case
100% full load burn-in tested
3-year warranty

Why choose us?

*Constant current and constant voltage charging mode,with two-color indicator light

*Various styles:wall-mounted type,removable ac plug type,desktop type,two-end outlet style,Housing with fixing screw hole,etc

*High efficiency and energy saving,meeting six energy efficiency standaeds

*Provide OEM/ODM services,LOGO/color/packaging/shell/connector/wire can be customized

*Global certifications:UL/cUL,ICES,FCC,GS,CCC,CQC,KC,PSE,UKCA,RCM,RoHS,CB etc

*Input:100-240V/220-240V,50/60Hz

*Output:5V-48V,5W-200W

Technical Specifications

Product Name	Li-ion Battery Charger
Model No	KS65DU
AC Input	100-240V, 50/60Hz
AC Input Current	5.0A Max
DC Output	12.6V
Charging Mode	Three Stage Mode Smart Charger (CC-CV-TRICKLE)
LED Indicator	Red during charging, Green when fully charged (switches when charging current drops below 0.2A)
Efficiency	Higher than 89% at 100-240Vac input with full load output
No-Load Input Power	Less than 0.5W at 115Vac or 230Vac output no load
Leakage Current	≤0.25mA/240V for Class II products; ≤0.75mA/240V for Class I products
Protections	Short circuit, over voltage, over current, over temperature, timing, switching off, recharger protection
Applications	E-bikes, e-balance cars, e-scooters, e-surfboards, UAVs, UPS systems, e-four-wheelers, electric tools, intelligent household appliances
