12V 24V 48V 2.5A Lithium Battery Charger with PC Fireproof Material and Short Circuit Protection for Scooters Ebike
12V 24V 48V 2.5A Lithium Battery Charger with PC Fireproof Material and Short Circuit Protection for Scooters Ebike
Basic Properties
country of origin
China
brand name
KSPOWER
certificate
UL/cUL CE GS FCC KC KCC SAA RCM UKCA CCC CB RoHS ...
product model
KS150DU
Trading Properties
moq
100 pieces
unit price
The price is negotiable
payment method
T/T
supply capacity
200000pcs/month
Product Summary
12V 24V 48V 2.5A Lithium Battery Charger for Scooters & Ebikes This highly reliable CC + CV single-output AC/DC power adapter is specifically designed for 3S Li-ion batteries. Available with output current options from 1A to 5.0A, it features fixed AC plugs in EU, KR, US, AU, UK, and CN types with ...
Product Details
Highlight:
ODM Lithium Battery Charger
,Constant Current Lithium Battery Charger
,8.4V 4A Desktop Battery Charger
material:
PC Fireproof Material
protection:
Short Circuit Protection, Ovp, OTP, Ocp, Over-charging, Overcurrent, Overvoltage
input:
100-240VAC
output power:
105W-150W
Output Voltage:
12.6V/16.8V/21V/25.2V/29.4V/33.6V/37.8V/48V
Power:
105W-150W
Type:
Desktop Style
Charging mode:
CC-CV
Charging indicator:
Charging In Red, Fully Charged In Green
Certifications:
UL/CE/GS/SAA/KC/CB/FCC/C-TICK
Warranty:
3 Years
AC Inlet:
C6/C8/C14
Product Description

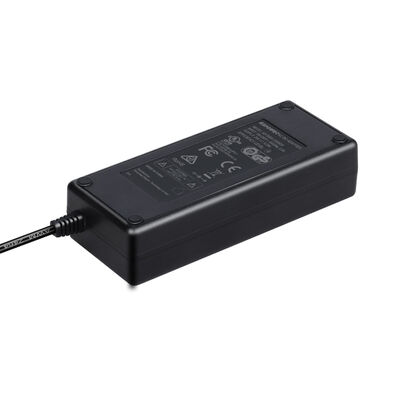

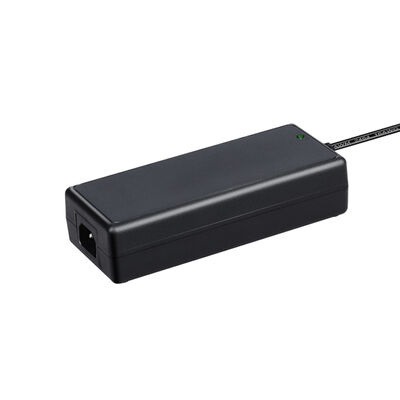

12V 24V 48V 2.5A Lithium Battery Charger for Scooters & Ebikes
This highly reliable CC + CV single-output AC/DC power adapter is specifically designed for 3S Li-ion batteries. Available with output current options from 1A to 5.0A, it features fixed AC plugs in EU, KR, US, AU, UK, and CN types with Class II rating (without earth pin). The universal AC input accepts 100-240V voltage range and achieves Level VI energy efficiency with low no-load power consumption below 0.2W. Comprehensive safety protections include over current, over voltage, and short circuit protection.
Key Features
- Desktop style charger for Li-ion batteries (lithium iron and lithium manganese)
- Constant voltage and constant current charging mode
- Universal AC input with full range compatibility
- Level VI energy efficiency rating

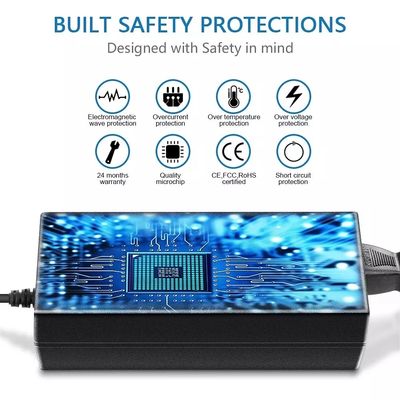

- Comprehensive protections: Short circuit, over voltage, over current
- Class II power unit (without earth pin)
- Class 2 power units certification
- LPS (limited power source) compliant
- Compact size with fully enclosed plastic case
- 100% full load burn-in tested
- 3-year warranty
Technical Specifications
| Product Name | Li-ion Battery Charger |
|---|---|
| Model No | KS150DU |
| AC Input | 100-240V, 50/60Hz |
| AC Input Current | 5.0A Max |
| DC Output | 48V |
| Charging Mode | Three Stage Mode Smart Charger (CC-CV-TRICKLE) |
| LED Indicator | Red during charging, Green when fully charged (switches when charging current drops below 0.2A) |
| Efficiency | Higher than 89% at 100-240Vac input with full load output |
| No-Load Input Power | Less than 0.5W at 115Vac or 230Vac output no load |
| Leakage Current | ≤0.25mA/240V for Class II products; ≤0.75mA/240V for Class I products |
| Protections | Short circuit, over voltage, over current, over temperature, timing, switching off, recharger protection |
| Applications | E-bikes, e-balance cars, e-scooters, e-surfboards, UAVs, UPS systems, e-four-wheelers, electric tools, intelligent household appliances |
Why choose us?
.Constant current and constant voltage charging mode,with two-color indicator light
.Various styles:wall-mounted type,removable ac plug type,desktop type,two-end outlet style,Housing with fixing screw hole,etc
.High efficiency and energy saving,meeting six energy efficiency standaeds
.Provide OEM/ODM services,LOGO/color/packaging/shell/connector/wire can be customized
.Global certifications:UL/cUL,ICES,FCC,GS,CCC,CQC,KC,PSE,UKCA,RCM,RoHS,CB etc
.Input:100-240V/220-240V,50/60Hz
.Output:5V-48V,5W-200W
Product Images
Applications
