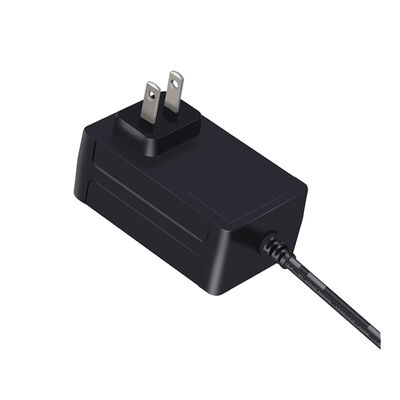

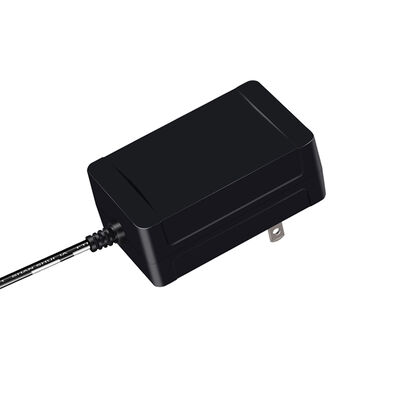

Wall Mount Lithium Battery Charger with 16.8V 25.2V Output, PC Fireproof Material

Brand Name:	KSPOWER
Model Number:	KS39DU-xxxyyyy
MOQ:	1 pieces
Price:	The price is negotiable
Payment Terms:	T/T
Supply Ability:	300000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL CE PSE ROHS

Usage:

Universal

Material:

PC Fireproof Material

Protection:

OCP, OVP, OTP

Function:

Charging

Input:

100-240VAC

Output Power:

16.8W

Power:

16.8W-50.4W

DC Connector:

OD5.5*ID2.1*L10mm Or Custom

Efficiency:

Over 88%

AC Plugs:

US EU KR AU JP CN Etc.

Certifications:

UL/CE/GS/SAA/KC/CB/FCC/C-TICK

Item:

Battery Charger

Warranty:

3 Years

Packaging Details:

Small box and Carton

Highlight:

Lithium Battery Wall Mount Battery Charger

Type C Wall Mount Battery Charger

Type C Li Ion Battery Charger

Product Description

Wall Mount 16.8V 25.2V Lithium Ion Battery Charger

This highly reliable wall-mounted battery charger features CC + CV technology designed specifically for 4S Li-ion batteries. Available with output current options from 1A to 3.5A, this safety-certified charger comes with fixed AC plugs (EU/KR/US/AU/UK/CN types) and is Class II rated without earth pin. It accepts universal AC input voltage range of 100-240V and meets Level VI energy efficiency standards with low no-load power consumption below 0.1W. Comprehensive safety protections include over current, over voltage, and short circuit protection.

Key Features

Wall mount style charger for Li-ion batteries (lithium iron and lithium manganese)
Constant voltage and constant current charging mode
Universal AC input with full range compatibility
Level VI energy efficiency certification
Comprehensive protections: Short circuit, over voltage, over current
Class II power rating (without earth pin)
Class 2 power units compliance
LPS (limited power source) certified
Compact size with fully enclosed plastic case
100% full load burn-in tested
3-year manufacturer warranty

Why choose us?

*Constant current and constant voltage charging mode,with two-color indicator light

*Various styles:wall-mounted type,removable ac plug type,desktop type,two-end outlet style,Housing with fixing screw hole,etc

*High efficiency and energy saving,meeting six energy efficiency standards

*Provide OEM/ODM services,LOGO/color/packaging/shell/connector/wire can be customized

*Global certifications:UL/cUL,ICES,FCC,GS,CCC,CQC,KC,PSE,UKCA,RCM,RoHS,CB etc

*Input: 100-240V/220V-240V,50/60Hz

.Output:5V-48V,5W-200W

Technical Specifications

Product Name	Li-ion Battery Charger
Model No	KS39DU
Type	Wall Plug
AC Input	100-240V, 50/60Hz
AC Input Current	2.0A Max
DC Output	16.8V, 25.2V
Charging Mode	Three Stage Smart Charger (CC-CV-TRICKLE)
LED Indicator	Charging: Red \| Fully Charged: Green \| Red to Green transition when charging current drops below 0.2A
Efficiency	Higher than 89% at 100-240Vac input with full load output
No-Load Input Power	Less than 0.5W at 115Vac or 230Vac input with no load
Leakage Current	≤0.25mA/240V for Class II product; ≤0.75mA/240V for Class I product
Protections	Short circuit, over voltage, over current, over temperature, timing, switching off, and recharger protection
Applications	E-bikes, e-balance cars, e-scooters, e-surfboards, UAVs, UPS systems, e-four-wheelers, electric tools, intelligent household appliances

Adapter DC 2A Type C Power Board E-Bike Charger

Applications
