19V 2.5A Wall Power Adapter with Universal Compatibility and Multiple Protections for Portable Monitors

Brand Name:	KSPOWER
Model Number:	KS65DU-xxxyyyy
MOQ:	1pieces
Price:	$3.26-$3.92/piece
Payment Terms:	T/T
Supply Ability:	300000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

UL CLASS 2 /CE/GS/SAA/KC/CB/FCC/C-TICK/PAHS/ROHS

Output Type:

Single Phase

Input Voltage:

100-240V

Output Frequency:

50/60HZ

Output Voltage:

5V6V8V9V12V15V18V19V20V24V30V36V48V

Protection:

OVP, OCP, SCP, OTP, OPP

AC Plugs:

US EU KR AU JP CN Etc.

DC Jack:

5.5*2.1/5.5*2.5mm Or Custom

Warranty:

Warranty

Material:

100% PC

Type:

Wall-mounted

Packaging Details:

Small box and Carton

Highlight:

36W AC DC Switching Power Adapter

60Hz AC DC Switching Power Adapter

Wall Mounted 12V 3A Power Adapter

Product Description

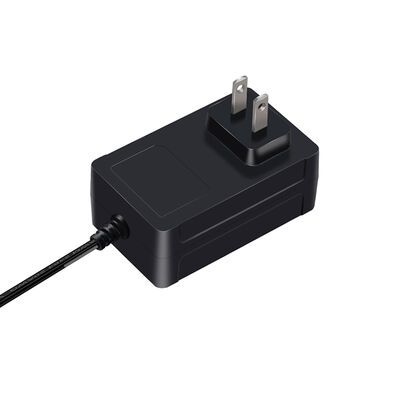

19V 2.5A Wall Adapter for Portable Monitor

This 19V 2.5A wall adapter provides reliable power for portable monitors and various electronic devices with comprehensive safety features and global certifications.

Technical Specifications

Output Mode: Constant voltage

Input Voltage: AC100-240Vac, 50/60Hz or 220-240Vac, 50/60Hz

Output Range: DC5V-36V, 0.01A-4.0A, 48W Max

Protections: Short circuit, over current, over voltage

Energy Efficiency: DOE, CEC, ERPII MEPS GEMS

Operating Environment: 0-40℃, 5%-95% RH

Certifications: UL, cUL, FCC, GS, CCC, CQC, KC, PSE, UKCA, SAA, C-tick, RCM, RoHS, CB

Regional Specifications

Country	Max. Watt	Voltage Range	Current Range	Safety Standard
US	48W	DC5-36V	0.01A-4.0A	EN62368/UL 1310
EU	48W	DC5-36V	0.01A-4.0A	EN62368
UK	48W	DC5-36V	0.01A-4.0A	EN62368
AU	48W	DC5-36V	0.01A-4.0A	EN62368
KR	48W	DC5-36V	0.01A-4.0A	EN62368
JP	48W	DC5-36V	0.01A-4.0A	EN62368
CN	48W	DC5-36V	0.01A-4.0A	CCC-GB 4943.1-2022/CQC-GB 4343.1-2018;GB/T 4343.2-2020

Key Features

Single channel constant voltage power supply
100% full load burn-in testing
Passes LPS (limited power source) requirements
3-year comprehensive warranty
Class II power design (without earth pin)

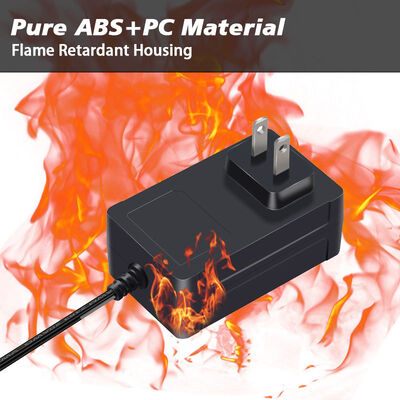

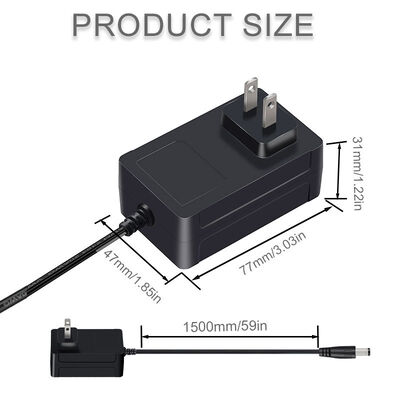

Compact size with fully enclosed PC plastic case
Fast startup time: <3 seconds
High energy efficiency: DOE/CEC/ErP/MEPS/NRcan Level VI

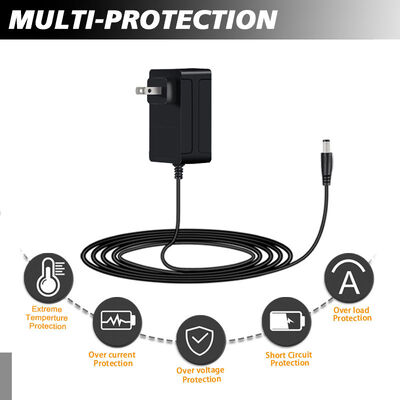

Automatic safety protections for over current, over load, and short circuit

Compatible AC Plugs

US, EU, UK, AU, Korea, Japan, China, Brazil, India, Argentina and other regional standards

Available DC Connectors

5.5*2.1mm, 5.5*2.5mm, 4.0*1.7mm, 3.5*1.35mm, 2.5*0.7mm, XLR, Cigarette lighter, and other customizable options

Applications

Ideal for electric grill ovens, LED strips, audio amplifiers, wireless routers, and audio/video power supplies.

Note: Not waterproof - indoor use only.

Customization Services

We offer comprehensive OEM and ODM services with custom labeling, packaging, and case design options available to meet your specific requirements.
