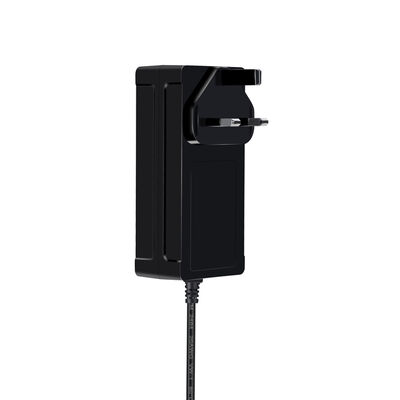

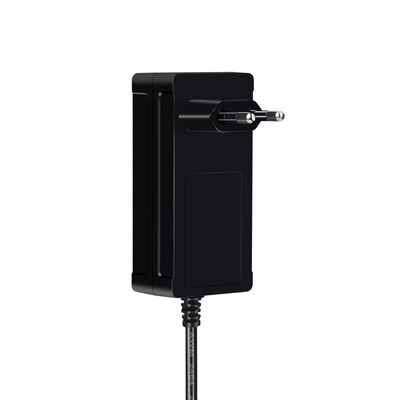

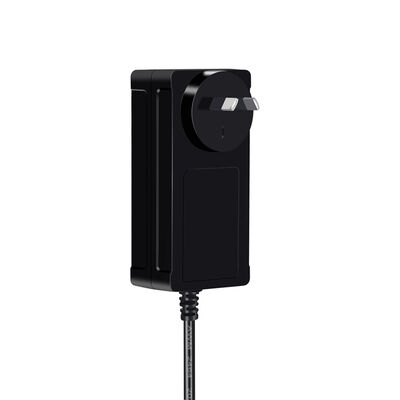

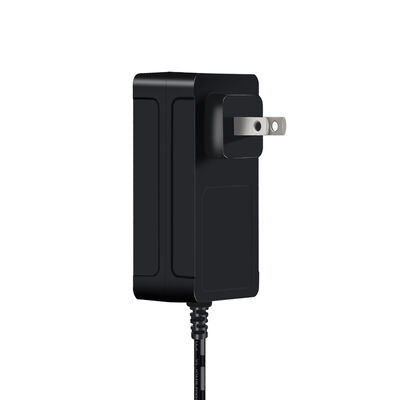

72W Max UL CE Certified Wall Plug Power Brick with 3 Years Warranty
72W Max UL CE Certified Wall Plug Power Brick with 3 Years Warranty
Basic Properties
country of origin
Guangdong, China
brand name
KSPOWER
certificate
UL cUL FCC CE GS KC PSE SAA RoHS CB UKCA etc
product model
KS75DU-xxxyyyy
Trading Properties
moq
100 pieces
unit price
The price is negotiable
payment method
T/T
supply capacity
300000pcs/month
Product Summary
72W Max Wall Plug Power Brick High-performance 72W wall plug power adapter designed for reliable operation across multiple regions and applications. Technical Specifications Output Mode: Constant voltage modesInput: AC100-240Vac, 50/60Hz or 220-240Vac, 50/60HzOutput: DC5V-36V, 0.01A-3A, 24W ...
Product Details
Highlight:
Wall Mounted 12V 1A Power Adapter
,Coffee Maker 12V 1A Power Adapter
,Water Purifier Pump 12v 1a power supply
Output Type:
DC
Connection:
Plug In
Output:
9V12V15V19V20V24V36V48V
Input:
AC 100-240v 50-60hz
Certificate:
UL CE KC KCC GS SAA RCM CB FCC PSE CCC RoHS EPR
Color:
White Black Customized
Efficiency:
DOE VI, CEC VI
Warranty:
3 Years
AC plug:
UK US AU EU CN KR JP
Application:
Purifier Pump, LED Strips, Audio Amplifiers, Wireless Routers,etc
Product Description
72W Max Wall Plug Power Brick
High-performance 72W wall plug power adapter designed for reliable operation across multiple regions and applications.
Technical Specifications
Output Mode: Constant voltage modes
Input: AC100-240Vac, 50/60Hz or 220-240Vac, 50/60Hz
Output: DC5V-36V, 0.01A-3A, 24W Max
Protections: Short circuit, current, and voltage protection
Energy Efficiency: DOE, CEC, ERPII MEPS GEMS
Working Environment: 0-40℃, 5%-95% RH
Certifications: UL, cUL, FCC, GS, CCC, CQC, KC, PSE, UKCA, SAA, C-tick, RCM, RoHS, CB
Input: AC100-240Vac, 50/60Hz or 220-240Vac, 50/60Hz
Output: DC5V-36V, 0.01A-3A, 24W Max
Protections: Short circuit, current, and voltage protection
Energy Efficiency: DOE, CEC, ERPII MEPS GEMS
Working Environment: 0-40℃, 5%-95% RH
Certifications: UL, cUL, FCC, GS, CCC, CQC, KC, PSE, UKCA, SAA, C-tick, RCM, RoHS, CB
Regional Specifications
| Country | Max. Watt | Voltage Range | Current Range | Safety Standard |
|---|---|---|---|---|
| US | 72W | DC5-36V | 0.01A-5.0A | EN62368/UL 1310 |
| EU | 72W | DC5-36V | 0.01A-5.0A | EN62368 |
| UK | 72W | DC5-36V | 0.01A-5.0A | EN62368 |
| AU | 72W | DC5-36V | 0.01A-5.0A | EN62368 |
| KR | 72W | DC5-36V | 0.01A-5.0A | EN62368 |
| JP | 72W | DC5-36V | 0.01A-5.0A | EN62368 |
| CN | 72W | DC5-36V | 0.01A-5.0A | CCC-GB 4943.1-2022/CQC-GB 4343.1-2018;GB/T 4343.2-2020 |
Key Features
- Single channel & Constant Voltage power supply
- 100% Full load burn-in test
- Pass LPS (limited power source)
- 3 Years Warranty
- Class II power (without earth pin)
- Compact size, fully enclosed PC plastic case
- Starting time: <3 s
- Energy Efficiency: DOE/CEC/ErP/MEPS/NRcan Level VI
- Safety automatic protections for over current, over load and short circuit
FQA
Q: What is the max power of this adapter?
A: Max 24W, constant‑voltage output DC 5‑36V, 0.01‑3A, single‑channel.
Q: What certifications do you have?
A: UL/cUL, FCC, GS, UKCA, KC, PSE, CCC, SAA, RCM, CB, RoHS. Complies with DOE, ErP II, MEPS, GEMS, also passes LPS requirement.
Q: Is this Class‑II power supply? Ground pin needed?
A: Yes, Class II power, no earth pin required.
Q: What plugs can I get?
A: AC plugs for US, EU, UK, AU, KR, JP, CN, Brazil, India etc.
Various DC tips are optional & customizable: 5.52.1, 5.52.5, XLR.
Q: Does it have safety protection?
A: Built‑in short‑circuit, over‑current, over‑voltage & over‑load auto protections.
Q: Where can this adapter be applied?
A: For LED strips, router, amplifier, audio‑video device, electric grill oven and other indoor electronics. Indoor use only, not waterproof.
Q: What is operating condition?
A: Working temp: 0‑40℃, humidity: 5%‑95% RH.
Q: Do you test goods before shipping?
A: 100% full‑load burn‑in test for every unit, start‑up time＜3s.
Q: How long is warranty?
A: 3‑year warranty.
Q: Support OEM & ODM?
A: Yes, custom label, packaging and housing are available.
Q: Input voltage range?
A: AC 100‑240Vac wide voltage for global markets.
Why choose us?
• Global Full Certifications
UL/cUL, FCC, UKCA, KC, PSE, CCC, RCM, CB, RoHS approved. Meet DOE / ErP II / MEPS energy‑efficiency standards, pass LPS, ready for worldwide sales.
UL/cUL, FCC, UKCA, KC, PSE, CCC, RCM, CB, RoHS approved. Meet DOE / ErP II / MEPS energy‑efficiency standards, pass LPS, ready for worldwide sales.
• Strict Quality Control
100% full‑load burn‑in testing. Multiple automatic safety protections. Class‑II double‑insulated compact PC enclosed housing.
100% full‑load burn‑in testing. Multiple automatic safety protections. Class‑II double‑insulated compact PC enclosed housing.
• Wide Global Compatibility
AC 100‑240Vac wide input. Multi‑country AC plugs & customizable DC tips. 5‑36V 24W max output, fits various indoor electronic equipment.
AC 100‑240Vac wide input. Multi‑country AC plugs & customizable DC tips. 5‑36V 24W max output, fits various indoor electronic equipment.
• Flexible OEM & ODM•
• Custom label, package and casing to build your own brand.
• Custom label, package and casing to build your own brand.
Compatible AC Plugs
US, EU, UK, AU, Korea, Japan, China, Brazil, India, Argentina and others
Available DC Plugs
5.5*2.1/5.5*2.5/4.0*1.7/3.5*1.35/2.5*0.7/XLR/
Applications
The AC adapter is suitable for electric grill oven, LED strips, audio amplifiers, wireless routers, audio and video power supplies, etc. Not waterproof, indoor use only.
Customization Services
We provide OEM and ODM services with custom labeling, packaging, and case options available.
