5 In 1 Dimmable Driver
Created with Pixso.

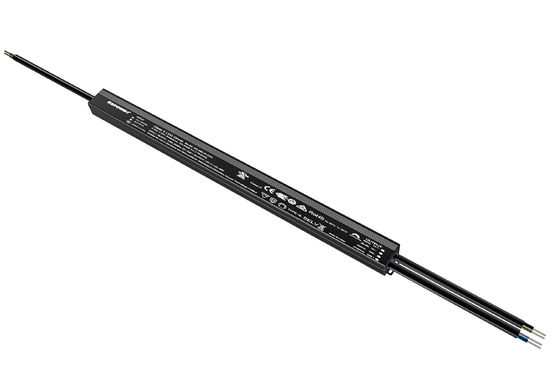

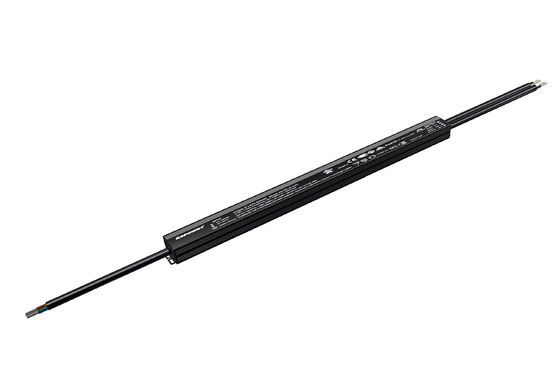

Ultra Slim Constant Voltage LED Driver with Universal Input for Landscape Lighting

Ultra Slim Constant Voltage LED Driver with Universal Input for Landscape Lighting

Brand Name: KSPOWER
Model Number: KS-96LW-24P
MOQ: 2 pieces
Price: $15.60-32.60/pieces
Payment Terms: T/T
Supply Ability: 100000 Piece/Pieces per Month
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
UL cUL CE Class P ENEC Gs TYPE HL...
Warranty(Year):
5-Year
Lighting Solutions Service:
Lighting And Circuitry Design
Output Power:
30W 60W 100W
Output Type:
PWM
Input Voltage:
100-277V
Output Frequency:
50/60Hz
Output Current:
0.62A-8.33A
Product Name:
12V 24V 36V 48V Low Voltage Landscape Lighting Transformer
Application:
Street Light, Tunnel Light, Wall Lamp,Spot Light
Warranty:
5 Years
Output Mode:
Pwm Output
Efficiency:
95%
Output:
12V 24V 36V 48V
Material:
Aluminium Case
IP Rate:
IP65; IP67
Dimming Mode:
5 In 1 Dimmable (0-10V,1-10V,TRIAC,PWM,resistance)
Packaging Details:
Small box and Carton
Highlight:

60W LED Lighting Transformer

,

UL Certified LED Lighting Transformer

,

Ultra Slim LED Light Driver

Product Description
Waterproof Dimmable Ultra Slim LED Driver 96W, 24V for Landscape & Garden Lighting
Product Description
The KSPOWER - LP series 5 in 1 dimmable LED driver is a constant voltage solution with single channel operation. It accepts universal AC input voltage ranging from 100V to 277V, with optional output voltages of 12V, 24V, 36V, or 48V. Featuring high operating efficiency and PFC function, this Class P dimming power supply uses a low-profile metal aluminum case suitable for dry and damp environments, making it ideal for LED strips, signage, billboards, and landscape lighting.
Ultra Slim Constant Voltage LED Driver with Universal Input for Landscape Lighting 0
Key Features
  • Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
  • Single Channel & Constant Voltage mode
  • Output Voltage: 12V/24V/36V/48V
  • Driver Type: Class 2 Class P
  • Enclosure: LISTED Enclosure with input and output wire
  • Dimming: Triac/Phase-cut, PWM, 0/1-10V or MLV/ELV Resistance Dimmable Available
  • Environmental: Dry and Damp
  • Wiring Compartments with Knock-Outs for Clean and Easy Installation
  • Current Limiting Overload Protection
  • Flicker-Free Operation
  • Smooth Ripple Free Output Voltage
  • IP67 Rated Enclosure for Indoor and Outdoor Use
  • 5-Year Warranty
  • UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL
Technical Specifications
Dimming Type Series Power Model (xx=output voltage) Output Voltage & Current Input Voltage Size
5 in 1 dimming LP 30W KS-30LW-xxP 12V: 2.5A
24V: 1.25A
36V: 0.83A
48V: 0.62A		 100~277V
50/60Hz		 270*32*24.5mm
40W KS-40LW-xxP 12V: 3.33A
24V: 1.66A
36V: 1.11A
48V: 0.83A		 270*32*24.5mm
60W KS-60LW-xxP 12V: 5A
24V: 2.5A
36V: 1.67A
48V: 1.25A		 310*32*24.5mm
80W KS-80LW-xxP 12V: 6.66A
24V: 3.33A
36V: 2.22A
48V: 1.66A		 310*32*24.5mm
96W KS-96LW-24P 24V: 4A 355*32*24.5mm
100W KS-100LW-xxP 12V: 8.33A
24V: 4.16A
36V: 2.78A
48V: 2.08A		 100~277V
50/60Hz		 355*32*24.5mm
Note: Custom labeling, packaging, and cases are available. OEM and ODM services provided.
