36W Output Wall Power Adapter with 100-240Vac Input and 3 Years Warranty for Reliable AC DC Power Supply

Brand Name:	KSPOWER
Model Number:	KS39DU-xxxyyyy
MOQ:	1pieces
Price:	$2.98-3.56/piece
Payment Terms:	T/T
Supply Ability:	300000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

UL CLASS 2 /CE/GS/SAA/KC/CB/FCC/C-TICK/PAHS/ROHS

Output Type:

Single Phase

Input Voltage:

100-240Vac

Output Voltage:

9V12V15V19V20V24V36V48V

Protection:

OVP, OCP, SCP, OTP, OPP

AC Plugs:

US EU KR AU JP CN Etc.

DC Jack:

5.5*2.1/5.5*2.5mm Or Custom

Warranty:

3 Years

Material:

100% PC

Type:

Constant Voltage

Packaging Details:

Small box and Carton

Highlight:

Vi Certified AC DC Power Adapter

Single Supply AC DC Power Adapter

Single Supply Universal Wall Adapter

Product Description

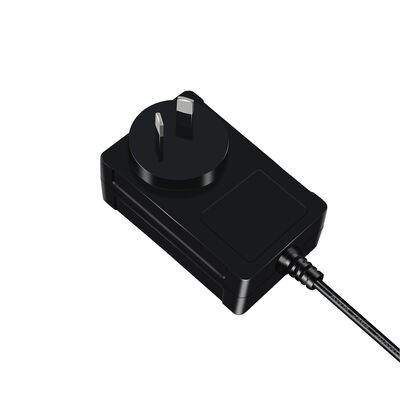

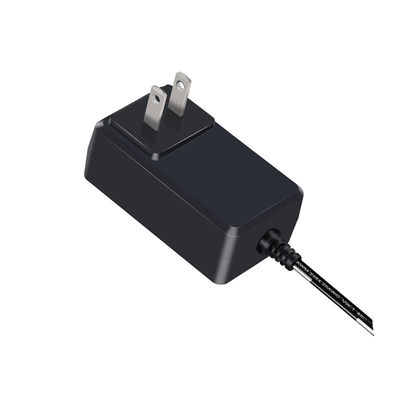

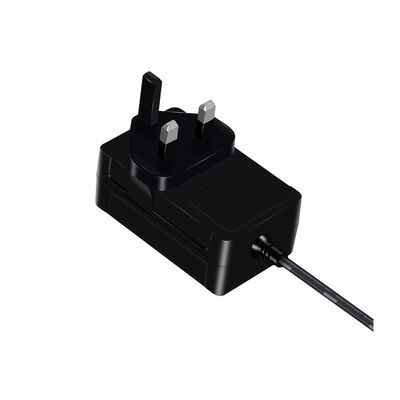

36W Wall Plug-in Power Adapter

36W Desktop Wall Plug-in Power Adapter designed for reliable performance across various applications.

Technical Specifications

Output Mode: Constant voltage
Input: AC100-240Vac, 50/60Hz or 220-240Vac, 50/60Hz
Output: DC5V-36V, 0.01A-4A, 48W Max
Protections: Short circuit, over current, over voltage
Energy Efficiency: DOE, CEC, ERPII MEPS GEMS
Working Environment: 0-40℃, 5%-95% RH
Certifications: UL, cUL, FCC, GS, CCC, CQC, KC, PSE, UKCA, SAA, C-tick, RCM, RoHS, CB

Regional Specifications

Country	Max. Watt	Voltage Range	Current Range	Safety Standard
US	48W	DC5-36V	0.01A-4.0A	EN62368/UL 1310
EU	48W	DC5-36V	0.01A-4.0A	EN62368
UK	48W	DC5-36V	0.01A-4.0A	EN62368
AU	48W	DC5-36V	0.01A-4.0A	EN62368
KR	48W	DC5-36V	0.01A-4.0A	EN62368
JP	48W	DC5-36V	0.01A-4.0A	EN62368
CN	48W	DC5-36V	0.01A-4.0A	CCC-GB 4943.1-2022/CQC-GB 4343.1-2018;GB/T 4343.2-2020

Key Features

Single channel & Constant Voltage power supply
100% Full load burn-in test
Pass LPS (limited power source)
3 Years Warranty
Class II power (without earth pin)
Compact size, fully enclosed PC plastic case
Starting time: <3 seconds
Energy Efficiency: DOE/CEC/ErP/MEPS/NRcan Level VI
Safety automatic protections for over current, over load and short circuit

Compatible AC Plugs

US, EU, UK, AU, Korea, Japan, China, Brazil, India, Argentina and others

Available DC Plugs

5.5*2.1/5.5*2.5/4.0*1.7/3.5*1.35/2.5*0.7/XLR/Cigarette lighter etc (Customizable)

Applications

The AC adapter is suitable for electric grill oven, LED strips, audio amplifiers, wireless routers, audio and video power supplies, etc. Not waterproof, indoor use only.

Customization Services

We provide OEM and ODM services with custom labeling, packaging, and case options available.
