5 In 1 Dimmable Driver
Created with Pixso.

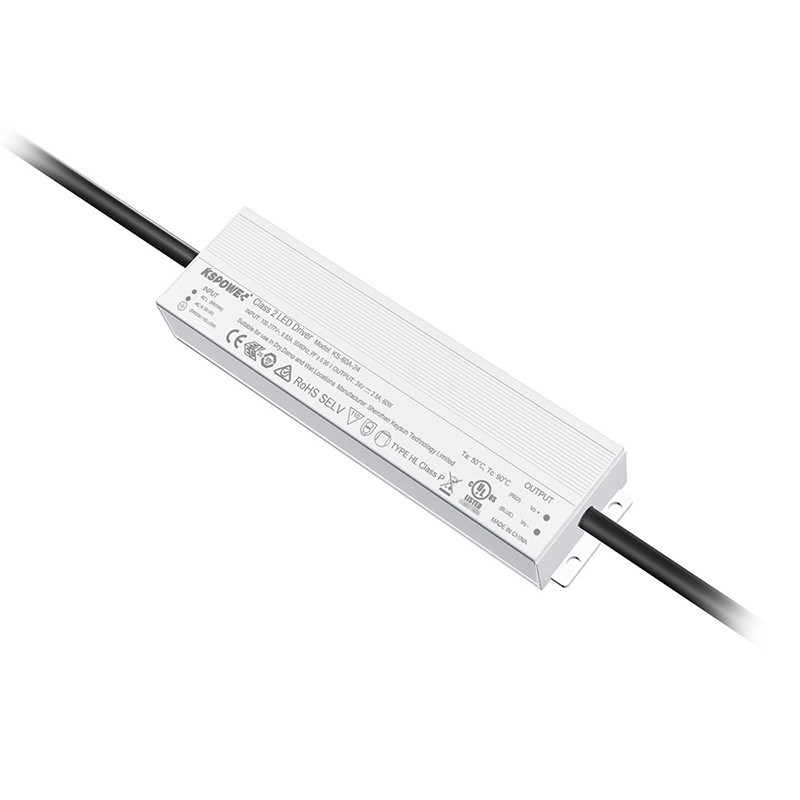

24V100W LED Pool Light Transformer with AC 100V-277V Input and 5-Years Warranty Dimmable LED Driver

24V100W LED Pool Light Transformer with AC 100V-277V Input and 5-Years Warranty Dimmable LED Driver

Brand Name: KSPOWER
Model Number: KS-100A-xxP
MOQ: 10 pieces
Price: The price is negotiable
Payment Terms: T/T
Supply Ability: 300000/monthly
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
UL cUL CE Class 2 Class P ENEC Gs TYPE HL...
Warranty(Year):
5-Year
Color:
Black, Silver
Current:
4.16A
Lighting Solutions Service:
Lighting And Circuitry Design
Input Voltage(V):
100V-277VAC
Application:
Street Light, Tunnel Light, Wall Lamp,Spot Light
IP Rate:
IP65,IP67
Material:
Aluminium Case
Warranty:
5 Years
Output Mode:
Pwm Output
Efficiency:
≥ 89%
Type:
Constant Voltage
Packaging Details:
Brown box and Carton
Highlight:

100W LED Pool Light Transformer

,

AC 100V LED Pool Light Transformer

,

AC 100V Pool Light Transformers

Product Description
24V100W LED Pool Light Transformer
Product Description

UL Listed AC 100V-277V pool light transformer designed for residential, commercial, and industrial applications.

Key Features
  • Universal input voltage: 100VAC to 277VAC, 50/60Hz
  • Single channel & constant voltage mode operation
  • Multiple output voltage options: 12V/24V/36V/48V
  • Class 2 Class P driver type
  • LISTED enclosure with input and output wiring
  • Supports multiple dimming options: Triac/Phase-cut, PWM, 0/1-10V or MLV/ELV Resistance
  • Suitable for dry and damp environments
  • Wiring compartments with knock-outs for easy installation
  • Current limiting overload protection
  • Flicker-free, smooth ripple-free output voltage
  • IP67 rated enclosure for indoor/outdoor use
  • 5-year warranty
  • Multiple certifications: UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL
Note: Custom label/package/case options available. OEM and ODM services provided.
Dimming Connection Diagram
Wiring diagram for LED pool light transformer dimming connections
Technical Specifications
Dimming Type Series Power Model Output Current (A) Input Voltage Size
5 in 1 dimming HP 40W KS-40A-xxP 3.3A/1.67A/1.11A/0.83A 100~277V 50/60Hz 188*58*36mm
60W KS-60A-xxP 5A/2.5A/1.67A/1.25A 188*58*36mm
80W KS-80A-xxP 6.67A/3.33A/2.22A/1.67A 188*58*36mm
96W KS-96A-24P /4A// 213*58*36mm
100W KS-100A-xxP 8.33A/4.16A/2.78A/2.08A 188*58*36mm
120W KS-120A-xxP 10A/5A/3.33A/2.5A 188*58*36mm
150W KS-150A-xxP 12.5A/6.25A/4.16A/3.13A 188*58*36mm
180W KS-180A-12P 15A/// 234*68*41mm
200W KS-200A-xxP 16.66A/8.33A/5.55A/4.16A 234*68*41mm
240W KS-240A-xxP 20A/10A/6.66A/5A 258*68*41mm
300W KS-300A-24P /12.5A// 258*68*41mm
320W KS-320A-xxP /13.33A/8.88A/6.66A 258*68*41mm
FQA
Q: Do your LED drivers have UL/cUL certification? How long is the warranty period?
A: UL/cUL listed,5-years warranty

Q: Is this driver waterproof? Can it be used indoors and outdoors?
A: IP65 waterproof,indoor & outdoor


Q: Are all products tested before delivery?
A: 100% burn-in tested


Q: Do you support OEM and ODM customization? What can be customized?
A: OEM/ODM:custom voltage,cable,label

Why choose us?
 5  in 1 dimmable functions,Triac/0-10V/1-10V/10V PWM/Resistance dimming
.Non-dimming and multiple dimming functions,a variety of dimming combinations are available
.Suitable for forward & reverse phase dimming(MLV/ELV)
.Removable junction box to meet different market requirements optional,and 40-320W power range
.We provide OEM/ODM services and can customize any part
.Glue filling process,heat dissipation,waterproof and moisture-proof
.High efficiency and energy saving,high PFC,flicker-free
.Approved UL/cUL Class2 FCC CE GS-ENEC RoHS cert
