UL Certified 60W LED Lighting Transformer 100W 36W 36V 48V Ultra Slim LED Light Driver

UL Certified 60W LED Lighting Transformer 100W 36W 36V 48V Ultra Slim LED Light Driver

Brand Name:	KSPOWER
Model Number:	KSLP
MOQ:	2 pieces
Price:	$15.60-32.60/pieces
Supply Ability:	100000 Piece/Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

UL cUL CE Class P ENEC Gs TYPE HL...

Warranty(Year):

5-Year

Lighting Solutions Service:

Lighting And Circuitry Design

Output Power:

30W 60W 100W

Output Type:

PWM

Input Voltage:

100-277V

Output Frequency:

50/60Hz

Output Current:

0.62A-8.33A

Product Name:

12V 24V 36V 48V Low Voltage Landscape Lighting Transformer

Application:

Street Light, Tunnel Light, Wall Lamp,Spot Light

Warranty:

5 Years

Output Mode:

Pwm Output

Efficiency:

95%

Output:

12V 24V 36V 48V

Material:

Aluminium Case

IP Rate:

IP65; IP67

Dimming Mode:

5 In 1 Dimmable (0-10V,1-10V,TRIAC,PWM,resistance)

Packaging Details:

a. 1pc per inner brown box
b. 20pcs per standard carton
c. custom is acceptable
d. sample is available

Highlight:

60W LED Lighting Transformer

UL Certified LED Lighting Transformer

Ultra Slim LED Light Driver

Product Description

Products Description

led strip ul driver 60w led light transformer 100w 36 watt 12v 24v 36v 48v waterproof dimmable led driver light ultra slim cv

The KSPOWER - LP series 5 in 1 dimmable led driver is one constant voltage solution, single channel, accept universal AC input voltage range from 100V to 277V, output voltage 12Volt 24Volt 36Volt 48Volt optional with greater operating efficiency and higher PFC function. The class p dimming power supply use low profile metal aluminum case, dry and damp, makes the dimmable led driver power solutions for LED strips, LED sign, billboard and landscape lighting. Featuring 2K frequency PWM output and IP67 waterproof environment protection rated for indoor or outdoor use, the 0/1-10V and triac dimmable drivers provide 5 years warranty and outstanding led dimming performance.

Features:
* Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
* Single Channel & Constant Voltage mode
* Output Voltage: 12Volt/24Volt/36Volt/48Volt
* Driver Type: Class 2 Class P
* Enclosure: LISTED Enclosure with input and output wire

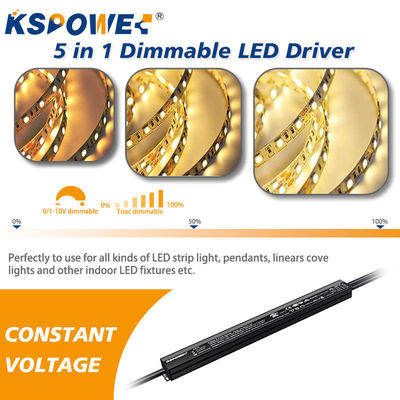

* Dimming: Triac/ Phase-cut, PWM, 0/1-10V or MLV / ELV Resistance Dimmable Available
* Environmental: Dry and Damp
* Wiring Compartments with Knock-Outs for Clean and Easy Installation

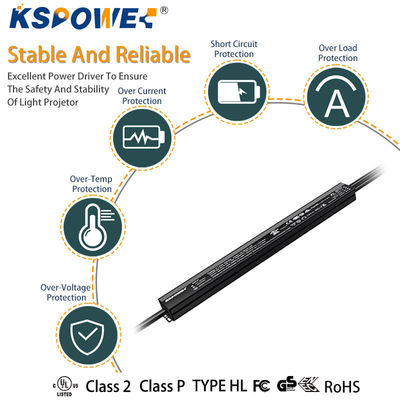

* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage

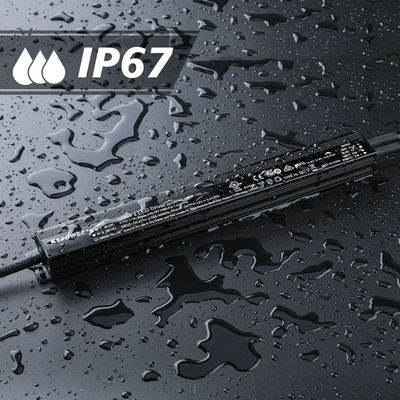

* IP67 Rated Enclosure for Indoor and Outdoor Use
* 5-Years Warranty
* UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL

Note:Any custom label/package/case is acceptable, provide OEM and ODM service

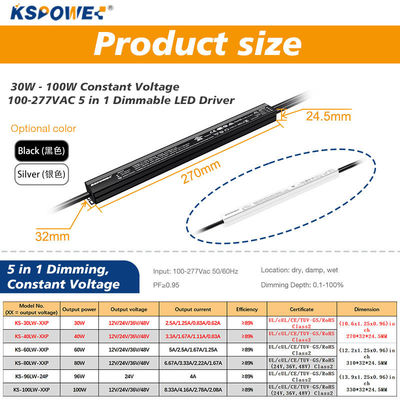

Input Voltage	100~277V AC 47~63Hz
Power Factor	PF≧0 98/115VAC, PF≧0 95/230VAC, PF≧0.9/277VAC, 80% with load
NO.	KSLP
Output Voltage	12V/ 24V/ 36V/ 48V
Rated Current	0.62A-8.33A
Rated Power	30W 40W 60W 80W 96W
Ripple & Noise (max.)	200mVp-p/ 250mVp-p
Certification	UL/cUL CE FCC RoHS ENEC GS

Company Profile

Working Room

Specification:

Nearly ¥3 Million Is Spent On Certification, Just To Make Customers Trust Our Quality

Exhibition

Product packaging

1.Sample is available.

2.Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others.
3. for 60W power adapter : each one put in one small inner brown box, then 50 pcs put in one standard carton.

Package	Piece/Carton(pcs)	Piece Weight(KG)
OEM package	50	0.26
Dimension/Brown Box(mm)	Dimension/Carton(mm)	Gross Weight/Carton(KG)
1558535	455370175	14
