UL Class 2 5V 4A 20W Power Supply with 5.5*2.1mm DC Jack for Smart WiFi LED Strips

UL Class 2 5V 4A 20W Power Supply with 5.5*2.1mm DC Jack for Smart WiFi LED Strips

UL Class 2 5V 4A 20W Power Supply with 5.5*2.1mm DC Jack for Smart WiFi LED Strips

Brand Name:	KSPOWER
Model Number:	KS39DU-0500400CU
MOQ:	1 pieces
Price:	The price is negotiable
Payment Terms:	T/T
Supply Ability:	300000pcs/monthly

Detail Information

Product Description

Detail Information

Place of Origin:

China (Mainland)

Certification:

UL cUL Class2 FCC

Output Voltage:

5V

Output Current:

4A

Protection:

OVP, OCP, SCP, OTP, OPP

DC Jack:

5.5*2.1mm

Warranty:

3 Years

Material:

100% PC

Type:

Wall Mounted

Packaging Details:

Brown box and carton

Highlight:

240VAC 50Hz Class Two Power Supply

,

12V 5A Class Two Power Supply

,

DC Line 12V 5A Power Supply

Product Description

UL Class 2 5V 4A 20W Power Supply for Smart WiFi LED Strips, US Plug

This 100-240V AC adapter provides reliable power for LED strip lighting systems with constant voltage output and comprehensive safety protections.

Key Specifications

Output mode: Constant voltage
Input: AC100-240Vac, 50/60Hz or 220-240Vac, 50/60Hz
Output: DC5V, 4A
Protections: Short circuit, current, and voltage protection
Energy Efficiency: Compliant with DOE, CEC, ERPII MEPS GEMS standards
Working environment: 0-40℃, 5%-95% RH

Compatibility & Connectors

AC plugs available: US, EU, UK, AU, Korea, Japan, China, Brazil, India, Argentina and others
DC plug options: 5.5*2.1/5.5*2.5/4.0*1.7/3.5*1.35/2.5*0.7/XLR/Cigarette lighter (customizable)

Certifications

UL, cUL, FCC, GS, CCC, CQC, KC, PSE, UKCA, SAA, C-tick, RCM, RoHS, CB and more

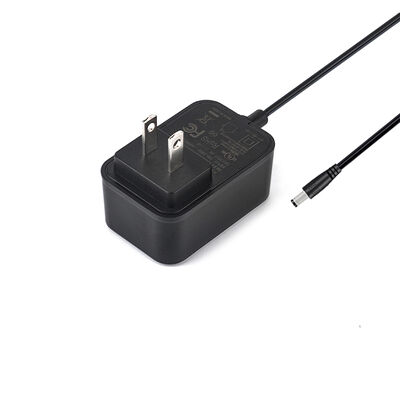

UL Class 2 5V 4A 20W Power Supply product image

International Specifications

Country	Max.Watt	Voltage Range	Current Range	Safety Standard
US	24W	DC5-36V	0.01A-3.0A	EN62368/UL 1310
EU	24W	DC5-36V	0.01A-3.0A	EN62368
UK	24W	DC5-36V	0.01A-3.0A	EN62368
AU	24W	DC5-36V	0.01A-3.0A	EN62368
KR	24W	DC5-36V	0.01A-3.0A	EN62368
JP	24W	DC5-36V	0.01A-3.0A	EN62368
CN	24W	DC5-36V	0.01A-3.0A	CCC-GB 4943.1-2022/CQC-GB 4343.1-2018;GB/T 4343.2-2020

Customization Process

Power supply customization process diagram

Production Process

Power supply manufacturing process

Partial certification samples for power supply

Customization Services

We provide OEM and ODM services with custom labeling, packaging, and case options available.
