products details

Home Products

Class 2 Power Supply

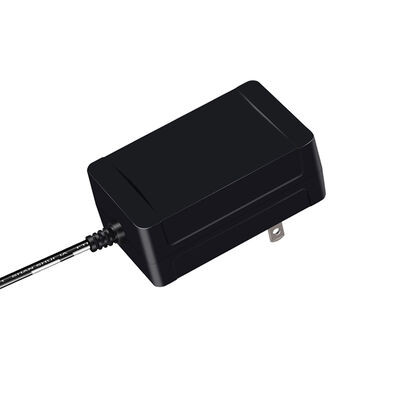

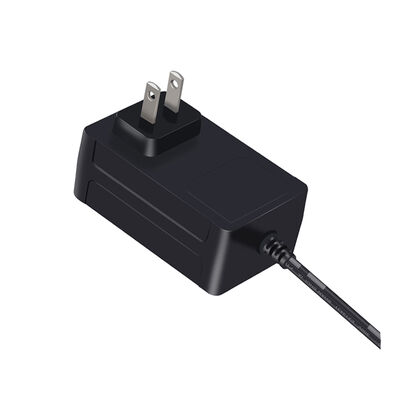

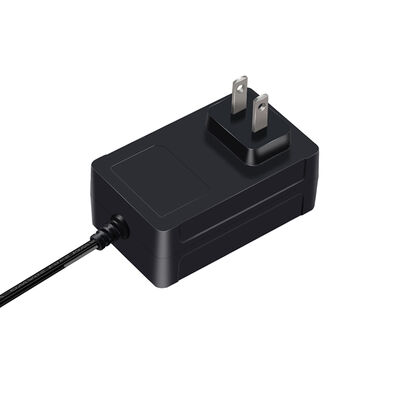

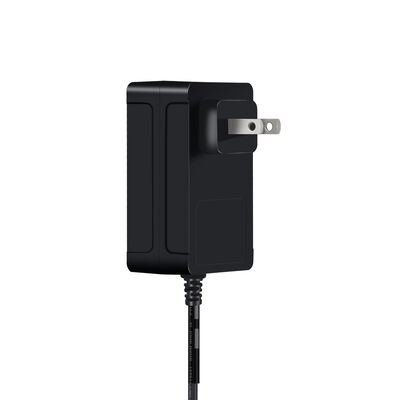

UL Class 2 24V 2A 48W LED Power Supply with 100-240V Input for LED Tape Light

UL Class 2 24V 2A 48W LED Power Supply with 100-240V Input for LED Tape Light

UL Class 2 24V 2A 48W LED Power Supply with 100-240V Input for LED Tape Light

Brand Name:	KSPOWER
Model Number:	ZF120A-xxxyyyy
MOQ:	10 pieces
Price:	The price is negotiable
Payment Terms:	T/T
Supply Ability:	300000pcs/monthly

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

UL CLASS 2 FCC

Output Type:

Single Phase

Input Voltage:

100-240V

Output Voltage:

24V

Output Current:

2A

Output Frequency:

50/60HZ

Protection:

OVP, OCP, SCP, OTP, OPP

AC Plugs:

US EU KR AU JP CN Etc.

DC Jack:

5.5*2.1/5.5*2.5mm Or Custom

Warranty:

3 Year Warranty

Material:

100% PC

Output Type:

Wall Mounted

Packaging Details:

Brown box and carton

Highlight:

OPP Protection Class 2 Power Supply

,

12v 5a 60w Power Supply

,

IP20 12V 5A Power Supply

Product Description

UL Class 2 24V 2A 48W Plug in Power Supply for LED Tape Light, FCC Certified

This 100-240V AC adapter provides reliable power for LED strip lighting systems with constant voltage output and comprehensive safety protections.

Key Specifications

Output mode: Constant voltage
Input: AC100-240Vac, 50/60Hz or 220-240Vac, 50/60Hz
Output: DC24V, 2A
Protections: Short circuit, current, and voltage protection
Energy Efficiency: Compliant with DOE, CEC, ERPII MEPS GEMS standards
Working environment: 0-40℃, 5%-95% RH

Compatibility & Connectors

AC plugs available: US, EU, UK, AU, Korea, Japan, China, Brazil, India, Argentina and others
DC plug options: 5.5*2.1/5.5*2.5/4.0*1.7/3.5*1.35/2.5*0.7/XLR/Cigarette lighter (customizable)

Certifications

UL cUL FCC GS CCC CQC KC PSE UKCA SAA C-tick RCM RoHS CB

UL Class 2 24V Power Supply Unit

International Specifications

Country	Max.Watt	Voltage Range	Current Range	Safety Standard
US	48W	DC5-36V	0.01-4.0A	EN62368/UL 1310
EU	48W	DC5-36V	0.01-4.0A	EN62368
UK	48W	DC5-36V	0.01-4.0A	EN62368
AU	48W	DC5-36V	0.01-4.0A	EN62368
KR	48W	DC5-36V	0.01-4.0A	EN62368
JP	48W	DC5-36V	0.01-4.0A	EN62368
CN	48W	DC5-36V	0.01-4.0A	CCC-GB 4943.1-2022/CQC-GB 4343.1-2018;GB/T 4343.2-2020

Customization Process

Power supply customization process diagram

Production Process

Power supply manufacturing process

Partial certification samples for power supply

Customization Services

We provide OEM and ODM services with custom labeling, packaging, and case options available.
