5 In 1 Dimmable Driver
Created with Pixso.

24V100W LED Pool Light Transformer with AC 100V-277V Input and 5-Years Warranty Dimmable LED Driver

24V100W LED Pool Light Transformer with AC 100V-277V Input and 5-Years Warranty Dimmable LED Driver

Brand Name: KSPOWER
Model Number: KS-100A-xxP
MOQ: 10 pieces
Price: $31.20/pieces 10-499 pieces
Payment Terms: T/T
Supply Ability: 300000/monthly
Detail Information
Place of Origin:
Guangdong, China
Certification:
UL cUL CE Class 2 Class P ENEC Gs TYPE HL...
Warranty(Year):
5-Year
Color:
Black, Silver
Current:
4.16A
Lighting Solutions Service:
Lighting And Circuitry Design
Input Voltage(V):
100V-277VAC
Application:
Street Light, Tunnel Light, Wall Lamp,Spot Light
IP Rate:
IP65,IP67
Material:
Aluminium Case
Warranty:
5 Years
Output Mode:
Pwm Output
Efficiency:
≥ 89%
Type:
Constant Voltage
Packaging Details:
Brown box and Carton
Highlight:

100W LED Pool Light Transformer

,

AC 100V LED Pool Light Transformer

,

AC 100V Pool Light Transformers

Product Description
24V100W LED Pool Light Transformer
Product Description

UL Listed AC 100V-277V pool light transformer designed for residential, commercial, and industrial applications.

Key Features
  • Universal input voltage: 100VAC to 277VAC, 50/60Hz
  • Single channel & constant voltage mode operation
  • Multiple output voltage options: 12V/24V/36V/48V
  • Class 2 Class P driver type
  • LISTED enclosure with input and output wiring
  • Supports multiple dimming options: Triac/Phase-cut, PWM, 0/1-10V or MLV/ELV Resistance
  • Suitable for dry and damp environments
  • Wiring compartments with knock-outs for easy installation
  • Current limiting overload protection
  • Flicker-free, smooth ripple-free output voltage

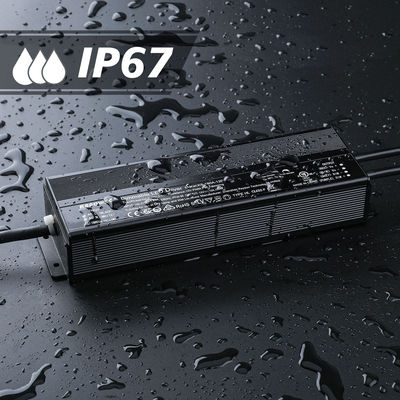

  • IP67 rated enclosure for indoor/outdoor use
  • 5-year warranty
  • Multiple certifications: UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL
Note: Custom label/package/case options available. OEM and ODM services provided.
Dimming Connection Diagram
24V100W LED Pool Light Transformer with AC 100V-277V Input and 5-Years Warranty Dimmable LED Driver 0
Technical Specifications
Dimming Type Series Power Model Output Current (A) Input Voltage Size
5 in 1 dimming HP 40W KS-40A-xxP 3.3A/1.67A/1.11A/0.83A 100~277V 50/60Hz 188*58*36mm
60W KS-60A-xxP 5A/2.5A/1.67A/1.25A 188*58*36mm
80W KS-80A-xxP 6.67A/3.33A/2.22A/1.67A 188*58*36mm
96W KS-96A-24P /4A// 213*58*36mm
100W KS-100A-xxP 8.33A/4.16A/2.78A/2.08A 188*58*36mm
120W KS-120A-xxP 10A/5A/3.33A/2.5A 188*58*36mm
150W KS-150A-xxP 12.5A/6.25A/4.16A/3.13A 188*58*36mm
180W KS-180A-12P 15A/// 234*68*41mm
200W KS-200A-xxP 16.66A/8.33A/5.55A/4.16A 234*68*41mm
240W KS-240A-xxP 20A/10A/6.66A/5A 258*68*41mm
300W KS-300A-24P /12.5A// 258*68*41mm
320W KS-320A-xxP /13.33A/8.88A/6.66A 258*68*41mm
