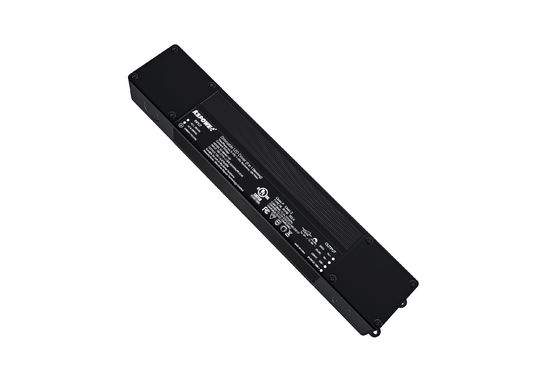

80W Dimmable LED Driver with 100-277V Input and 12V/24V/36V/48V Output for Low Voltage Lighting
80W Dimmable LED Driver with 100-277V Input and 12V/24V/36V/48V Output for Low Voltage Lighting
Basic Properties
country of origin
Guangdong, China
brand name
KSPOWER
certificate
UL FCC CE ROHS SAA CLASS P etc.
product model
KS-80AW-xxP
Trading Properties
moq
5 pieces
unit price
The price is negotiable
payment method
T/T
supply capacity
300000pcs/monthly
Product Summary
IP65 80W Dimmable LED Driver, Low Voltage for Outdoor Cabinet & Step Lighting The KSPOWER HP series 5-in-1 dimmable LED driver (40W-320W) is a constant voltage solution that accepts universal AC input voltage from 100V to 277V. Available with output voltages of 12V, 24V, 36V, or 48V, it offers high ...
Product Details
Highlight:
300w Pool Lighting Transformer
,Bar Font Pool Lighting Transformer
,220v 5 In 1 Dimmable Driver
Warranty(Year):
5-Year
Lighting solutions service:
Lighting And Circuitry Design
Output Power:
80W
Output Type:
PWM
Input Voltage:
100-277V
Output Frequency:
50/60Hz
Application:
LED Strip Light,Pendants, Linears,Cove Lights
Material:
Aluminum Case
Warranty:
5 Years
Protection:
OCP, OVP, SCP, OTP
IP Rate:
IP65,IP67
Efficiency:
≥91%
Output:
12V24V36V48V
Product Description
IP65 80W Dimmable LED Driver, Low Voltage for Outdoor Cabinet & Step Lighting
The KSPOWER HP series 5-in-1 dimmable LED driver (40W-320W) is a constant voltage solution that accepts universal AC input voltage from 100V to 277V. Available with output voltages of 12V, 24V, 36V, or 48V, it offers high operating efficiency with PFC function. This Class 2 dimming LED driver is compatible with 0-10V/MLV/ELV Lutron dimmers and features 10K frequency PWM output with IP67 waterproof protection for indoor or outdoor use.
Key Features
- Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
- Single Channel & Constant Voltage mode
- Output Voltage: 12V/24V/36V/48V Optional
- Driver Type: Class 2 Class P
- Enclosure: LISTED Enclosure with/without Junction Box
- Dimming: Triac/Phase-cut, PWM, 0/1-10V or MLV/ELV Resistance Dimmable
- Environmental: Dry and Damp locations
- Wiring Compartments with Knock-Outs for clean installation
- Current Limiting Overload Protection
- Flicker-Free operation
- Smooth Ripple Free Output Voltage
- IP67 Rated Enclosure for Indoor/Outdoor Use
- 5-Year Warranty
- Certifications: UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL
Technical Specifications
| Dimming Type | Series | Power | Model (xx=output voltage) | Output Voltage & Current | Input Voltage | Size |
|---|---|---|---|---|---|---|
| 5 in 1 dimming | HPJ | 40W | KS-40AW-xxP | 12V:3.3A, 24V:1.67A, 36V:1.11A, 48V:0.83A | 100~277V 50/60Hz | 297*58*36mm |
| 5 in 1 dimming | HPJ | 60W | KS-60AW-xxP | 12V:5A, 24V:2.5A, 36V:1.67A, 48V:1.25A | 100~277V 50/60Hz | 297*58*36mm |
| 5 in 1 dimming | HPJ | 80W | KS-80AW-xxP | 12V:6.67A, 24V:3.33A, 36V:2.22A, 48V:1.67A | 100~277V 50/60Hz | 297*58*36mm |
| 5 in 1 dimming | HPJ | 96W | KS-96AW-24P | 24V:4A | 100~277V 50/60Hz | 322*58*36mm |
| 5 in 1 dimming | HPJ | 100W | KS-100AW-xxP | 12V:8.33A, 24V:4.16A, 36V:2.78A, 48V:2.08A | 100~277V 50/60Hz | 322*58*36mm |
| 5 in 1 dimming | HPJ | 120W | KS-120AW-xxP | 12V:10A, 24V:5A, 36V:3.33A, 48V:2.5A | 100~277V 50/60Hz | 322*58*36mm |
| 5 in 1 dimming | HPJ | 150W | KS-150AW-xxP | 12V:12.5A, 24V:6.25A, 36V:4.16A, 48V:3.13A | 100~277V 50/60Hz | 343*68*41mm |
| 5 in 1 dimming | HPJ | 180W | KS-180AW-12P | 12V:15A | 100~277V 50/60Hz | 343*68*41mm |
| 5 in 1 dimming | HPJ | 200W | KS-200AW-xxP | 12V:16.66A, 24V:8.33A, 36V:5.55A, 48V:4.16A | 100~277V 50/60Hz | 343*68*41mm |
| 5 in 1 dimming | HPJ | 240W | KS-240AW-xxP | 12V:20A, 24V:10A, 36V:6.66A, 48V:5A | 100~277V 50/60Hz | 367*68*41mm |
| 5 in 1 dimming | HPJ | 300W | KS-300AW-24P | 24V:12.5A | 100~277V 50/60Hz | 367*68*41mm |
| 5 in 1 dimming | HPJ | 320W | KS-320AW-xxP | 24V:13.33A, 36V:8.88A, 48V:6.66A | 100~277V 50/60Hz | 367*68*41mm |
Note: Custom labeling, packaging, and cases are available. We provide OEM and ODM services.
FQA
.UL/cUL listed,5-year warranty
.IP65 waterproof,indoor & outdoor
100% burn-in tested
.OEM/ODM:custom voltage,cable,label
Why choose us?
.5 in1 dimmable functions,Triac/0-10V/1-10V/10V PWM/Resistance dimming
.Non-dimming and multiple dimming functoins,a variety of dimming combinations are available
.Suitable for forward & reverse phase dimming(MLV/ELV)
.Removable junction box to meet different market requirements
.Input voltage 100-277V,12V24V36V48V output voltage optional,and 40-320W power range
.We provide OEM/ODM services and can customize any part
.Glue filling process,heat dissipation,waterproof and moisture-proof
.High efficiency and energy saving,high PFC,flicker-free
.Approved UL/cUL Class2 FCC CE GS-ENEC RoHS cert
