60W High Efficiency UL Certified Wall Plug Adapter for LED Strips and Audio Amplifiers

Brand Name:	KSPOWER
Model Number:	KS65DU-xxxyyyy
MOQ:	1pieces
Price:	$4.98-$5.36/piece
Payment Terms:	T/T
Supply Ability:	300000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

UL cUL FCC CE GS KC PSE SAA RoHS CB UKCA etc

Output Type:

Single Phase

Input:

AC 100-240v 50-60hz

Output Voltage:

9V12V15V19V20V24V36V48V

Certificate:

UL CUL CE KC KCC GS SAA RCM CB FCC PSE CCC RoHS

Color:

White Black Customized

Material:

100% PC

Warranty:

3 Years

Type:

Wall Mounted

Protectio:

OCP OVP OTP SCP

Application:

LED Strips, Audio Amplifiers, Etc

Packaging Details:

Small box and Carton

Highlight:

Customised Ac To Dc Wall Charger

Portable Ac To Dc Wall Charger

2000mA ac to dc wall converter

Product Description

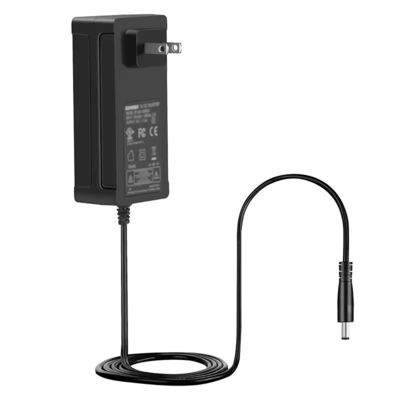

60W High Efficiency Wall Plug Adapter

High-performance 60W wall plug adapter designed for reliable power supply across various applications.

Technical Specifications

Output Mode: Constant voltage modes
Input: AC100-240Vac, 50/60Hz or 220-240Vac, 50/60Hz
Output: DC5V-36V, 0.01A-3A, 24W Max
Protections: Short circuit, over current, over voltage
Energy Efficiency: DOE, CEC, ERPII MEPS GEMS
Working Environment: 0-40℃, 5%-95% RH
Certifications: UL, cUL, FCC, GS, CCC, CQC, KC, PSE, UKCA, SAA, C-tick, RCM, RoHS, CB

Regional Specifications

Country	Max. Watt	Voltage Range	Current Range	Safety Standard
US	65W	DC5-36V	0.01A-5.0A	EN62368/UL 1310
EU	65W	DC5-36V	0.01A-5.0A	EN62368
UK	65W	DC5-36V	0.01A-5.0A	EN62368
AU	65W	DC5-36V	0.01A-5.0A	EN62368
KR	65W	DC5-36V	0.01A-5.0A	EN62368
JP	65W	DC5-36V	0.01A-5.0A	EN62368
CN	65W	DC5-36V	0.01A-5.0A	CCC-GB 4943.1-2022/CQC-GB 4343.1-2018;GB/T 4343.2-2020

Key Features

Single channel & Constant Voltage power supply
100% Full load burn-in test
Pass LPS (limited power source)
3 Years Warranty
Class II power (without earth pin)
Compact size, fully enclosed PC plastic case
Starting time: <3 seconds
Energy Efficiency: DOE/CEC/ErP/MEPS/NRcan Level VI

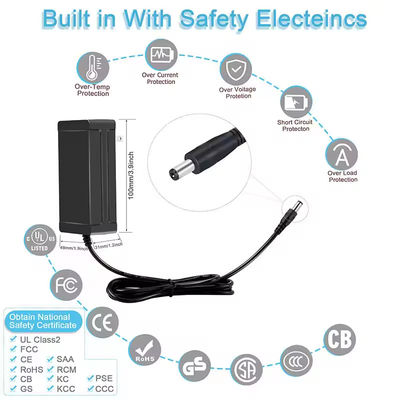

Safety automatic protections for over current, over load and short circuit

Compatible AC Plugs

US, EU, UK, AU, Korea, Japan, China, Brazil, India, Argentina and others

Available DC Plugs

5.5*2.1/5.5*2.5/4.0*1.7/3.5*1.35/2.5*0.7/XLR/Cigarette lighter etc (Customizable)

Applications

The AC adapter is suitable for electric grill oven, LED strips, audio amplifiers, wireless routers, audio and video power supplies, etc.

Not waterproof, indoor use only.

Customization Services

We provide OEM and ODM services with custom labeling, packaging, and case options available.
