360W-2800W DSP Intelligent Battery Charger 88V 4A 6A 7A 10A 15A 20A 25A 30A with High Speed Cooling Fan and Low Ripple Output

Brand Name:	KSPOWER
Model Number:	2800W Series
MOQ:	1
Price:	The price is negotiable
Payment Terms:	T/T
Supply Ability:	200000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS

Input::

AC200-240V 50/60Hz

Rated Power::

2800W

Warranty::

1-2 Years

Charging Indicator：:

Charging In Red, Fully Charged In Green, LCD Screen

Charging Mode::

CC-CV

Material::

Aluminum Profile

Protection::

Over-charging, OTP, OVP, SCP, OCP, Reverse Connection Protections

Product Name::

Lithium Battery Charger

Compatible::

Lead Acid Battery Pack, Lithium Battery Pack, Lithium Iron Phosphate Battery Pack, Electric Motorcycle, Electric Bicycle

Feature::

Switchable Voltage And Current, Custom Voltage

Packaging Details:

Small box and Carton

Highlight:

DSP intelligent battery charger 360W-2800W

88V battery charger with cooling fan

low ripple output battery charger

Product Description

360W-2800W DSP Intelligent Battery Charger 88V 4A 6A 7A 10A 15A 20A 25A 30A with High Speed Cooling Fan and Low Ripple Output

High-performance 2800W DSP intelligent charger with dual adjustable voltage (10-88V) and current (1-30A), compatible with lithium iron, ternary lithium, lithium, and lead-acid batteries. Features comprehensive safety protections and communication capabilities.

Key Features

Smart fast charging with multiple charging methods
Dual adjustable voltage and current (10-88V/1-30A)
Customized intelligent power switching with custom voltage
Support for RS-485/CAN communication protocols
Fully compatible with ternary, iron, lithium and lead-acid batteries
Color screen display for detailed monitoring
Mobile phone Bluetooth APP settings

Why choose us?

Output Mode:CC+CV Mode
Ripple & Noise :50mV-120mV
Battery Type :Supports LiFePO4,Lithium & Lead-acid batteries
Color Screen Display:Both voltage and current are adjustable

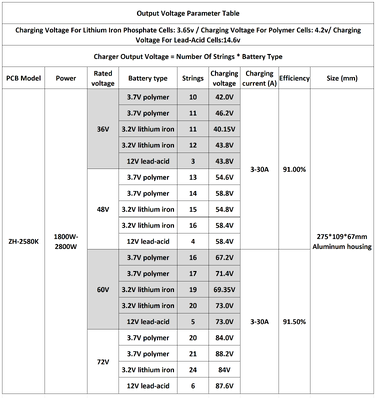

Technical Specifications

360W-2800W DSP Intelligent Battery Charger 88V 4A 6A 7A 10A 15A 20A 25A 30A with High Speed Cooling Fan and Low Ripple Output

Applications

E-bikes E-balance cars E-scooters E-surfboards UAVs UPS systems E-four-wheelers Electric tools Intelligent household appliances

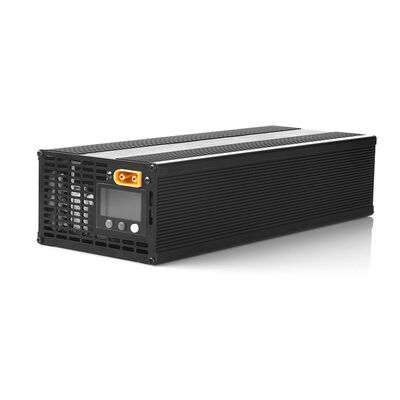

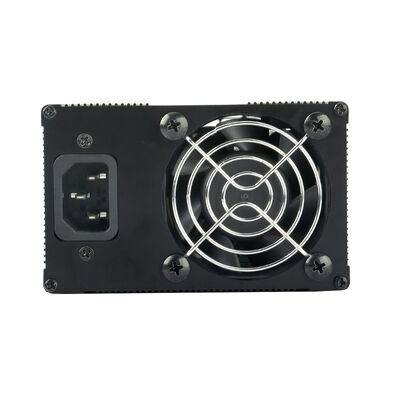

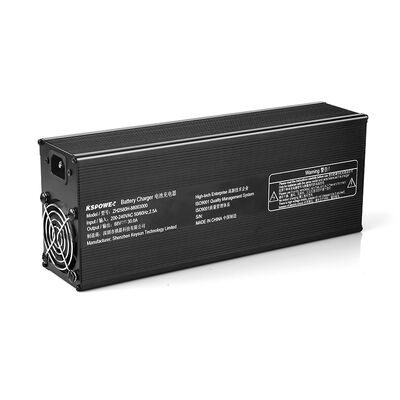

Product Images

360W-2800W DSP Intelligent Battery Charger 88V 4A 6A 7A 10A 15A 20A 25A 30A with High Speed Cooling Fan and Low Ripple Output
