1200W DSP Smart Lithium Battery Charger 36V 48V 58.8V 20A 60V 72V 73V 15A PFC 91.5% with S485 CAN Communication for Energy Storage Systems

Brand Name:	KSPOWER
Model Number:	1200W Series
MOQ:	1
Price:	The price is negotiable
Payment Terms:	T/T
Supply Ability:	200000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS

Input::

AC200-240V 50/60Hz

Rated Power::

1200W

Warranty::

1-2 Years

Charging Indicator：:

Charging In Red, Fully Charged In Green, LCD Screen

Charging Mode::

CC-CV

Material::

Aluminum Profile

Protection::

Over-charging, OTP, OVP, SCP, OCP, Reverse Connection Protections

Product Name::

Lithium Battery Charger

Compatible::

Lead Acid Battery Pack, Lithium Battery Pack, Lithium Iron Phosphate Battery Pack, Electric Motorcycle, Electric Bicycle

Feature::

Switchable Voltage And Current, Custom Voltage

Packaging Details:

Small box and Carton

Highlight:

1200W DSP lithium battery charger

36V 48V 60V smart charger

S485 CAN communication charger

Product Description

1200W DSP Smart Lithium Battery Charger 36V 48V 58.8V 20A 60V 72V 73V 15A PFC 91.5% with S485 CAN Communication for Energy Storage Systems

High-performance 1200W DSP intelligent charger with dual adjustable voltage (10-88V) and current (1-15A), compatible with lithium iron, ternary lithium, lithium, and lead-acid batteries. Features comprehensive safety protections and communication capabilities.

Key Features

Smart fast charging with multiple charging methods
Dual adjustable voltage and current (10-88V/1-15A)
Customized intelligent power switching with custom voltage
Support for RS-485/CAN communication protocols
Fully compatible with ternary, iron, lithium and lead-acid batteries
Color screen display for detailed monitoring
Mobile phone Bluetooth APP settings

Why choose us?

Output Mode:CC+CV Mode
Ripple & Noise :50mV-120mV
Battery Type :Supports LiFePO4,Lithium & Lead-acid batteries
Color Screen Display:Both voltage and current are adjustable

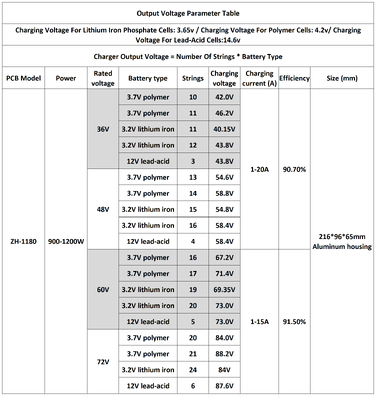

Technical Specifications

1200W DSP Smart Lithium Battery Charger 36V 48V 58.8V 20A 60V 72V 73V 15A PFC 91.5% with S485 CAN Communication for Energy Storage Systems

Applications

E-bikes E-balance cars E-scooters E-surfboards UAVs UPS systems E-four-wheelers Electric tools Intelligent household appliances

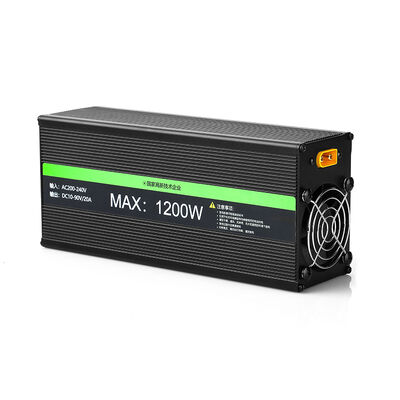

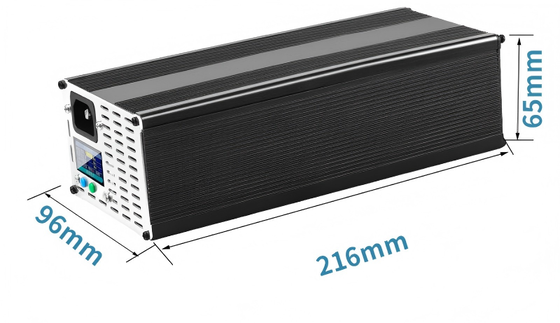

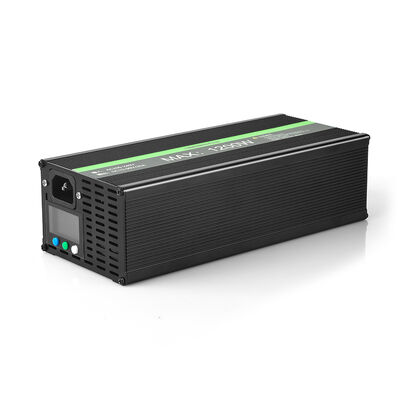

Product Images
