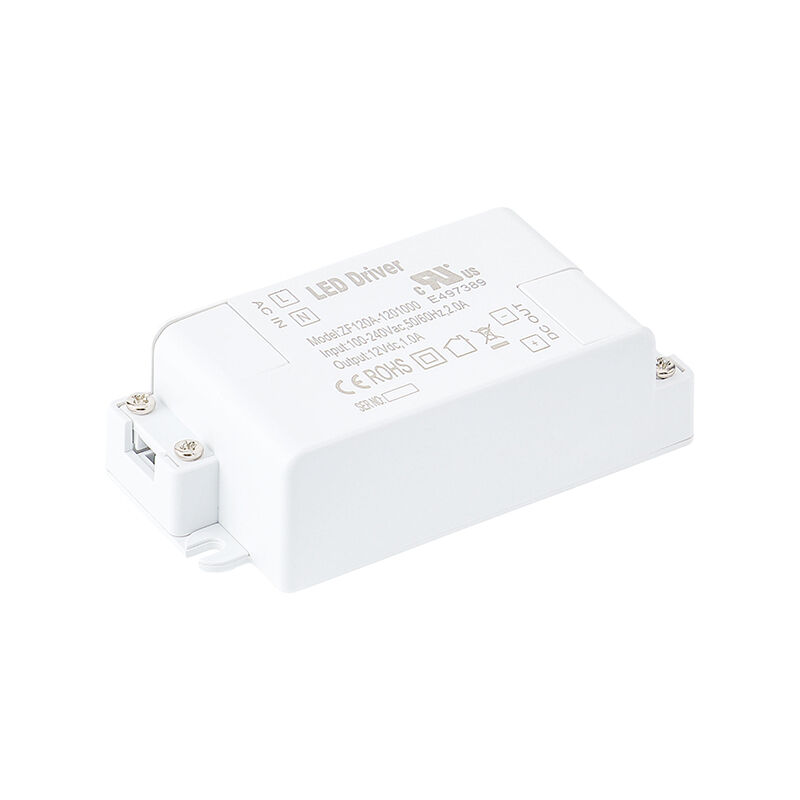

12W IP20 Plastic LED Driver for Indoor Lighting with Constant Voltage and Universal Input

Brand Name:	KSPOWER
Model Number:	ZF120A-xxxyyyy
MOQ:	1 pieces
Price:	The price is negotiable
Payment Terms:	T/T
Supply Ability:	300000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

UL/cUL FCC CE RoHS Cert.

Warranty(Year):

2-Years

Output Power:

12W

Output Type:

Single Phase

Input Voltage:

100-240 VAC

Output Frequency:

50Hz~60Hz

Efficiency:

≥ 88%

IP Rank:

IP20

Protections:

Short Circuit, Overload, Over Voltage, Over Temperature

Material:

Plastic Case

Warranty:

2 Years

Application:

LED Lighting, Celling Light Etc

Packaging Details:

Small box and Carton

Highlight:

12W Plastic LED Driver

IP20 LED Power Supply

Indoor Lighting Constant Voltage LED Driver

Product Description

12W IP20 Plastic LED Driver with Constant Voltage for Indoor Lighting

Product Overview

P Series Constant Voltage LED Drivers with 12V, 24V, 36V, and 48V output options. Features non-dimming functionality with universal AC input voltage range of 100VAC to 240VAC.

Product Features

Constant voltage design for stable performance
Rectangular plastic case with IP20 protection level
Universal AC input with full range compatibility
Comprehensive protection: Short circuit, Over voltage, Over current
Class II power design (without earth pin)
Ideal for indoor LED lighting and moving sign applications

FQA
Q: What certifications does P series LED driver have? Is it suitable for outdoor use?
A: UL/CE certified, IP20 indoor only
Q: What is the housing material of P series LED driver and its advantage?
A: Plastic housing, most affordable
Q: How long is the warranty for P series LED driver?
A: 1-2 year warranty

Why choose us?
Input 100-240V,output 12V24V36V48VDC,5W-60W
Non-isolated design
Plastic case,IP20 for indoor use
Provide OCP/OVP/SCP/OTP protections
UL/cUL FCC CE RoHS safety certificate

Technical Specifications

Output Voltage	12V / 24V / 36V / 48V
Color	White
Input Voltage	110-240V AC ±10% 47-63Hz
Output Type	DC Single Output
Working Environment	0℃-40℃ (0%-90% RH)
Storage Environment	-20℃-60℃ (0%-90% RH)
Load Regulation	±5%
RoHS Compliant	Yes
Ripple & Noise (max)	< 150mVp-p
Safety Approvals	UL/cUL 8750, CE, and international safety regulations

Warranty: 1 year manufacturer warranty included
