5V 3A Wall Power Adapter with Multiple Protections and 3-Year Warranty for Raspberry Pi Cluster

Brand Name:	KSPOWER
Model Number:	KS39DU-xxxyyyy
MOQ:	1pieces
Price:	$1.52-1.89/pieces
Payment Terms:	T/T
Supply Ability:	300000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China (Mainland)

Certification:

UL CLASS 2 /CE/GS/SAA/KC/CB/FCC/C-TICK/PAHS/ROHS

Connection:

Plug In

Output:

9V12V15V19V20V24V36V48V

Protection:

OVP, OCP, SCP, OTP, OPP

DC Jack:

5.5*2.1/5.5*2.5mm Or Custom

Warranty:

3 Years

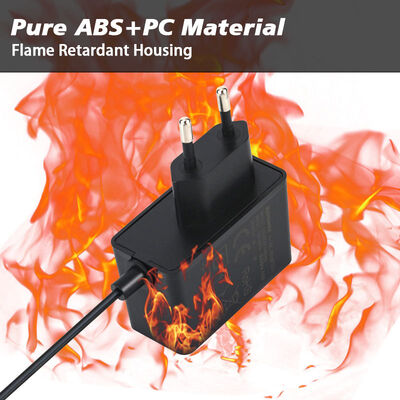

Material:

100% PC

Type:

Wall-mounted

Packaging Details:

Small box and Carton

Highlight:

12 Volt 48w class 2 power adapter

Neon Light class 2 power adapter

Neon Light Wall Plug Adapter

Product Description

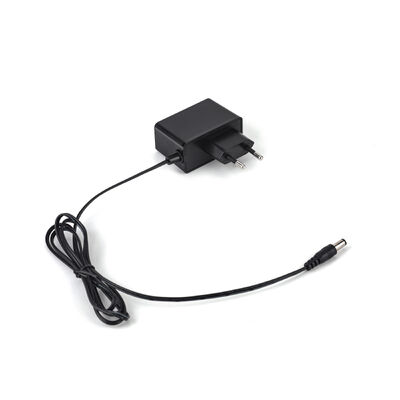

5V 3A Wall Adapter for Raspberry Pi Cluster

This 5V 3A wall adapter is specifically designed for Raspberry Pi clusters, providing reliable power delivery for multiple connected devices.

Technical Specifications

Output Mode: Constant voltage

Input Voltage: AC100-240Vac, 50/60Hz or 220-240Vac, 50/60Hz

Output Range: DC5V-36V, 0.01A-3A, 24W Max

Protections: Short circuit, over current, over voltage

Energy Efficiency: DOE, CEC, ERPII MEPS GEMS

Operating Environment: 0-40℃, 5%-95% RH

Certifications: UL, cUL, FCC, GS, CCC, CQC, KC, PSE, UKCA, SAA, C-tick, RCM, RoHS, CB

Regional Specifications

Country	Max. Watt	Voltage Range	Current Range	Safety Standard
US	24W	DC5-36V	0.01A-3.0A	EN62368/UL 1310
EU	24W	DC5-36V	0.01A-3.0A	EN62368
UK	24W	DC5-36V	0.01A-3.0A	EN62368
AU	24W	DC5-36V	0.01A-3.0A	EN62368
KR	24W	DC5-36V	0.01A-3.0A	EN62368
JP	24W	DC5-36V	0.01A-3.0A	EN62368
CN	24W	DC5-36V	0.01A-3.0A	CCC-GB 4943.1-2022/CQC-GB 4343.1-2018;GB/T 4343.2-2020

Key Features

Single channel constant voltage power supply
100% full load burn-in testing
Passes LPS (limited power source) requirements
3-year comprehensive warranty
Class II power design (without earth pin)

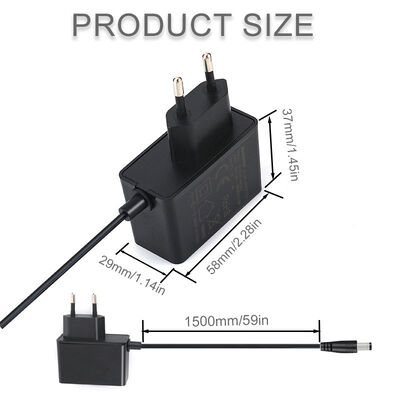

Compact size with fully enclosed PC plastic case
Fast startup time: <3 seconds
High energy efficiency: DOE/CEC/ErP/MEPS/NRcan Level VI

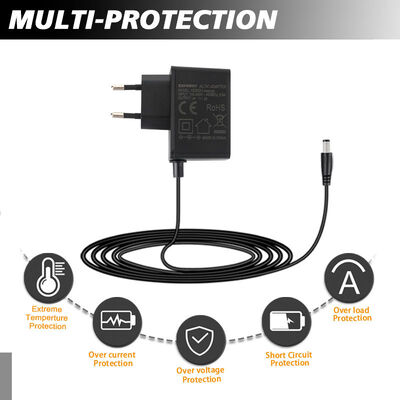

Automatic safety protections for over current, over load, and short circuit

Compatible AC Plugs

US, EU, UK, AU, Korea, Japan, China, Brazil, India, Argentina and other regional standards

Available DC Connectors

5.5*2.1mm, 5.5*2.5mm, 4.0*1.7mm, 3.5*1.35mm, 2.5*0.7mm, XLR, Cigarette lighter, and other customizable options

Applications

Ideal for electric grill ovens, LED strips, audio amplifiers, wireless routers, and audio/video power supplies.

Not waterproof - indoor use only.

Customization Services

We offer comprehensive OEM and ODM services with custom labeling, packaging, and case design options available to meet your specific requirements.
