300w Bar Font Pool Lighting Transformer UL Compliance 220v 5 In 1 Dimmable Driver

Brand Name:	KSPOWER
Model Number:	KSHP-300W24
MOQ:	5 pieces
Price:	$63/pieces 5-499 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

UL FCC CE ROHS SAA CLASS P etc.

Warranty(Year):

5-Year

Lighting Solutions Service:

Lighting And Circuitry Design

Output Power:

300W

Output Type:

PWM

Input Voltage:

100-277V

Output Frequency:

50/60Hz

Output Current:

12.5A

Product Name:

24V300w 5 In 1 Dimmable Led Driver

Application:

LED Strip Light,Pendants, Linears,Cove Lights

Material:

Aluminum Case

Warranty:

5 Years

Protection:

OCP, OVP, SCP, OTP

IP Rate:

IP65,IP67

Efficiency:

≥91%

Power:

300W

Output:

24V

Highlight:

300w Pool Lighting Transformer

Bar Font Pool Lighting Transformer

220v 5 In 1 Dimmable Driver

Product Description

Products Description

bar font pool lighting transformer 300w with ul compliance transformer 220v 24v for garden lights low voltage landscape lighting

The KSPOWER - H series non dimmable led driver 300 Watt is one constant voltage solution, accept universal AC input voltage range from 100V to 277V, output voltage 24Volt with greater operating efficiency and high PFC function. Featuring single output and IP67 waterproof environment protection rated for indoor or outdoor use, the UL/cUL CE listed 24V LED street lights power supply provide 5 years warranty and no flicker outstanding performance.

Features:
* Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
* Single Channel & Constant Voltage mode
* Output Voltage: 24Volt
* Driver Type: Class 2 Class P
* Enclosure:LISTED Enclosure with Junction Box / LISTED Enclosure without Junction Box
* Dimming: Triac/ Phase-cut, PWM, 0/1-10V or MLV / ELV Resistance Dimmable Available
* Environmental: Dry and Damp
* Wiring Compartments with Knock-Outs for Clean and Easy Installation
* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage

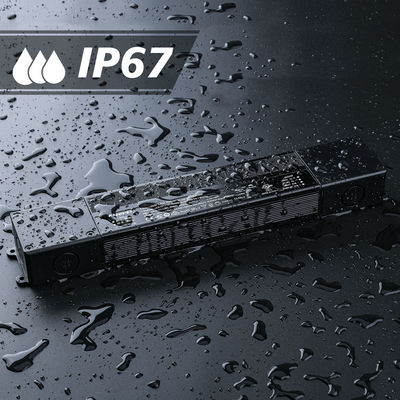

* IP67 Rated Enclosure for Indoor and Outdoor Use
* 5-Years Warranty
* UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL

Note:Any custom label/package/case is acceptable, provide OEM and ODM service

Input Voltage	100~277V AC 47~63Hz
Power Factor	PF≧0 98/115VAC, PF≧0 95/230VAC, PF≧0.9/277VAC, 80% with load
NO.	KSHP-300W24
Output Voltage	24V
Rated Current	12.5A
Rated Power	300W
Ripple & Noise (max.)	250mVp-p
Dimension(LWH)	3676841mm / 14.42.681.85in

Dimming Connect Drawing

Dimension Drawing

NOW,GET MORE INFORMATIONS OF US !

Company Profile

Working Room

Exhibition

Certifications

Applications

Product packaging

1.Sample is available.

2.Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others.

3. for 60W power adapter : each one put in one small inner brown box, then 50 pcs put in one standard carton.

Package	Piece/Carton(pcs)	Piece Weight(KG)
OEM package	50	0.26
Dimension/Brown Box(mm)	Dimension/Carton(mm)	Gross Weight/Carton(KG)
1558535	455370175	14
