100W Output Universal 100-277V Input IP65 Rated 5-in-1 Dimming LED Transformer for Dimmable LED Driver

Brand Name:	KSPOWER
Model Number:	KS-xx100a-M#
MOQ:	1pcs
Price:	$29.69-32.58/pieces
Payment Terms:	T/T
Supply Ability:	300000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

UL FCC CE ROHS SAA CLASS 2 CLASS P etc.

Warranty(Year):

5-Year

Lighting Solutions Service:

Lighting And Circuitry Design

Output Power:

100W

Output Type:

PWM Or DC

Input Voltage:

100-277V

Output Frequency:

50/60Hz

Application:

LED Strip Light,Pendants, Linears,Cove Lights

Warranty:

5 Years

Protection:

OCP, OVP, SCP, OTP

IP Rate:

IP65

Efficiency:

≥90%

Output:

12V24V36V48V

Packaging Details:

Small box and Cartons

Highlight:

5 in 1 dimmable LED driver

24V 36V 48V LED driver

400W dimming lighting driver

Product Description

2-Way 12V/24V/36V/48V 50W(100W) Universal 5-in-1 Dimming Class 2 LED Transformer

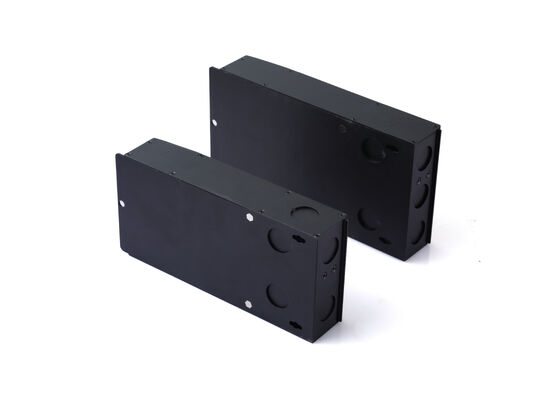

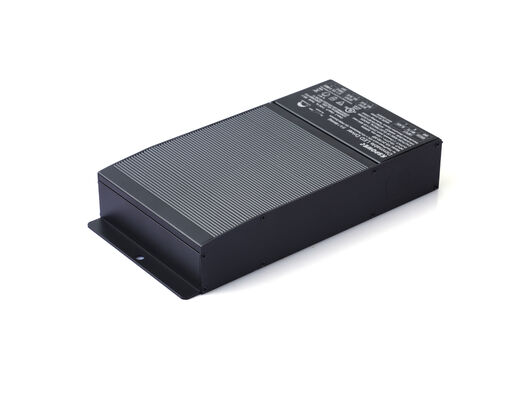

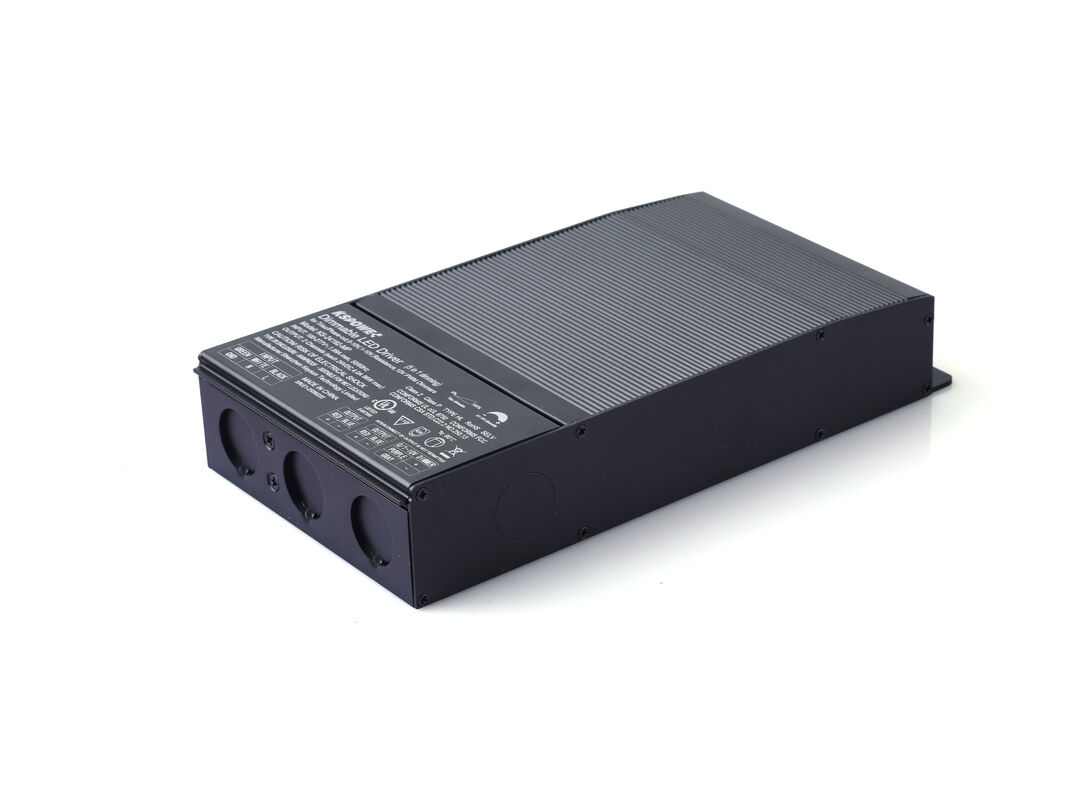

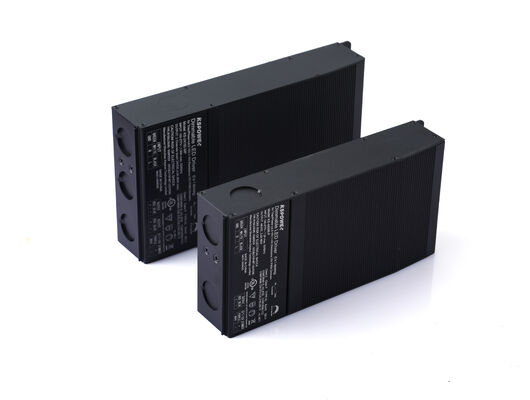

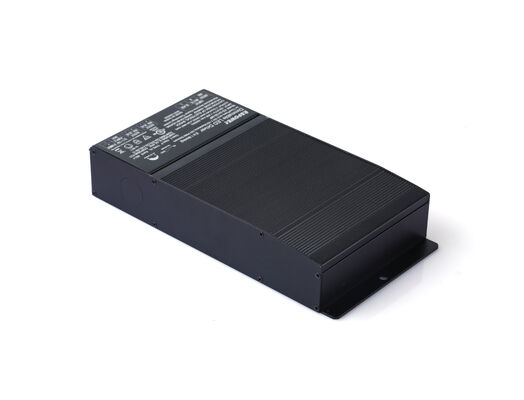

KSPOWER MVP Series with universal AC input of 100-277V and high power-factor efficiency, this 50W×2-way CV LED driver delivers superior dimming performance. The patented aluminum case protects internal components while providing stable output across 12V/24V/36V/48V options. Supports multiple dimming protocols including MLV, ELV, Triac, Phase-cut, 0-10V, and PWM for wide compatibility with modern control systems. UL Class 2 certified and NEMA 3R rated for both exterior and interior LED lighting applications.

Key Features

Switching PWM and DC voltage freely selectable
PWM or Voltage Reduction output selectable
2-Way universal dimming functions optional
Super compact aluminum case design
UL/cUL CE Class 2 CLASS P FCC RoHS LPS certified
NEMA 3R rated for indoor or outdoor use
Switch to color temperature LED strips with 100%-0.01% dimming flicker-free
Auto-reset protection for input/output overvoltage, overcurrent, overtemperature, over power, and short circuit conditions

Electrical Specifications

MODEL	KS-12100a-M#	KS-24100a-M#	KS-36100a-M#	KS-48100a-M#
Output Voltage	12V	24V	36V	48V
Rated current x Channel	4.16A x 2	2.08A x 2	1.38A x 2	1.04A x 2
Rated power	100W	100W	100W	100W
Ripple & Noise (max.)	200mVp-p	250mVp-p	250mVp-p	250mVp-p
Voltage accuracy	±2.0%	±2.0%	±2.0%	±2.0%
Linear adjustment rate	±0.5%	±0.5%	±0.5%	±0.5%
Load adjustment rate	±0.5%	±0.5%	±0.5%	±0.5%
Start, rise time	1000ms, 100ms/230VAC, 1100ms, 100ms/115VAC
Hold time	10ms/115VAC, 230VAC
Voltage range	100 ~ 277VAC
Frequency range	47 ~ 63Hz
Power factor	PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.9/277VAC (Full load)
Total harmonic distortion	THD< 20% (@ load ≧50%/115VC,230VAC; @ load ≧75%/277VAC)
Efficiency Vin: 115VAC	≧90.55%	≧90.78%	≧91.28%	≧91.78%
Efficiency Vin: 230VAC	≧91.38%	≧91.56%	≧92.06%	≧92.56%
AC current	1.25A
Inrush current	Cold start 75A(width=350us measured at 50% l peak)/230Vac
Leakage current	< 1 mA
No load/standby power consumption	< 3.6W
Over current protection	95 ~ 110% constant current limit, automatic recovery after load abnormal condition
Short circuit protection	Burp mode, automatic recovery after load abnormal conditions
Over voltage protection	13 ~ 16V	26 ~ 32V	39 ~ 47V	52 ~ 63V
Over temperature protection	Turn off output voltage, restart and resume
Working Temperature	T case=-40 ~ +50℃
Max. Case Temperature	T case=+90℃
Working Humidity	20 ~ 95% RH, non-condensing
Storage Temp., Humidity	-40 ~ +90℃, 10 ~ 95% RH
Temp. Coefficient	±0.03%/℃ (0 ~60℃)
Vibration	10~500Hz, 5G 12min./1 cycle, period for 72 min. each along X,Y,Z axes
Safety standards	UL8750+UL1310
Withstand voltage	I/P-O/P:1.88KVac
Isolation resistance	I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION	Confirms to FCC

Technical Specifications

Dimming Style	Series	Power	Input voltage	Output voltage& Output current				Size
Dimming Style	Series	Power	Input voltage	12V	24V	36V	48V	Size
5 in 1 dimming	MVP	100W	100~277V 50/60Hz	4.16A*2	2.08A*2	1.38A*2	1.04A*2	19910340mm
		180W	100~277V 50/60Hz	5A*3	/	/	/	21611340mm
		192W	100~277V 50/60Hz	/	4A*2	2.67A*2	2A*2	21611340mm
		240W	100~277V 50/60Hz	5A*4	/	/	/	24812340mm
		288W	100~277V 50/60Hz	/	4A*3	2.67A*3	2A*3	24812340mm
		300W	100~277V 50/60Hz	5A*5	/	/	/	24812340mm
		384W	100~277V 50/60Hz	/	4A*4	2.67A*4	2A*4	24812340mm

Custom labeling, packaging, and cases are available. We provide OEM and ODM services.
