Class 2 Non Dimmable DC 24V100W LED Driver With OCP Protection ETL CE Certified
Basic Properties
Trading Properties
Product Summary
Product Details
Non Dimmable LED Driver 24V 100W
,Class 2 LED Driver OCP Protection
,ETL Certified LED Power Driver
Product Description
| Attribute | Value |
|---|---|
| Warranty | 5-Year |
| Lighting Solutions Service | Lighting and circuitry design |
| Output Power | 100W |
| Output Type | Single Phase |
| Input Voltage | 100V-120V |
| Output Frequency | 50/60Hz |
| Output Voltage | 24V |
| Efficiency | >90% |
| Protections | OCP, OVP, SCP, OTP |
| Certification | ETL CE ROHS UL Class2 |
| Dimensions | 200*85*37mm (L*W*H) |
| Material | Iron case |
| Color Options | Silver, Black, White, Blue, Gray or custom |
| Application | LED Street Lighting |
The KSPOWER E-series non-dimmable LED driver provides a 80W constant voltage solution with single channel output. Designed for professional lighting applications, it accepts AC input voltage from 100V to 120V and delivers stable 24V DC output with junction box connection.

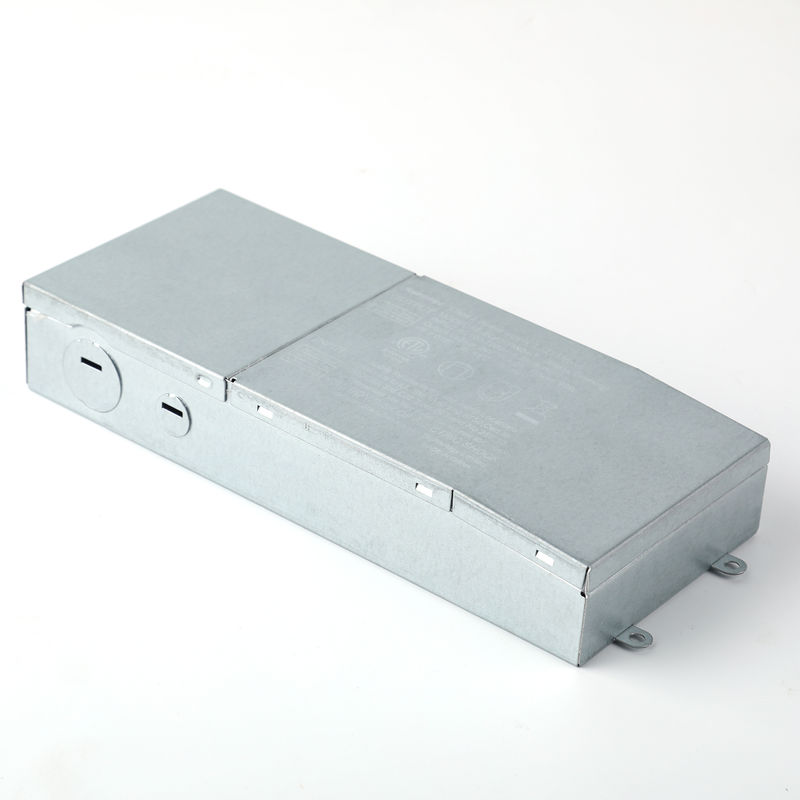

This Class 2 LED power supply features a low-profile metal iron case with multiple safety protections, making it suitable for both indoor and outdoor lighting applications. The driver is compatible with single color or RGB light strips, string lights, and various electronic devices including security cameras and audio/video equipment.
- Durable metal iron case with junction box
- 100V-120V AC input range
- Single channel constant voltage output
- High power factor correction (PFC)
- Class 2 driver type for safety
- Flicker-free output with smooth ripple voltage
- Comprehensive protection: short circuit, overload, over voltage, over temperature
- 5-year manufacturer warranty
- Certified to ETL cETL UL1310 standards
- Hiccup mode protection with auto-recovery
Triac & Phase-cut/Non-dimming,two modes optional
- Samples available upon request
- Shipping options: DHL/UPS/FedEx/TNT, Land, Ocean
- Standard packaging: Each unit in inner brown box, 50 units per carton
| Package Type | Pieces per Carton | Unit Weight |
| OEM package | 50 | 0.26KG |
| Inner Box Dimensions | Carton Dimensions | Gross Weight |
| 155*85*35mm | 455*370*175mm | 14KG |
