24V 60W Street Light LED Driver 2.5A Single Output ETL/CETL Protections OCP

Brand Name:	KSPOWER
Model Number:	KSE-100W24
MOQ:	2 pieces
Price:	$11.58/pieces 2-499 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

China (Mainland)

Warranty(Year):

5-Year

Lighting Solutions Service:

Lighting And Circuitry Design

Output Power:

60W

Output Type:

Single Phase

Input Voltage:

100V-120V

Output Frequency:

50/60Hz

Product Name:

Single Output 24V 60W Class2 LED Driver

Output Voltage:

24V

Efficiency:

>90%

Protections:

OCP, OVP, SCP, OTP

Warranty:

5 Years

Certification:

ETL CE ROHS UL Class2

Dimension:

200*85*37mm (L*W*H)

Material:

Iron Case

Color:

Silver, Black, White, Blue, Gray Or Custom.

Application:

LED Street Lighting

Highlight:

24V 60W Street Light LED Driver

2.5A Street Light LED Driver

Protections OCP Non Dimmable LED Driver

Product Description

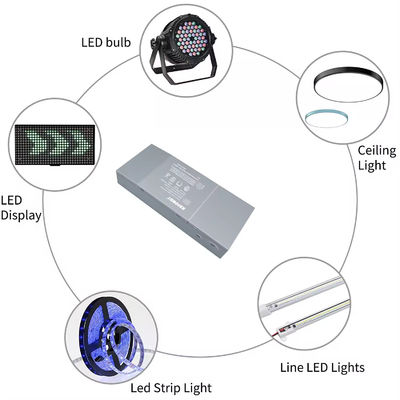

The KSPOWER - E series non dimmable led driver 96 Watt 100 Watt is one constant voltage solution, single channel, accept AC input voltage range from 100V to 120V, and 24 volt output voltage with junction box. The switching led power supply is a constant voltage 24V power supply, which is compatible with a single color or RGB light strip, string light, wireless router, ADSL Cat, HUB, switch, security camera, speaker, receiver and audio/video power supply. The class 2 led power transformer use low profile metal iron case, featuring Class 2 Class P design and safety protections for indoor use, the 24 vdc led driver provide 5 years warranty and outstanding led performance.

Products Description

NO.	KSE-60W24
Input Voltage	100V-120V AC 60Hz
Output Voltage	24V
Rated Current	2.5A
Rated Power	60W
Working Temperature	-40℃ to +50℃
Working Relative Humidity	10%-100%Rh
Dimension(LWH)	2008537mm / 7.883.351.46in
Dimming method	No Dimming

Features:

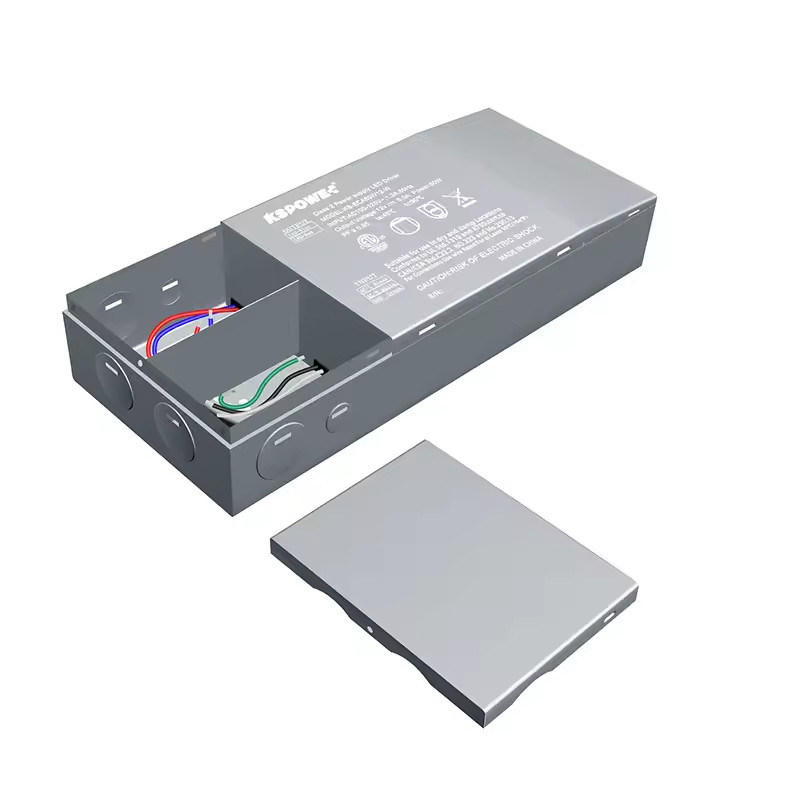

* Metal Iron Case with junction box
* 100V-120V AC Input
* Single channel & Constant Voltage mode power supply
* High PFC function
* Driver type: Class 2
* Flicker-Free, Smooth Ripple Output Voltage
* Automatic protection for short circuit / overload / over voltage / limited current / over temperature.
* 5-Years Warranty
* Certification: ETL cETL UL1310
* Protection type: Hiccup mode, auto-recovery after fault condition is removed.

Note: Accept LOGO/color/package/case customization, OEM and ODM service

Company Profile

Working Room

Specification:

Nearly ¥3 Million Is Spent On Certification, Just To Make Customers Trust Our Quality

Exhibition

Product packaging

1.Sample is available.

2.Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others.
3. for 60W power adapter : each one put in one small inner brown box, then 50 pcs put in one standard carton.

Package	Piece/Carton(pcs)	Piece Weight(KG)
OEM package	50	0.26
Dimension/Brown Box(mm)	Dimension/Carton(mm)	Gross Weight/Carton(KG)
1558535	455370175	14
