24V 40W Non Dimmable Driver Metal Iron Case With Junction Box DC LED Driver

Brand Name:	KSPOWER
Model Number:	KSE-40W24
MOQ:	2 pieces
Price:	$7.13/pieces 2-499 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

China (Mainland)

Warranty(Year):

3-Year

Lighting Solutions Service:

Lighting And Circuitry Design

Output Power:

40W

Output Type:

Single Phase

Input Voltage:

100V-120V

Output Frequency:

50/60Hz

Output Current:

1.67A

Product Name:

Metal Iron With Junction Box 24V 40W Dc Led Driver

Output Voltage:

24V

PF Value:

>0.95

Efficiency:

>85%

Protections:

OCP, OVP, SCP, OTP

Warranty:

3 Years

Certification:

ETL CE ROHS UL Class2

Dimension:

200*85*37mm (L*W*H)

Material:

Iron Case

Color:

Silver, Black, White, Blue, Gray Or Custom.

Highlight:

24V 40W Non Dimmable Driver

Metal Iron Case Non Dimmable Driver

Junction Box DC LED Driver

Product Description

Custom Electron White Silvery High PFC Metal Iron LED Driver with Junction Box

Product Specifications

Attribute	Value
Warranty	3-Year
Output Power	40W
Input Voltage	100V-120V
Output Voltage	24V
Output Current	1.67A
PF Value	>0.95
Efficiency	>85%
Protections	OCP, OVP, SCP, OTP
Certification	ETL CE ROHS UL Class2
Dimensions	2008537mm (LWH)
Material	Iron case
Available Colors	Silver, Black, White, Blue, Gray or custom

Product Description

The KSPOWER E-series non-dimmable LED driver provides a 40W constant voltage solution with single channel operation. This switching power supply accepts AC input voltage from 100V to 120V and delivers 24V output voltage through a junction box.

This Class 2 LED power transformer features a low-profile metal iron case with Class 2 Class P design and comprehensive safety protections for indoor use. It's compatible with single color or RGB light strips, string lights, wireless routers, security cameras, and various audio/video equipment.

Technical Specifications

Model Number	KSE-40W24
Input Voltage	100V-120V AC 60Hz
Output Voltage	24V
Rated Current	1.67A
Rated Power	40W
Working Temperature	-40℃ to +50℃
Working Humidity	10%-100%Rh

Key Features

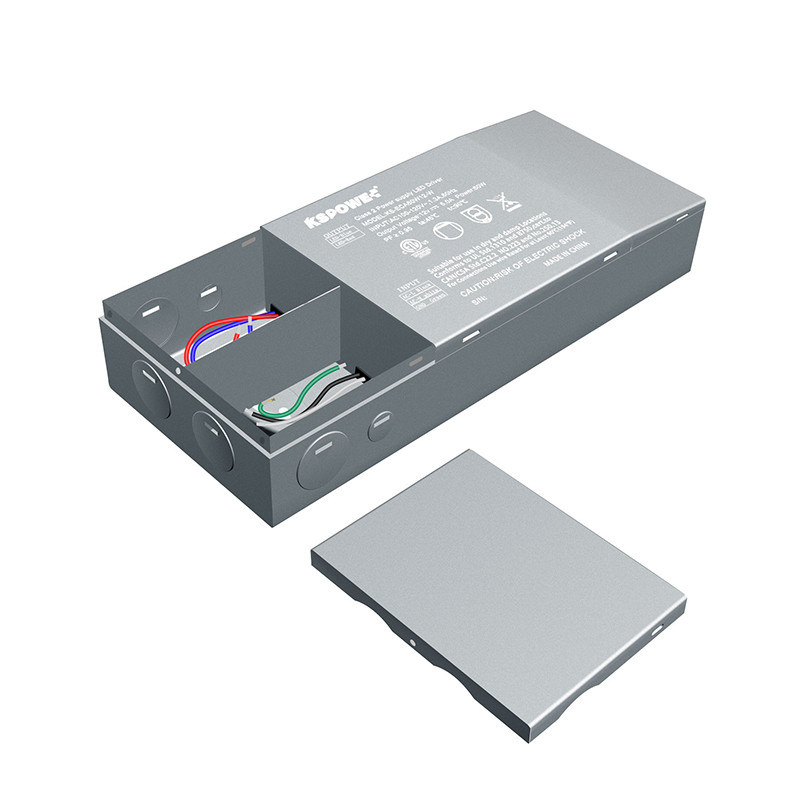

Durable metal iron case with junction box
100V-120V AC input range
Single channel constant voltage operation
High power factor correction (PFC >0.95)
Class 2 driver type for safety
Flicker-free output with smooth ripple voltage

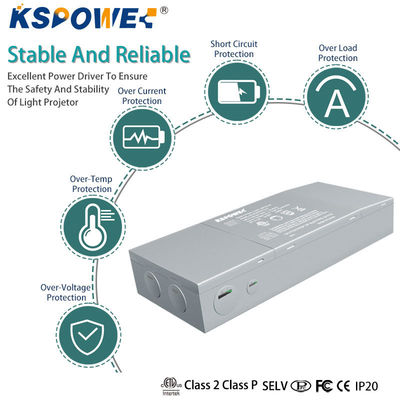

Comprehensive protection: short circuit, overload, over voltage, over temperature
5-year warranty (3 years standard + 2 years extended)
Certified to ETL, cETL, UL1310 standards
Hiccup mode protection with auto-recovery

Note: Custom logo, color, packaging, and case modifications available. OEM and ODM services offered.

Connection Diagrams

This junction box LED driver is ideal for LED strip lights, panel lights, RGB lighting, and various indoor lighting applications in the North American market.
