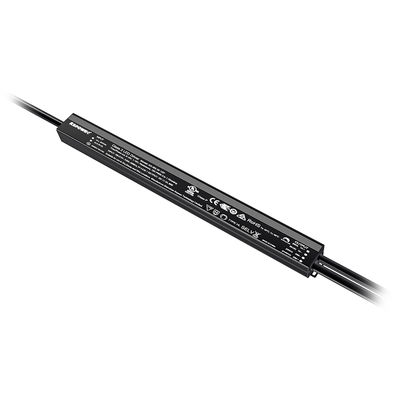

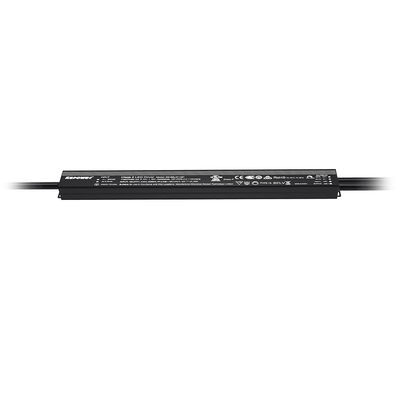

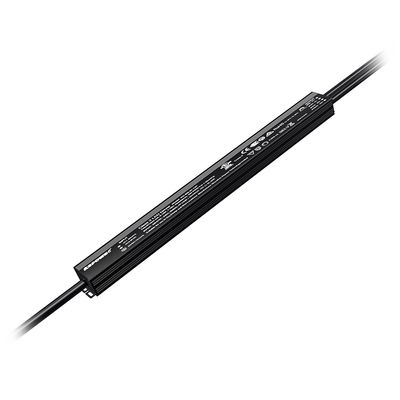

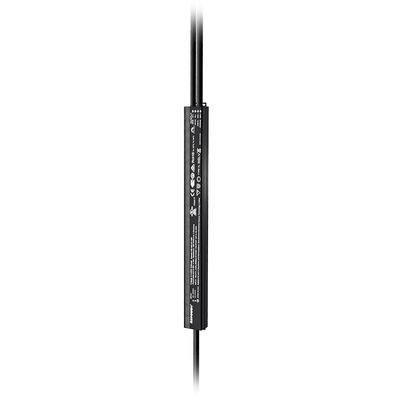

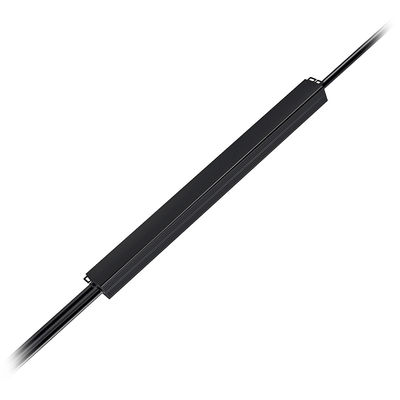

12V 60W IP65 Non-Dimmable LED Driver with Aluminum Case for LED Strip Lights

Brand Name:	KSPOWER
Model Number:	KS-60LW-xx
MOQ:	2 pieces
Price:	$1.65-13.20/pieces
Payment Terms:	T/T
Supply Ability:	300000pcs/monthly

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

UL/cUL Class2 FCC CE GS ENEC ROHS etc.

Warranty(Year):

5-Year

Lighting Solutions Service:

Lighting And Circuitry Design

Output Power:

40W / 60W / 80W /100W

Output Type:

Single Phase

Input Voltage:

100-277V

Output Frequency:

50/60Hz

Product Name:

12v100w Slim LED Driver

Application:

LED Strip Light,Pendants, Linears,Cove Lights

Material:

Aluminum Case

Warranty:

5 Years

Protection:

OCP, OVP, SCP, OTP

IP Rate:

IP65

Efficiency:

≥89%

Output:

12V24V36V48V

Packaging Details:

Brown box and Carton

Highlight:

High PFC LED Strip Driver

Single Output 60W LED Strip Driver

Swimming Pool 12v LED power supply

Product Description

12V 60W Slim LED Strip Driver For Swimming Pool Aluminium shell

The KSPOWER - L series Non-dimmable LED driver is a constant voltage solution with single channel operation. It accepts universal AC input voltage ranging from 100V to 277V, with optional output voltages of 12V, 24V, 36V, or 48V. Featuring high operating efficiency and PFC function, this Class P dimming power supply uses a low-profile metal aluminum case suitable for dry and damp environments, making it ideal for LED strips, signage, billboards, and landscape lighting.

Key Features

Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
Single Channel & Constant Voltage mode
Output Voltage: 12V/24V/36V/48V
Driver Type: Class 2 Class P
Enclosure: LISTED Enclosure with input and output wire
Environmental: Dry and Damp
Wiring Compartments with Knock-Outs for Clean and Easy Installation
Current Limiting Overload Protection
Flicker-Free Operation
Smooth Ripple Free Output Voltage
IP67 Rated Enclosure for Indoor and Outdoor Use
5-Year Warranty
UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL

Technical Specifications

Dimming Type	Series	Power	Model (xx=output voltage)	Output voltage & Output current	Input voltage	Size
Non-Dimming	L	30W	KS-30LW-xx	2.5A \| 1.25A \| 0.83A \| 0.62A	100~277V 50/60Hz	2703224.5mm
		40W	KS-40LW-xx	3.33A \| 1.66A \| 1.11A \| 0.83A
		60W	KS-60LW-xx	5A \| 2.5A \| 1.66A \| 1.25A		3103224.5mm
		80W	KS-80LW-xx	6.66A \| 3.33A \| 2.22A \| 1.66A
		96W	KS-96LW-24	/ \| 4A \| / \| /		3553224.5mm
		100W	KS-100LW-xx	8.33A \| 4.16A \| 2.78A \| 2.08A
