150W High Efficiency LED Driver with Single Phase Output for Reliable Outdoor Lighting

Brand Name:	KSPOWER
Model Number:	KS-150A-xx
MOQ:	2 pieces
Price:	$16.98-22.69/pieces
Payment Terms:	T/T
Supply Ability:	300000pcs/monthly

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

UL/cUL Class2 FCC CE GS ENEC ROHS etc.

Warranty(Year):

5-Year

Lighting Solutions Service:

Lighting And Circuitry Design

Output Power:

40W / 60W / 80W /100W/120W/150W/180W/200W/240W/300W/320W

Output Type:

Single Phase

Input Voltage:

100-277V

Output Frequency:

50/60Hz

Application:

LED Strip Light,Pendants, Linears,Cove Lights

Material:

Aluminum Case

Warranty:

5 Years

Protection:

OCP, OVP, SCP, OTP

IP Rate:

IP65

Efficiency:

≥89%

Output:

12V24V36V48V

Packaging Details:

Brown box and Carton

Highlight:

150W Output LED Driver

IP67 Waterproof LED Driver

Aluminum Case LED Power Supply

Product Description

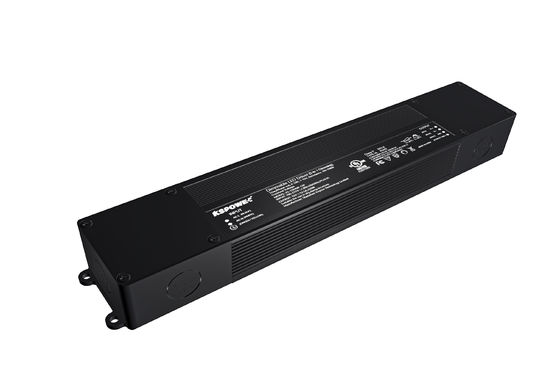

IP67 150W Waterproof LED Driver, Reliable Power for Outdoor & Garden Lights

The KSPOWER - H series Non-dimmable LED driver is a constant voltage solution with single channel operation. It accepts universal AC input voltage ranging from 100V to 277V, with optional output voltages of 12V, 24V, 36V, or 48V. Featuring high operating efficiency and PFC function, this Class P dimming power supply uses a low-profile metal aluminum case suitable for dry and damp environments, making it ideal for LED strips, signage, billboards, and landscape lighting.

Key Features

Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
Single Channel & Constant Voltage mode
Output Voltage: 12V/24V/36V/48V
Driver Type: Class 2 Class P
Enclosure: LISTED Enclosure with input and output wire
Environmental: Dry and Damp
Wiring Compartments with Knock-Outs for Clean and Easy Installation
Current Limiting Overload Protection
Flicker-Free Operation
Smooth Ripple Free Output Voltage
IP67 Rated Enclosure for Indoor and Outdoor Use
5-Year Warranty
UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL

Technical Specifications

Dimming Type	Series	Power	Model (xx=output voltage)	Output voltage & Output current	Input voltage	Size
Non-dimming	H	40W	KS-40A-xx	3.3A \| 1.67A \| 1.11A \| 0.83A	100~277V 50/60Hz	1885836mm
		60W	KS-60A-xx	5A \| 2.5A \| 1.67A \| 1.25A		1885836mm
		80W	KS-80A-xx	6.67A \| 3.33A \| 2.22A \| 1.67A		1885836mm
		96W	KS-96A-24	/ \| 4A \| / \| /		2135836mm
		100W	KS-100A-xx	8.33A \| 4.16A \| 2.78A \| 2.08A		2135836mm
		120W	KS-120A-xx	10A \| 5A \| 3.33A \| 2.5A		2135836mm
		150W	KS-150A-xx	12.5A \| 6.25A \| 4.16A \| 3.13A		2346841mm
		180W	KS-180A-12	15A \| / \| / \| /		2346841mm
		200W	KS-200A-xx	16.66A \| 8.33A \| 5.55A \| 4.16A		2346841mm
		240W	KS-240A-xx	20A \| 10A \| 6.66A \| 5A		2586841mm
Non-dimming	H	300W	KS-300A-24	/ \| 12.5A \| / \| /	100~277V 50/60Hz	2586841mm
Non-dimming	H	320W	KS-320A-xx	/ \| 13.33A \| 8.88A \| 6.66A	100~277V 50/60Hz	2586841mm
