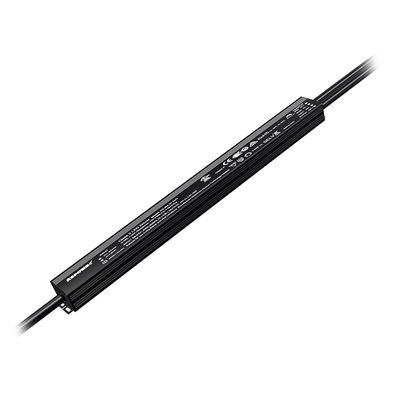

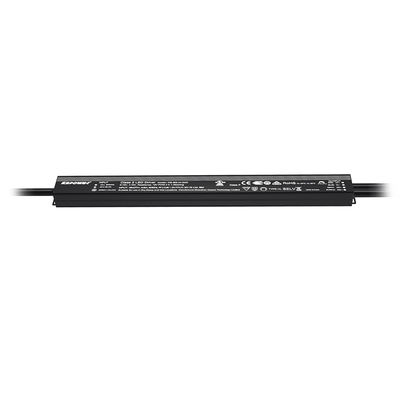

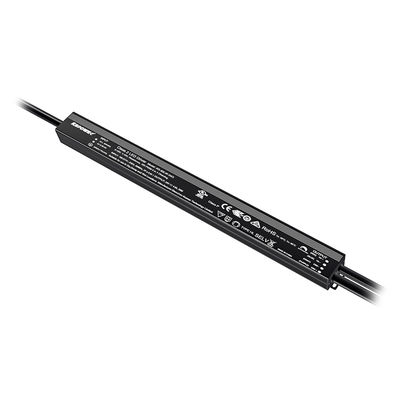

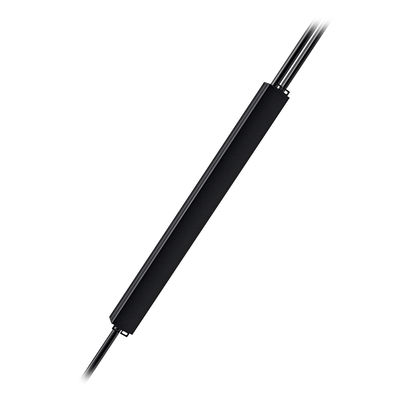

Triac Dimmable Driver 100% Output 24V 96W Class 2 Backlight Led Transformer Driver

Triac Dimmable Driver 100% Output 24V 96W Class 2 Backlight Led Transformer Driver
Quality Triac Dimmable Driver 100% Output 24V 96W Class 2 Backlight Led Transformer Driver factory
Quality Triac Dimmable Driver 100% Output 24V 96W Class 2 Backlight Led Transformer Driver factory
Quality Triac Dimmable Driver 100% Output 24V 96W Class 2 Backlight Led Transformer Driver factory
Quality Triac Dimmable Driver 100% Output 24V 96W Class 2 Backlight Led Transformer Driver factory
Quality Triac Dimmable Driver 100% Output 24V 96W Class 2 Backlight Led Transformer Driver factory
Quality Triac Dimmable Driver 100% Output 24V 96W Class 2 Backlight Led Transformer Driver factory
Quality Triac Dimmable Driver 100% Output 24V 96W Class 2 Backlight Led Transformer Driver factory

Basic Properties

country of origin
Guangdong, China
brand name
KSPOWER
certificate
UL cUL CE Class P ENEC Gs TYPE HL...
product model
KS-96LW-24T

Trading Properties

moq
2 pieces
unit price
The price is negotiable
payment method
T/T

Product Summary

Triac Dimmable Driver 100% Output 24V 96W Class 2 Backlight Led Transformer Driver Products Description: Triac phase-cut dimming UL Class2 96W 80W 60W 220v 12v ac pool light transformer led dimmer 24v 12v pool light transformers The KSPOWER - LT series triac dimmable led driver 60 80 96 Watt is one ...

Product Details

Highlight:

Triac dimmable LED driver 24V

,

96W Class 2 transformer driver

,

Backlight LED driver with dimming
Warranty(Year):
5-Year
Color:
Black, Silver
Current:
4.0A
Lighting solutions service:
Lighting And Circuitry Design
Input Voltage(V):
100-277V
Application:
Street Light, Tunnel Light, Wall Lamp,Spot Light
Warranty:
5 Years
Output Mode:
Pwm Output
Efficiency:
95%
Output:
24V
Material:
Aluminium Case
IP Rate:
IP65; IP67
Dimming mode:
Phase-Cut/Triac Dimming

Product Description

Triac Dimmable Driver 100% Output 24V 96W Class 2 Backlight Led Transformer Driver

Products Description:
Triac phase-cut dimming UL Class2 96W 80W 60W 220v 12v ac pool light transformer led dimmer 24v 12v pool light transformers
The KSPOWER - LT series triac dimmable led driver 60 80 96 Watt is one constant voltage solution, single channel, accept universal AC input voltage range from 100V to 277V, output voltage 12Volt 24Volt compatible with most AC wall dimmers including Lutron, Leviton and most other household dimmers. The class 2 dimming power transformer use low profile metal aluminum case, dry and damp, makes the dimmable led driver power solutions for LED strips, LED sign, billboard and landscape lighting. Featuring 2K frequency PWM output and IP65 waterproof environment protection rated for indoor or outdoor use, the phase dimmable led driver provide 5 years warranty and outstanding led dimming performance.

Features:
* Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
* Single Channel & Constant Voltage mode
* Output Voltage: 12Volt/24Volt/36Volt/48Volt
* Driver Type: Class 2 Class P
* Enclosure: LISTED Enclosure with input and output wire
* Dimming: Triac/ Phase-cut, PWM, 0/1-10V or MLV / ELV Resistance Dimmable Available
* Environmental: Dry and Damp
* Wiring Compartments with Knock-Outs for Clean and Easy Installation
* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage
* IP67 Rated Enclosure for Indoor and Outdoor Use
* 5-Years Warranty
* UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL


Dimming Connect Drawing

Triac Dimmable Driver 100% Output 24V 96W Class 2 Backlight Led Transformer Driver



Product packaging
1.Sample is available.
2.Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others.
3. for 60W power adapter : each one put in one small inner brown box, then 50 pcs put in one standard carton.


Triac Dimmable Driver 100% Output 24V 96W Class 2 Backlight Led Transformer Driver

Dimming Type Series Power Model
(xx=output voltage)		 Output voltage&
Output current		 Input voltage Size
12V 24V 36V 48V
Triac/Phase-cut LT 30W KS-30LW-xxT 2.5A 1.25A 0.83A 0.62A 100~277V
50/60Hz		 270*32*24.5mm
40W KS-40LW-xxT 3.33A 1.66A 1.11A 0.83A
60W KS-60LW-xxT 5A 2.5A 1.67A 1.25A 310*32*24.5mm
80W KS-80LW-xxT 6.66A 3.33A 2.22A 1.66A
96W KS-96LW-24T / 4A / / 355*32*24.5mm
100W KS-100LW-xxT 8.33A 4.16A 2.78A 2.08A


Note:Any custom label/package/case is acceptable, provide OEM and ODM service.
