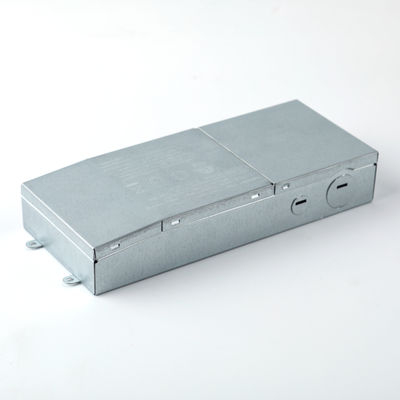

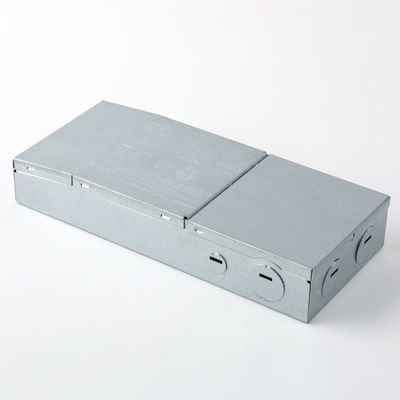

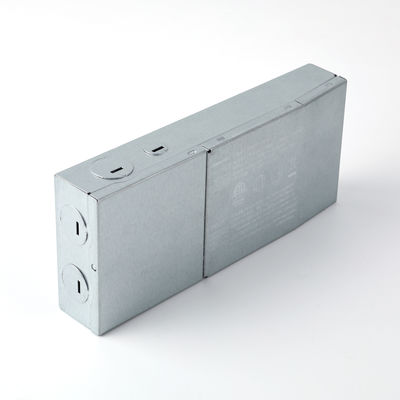

0-10V PWM Dimmable LED Driver Ultra Slim 20W To 96W 12V 24V DC LED Power Supply

0-10V PWM Dimmable LED Driver Ultra Slim 20W To 96W 12V 24V DC LED Power Supply

Brand Name:	KSPOWER
Model Number:	KS
MOQ:	100 pieces
Price:	$5.80-15.50/pieces
Payment Terms:	T/T
Supply Ability:	300000/month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

UL/ cUL/CE/ TUV-GS/ ROHS/FCC/ Class2

Warranty(Year):

5-Year

Lighting Solutions Service:

Lighting And Circuitry Design

Output Power:

20W 30w 40w 60w 80w 96w

Output Type:

PWM

Input Voltage:

100-277V

Output Frequency:

50/60Hz

Output Current:

0.62A-4.0A

Output:

12V /24V

Dimming Mode:

Triac/ Phase-cut

Application:

LED Lighting

Warranty:

5 Years

Color:

Grey/White

Efficiency:

≥ 91%

Material:

Iron Case

IP Rate:

IP20

Packaging Details:

Brown box and Carton

Highlight:

10V PWM Dimmable LED Driver

Ultra Slim PWM Dimmable LED Driver

20W To 96W DC LED Driver

Product Description

0-10V PWM Dimmable LED Driver Ultra Slim 20W To 96W 12V 24V DC LED Driver

Product Description

20W 30W 40W 60W 80W 96W 100W LED Power Supply lighting transformer 12V 24V 36V 48V DC triac LED driver for LED light

Input Voltage	120Vac/230Vac/100-120Vac/200-240Vac (Optional)
Power Factor	PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.9/277VAC, 80% with load
Output Voltage	12V/24V/36V/48V
Rated Current	0.62A-4.0A
Rated Power	20W 30W 40W 60W 80W 96W
Ripple & Noise (max.)	200mVp-p/250mVp-p
Certification	ETL/cETL

Key Features

Optional AC input voltage: 100-120Vac, 200-240Vac, 230Vac, 100-277VAC
Efficiency up to 91%
Built-in active PFC function
Single channel & constant voltage mode and PWM style output
Protection: OCP, OVP, SCP, OTP
Limited Power Source
Certifications: ETL, cETL, cUL, RoHS, CE, ENEC, GS, Class P, SAA Approved
Function options: Non-dimmable or Triac/Phase-cut Dimmable
Typical lifetime > 50,000 hours
2/3/5 years warranty

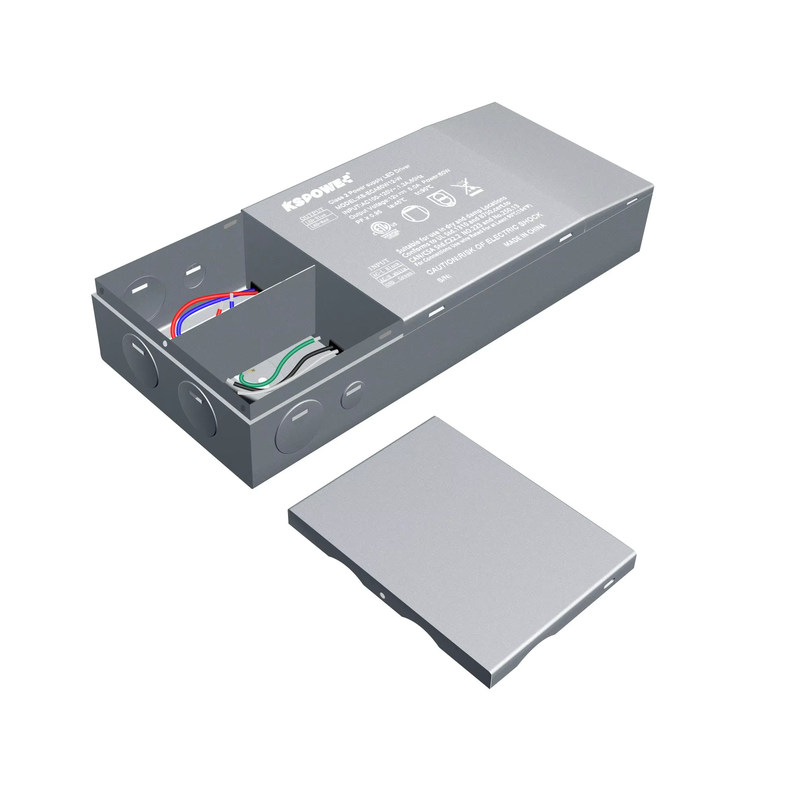

Available with or without integrated Junction Box
Optional: IP20 Nema 3R Rated Enclosure for Indoor and Outdoor Use
Wiring Compartments with Knock-Outs for Clean and Easy Installation

Product Specifications

Dimming Type	Series	Power	Model (xx=output voltage)	Output Voltage	Output Current	Input Voltage	PF	Location	Size
Triac/Phase-cut	ET	20W	ZH-EAC20W12-T	12V	1.7A	100-120V 60Hz&200-240V 50Hz	≥0.95	Dry/Damp/Wet	2008537mm
		20W	ZH-EAC20W24-T	24V	0.84A	100-120V 60Hz&200-240V 50Hz	≥0.95	Dry/Damp/Wet	2008537mm
		40W	ZH-EAC40W12-T	12V	3.34A	100-120V 60Hz&200-240V 50Hz	≥0.95	Dry/Damp/Wet	2008537mm
		40W	ZH-EAC40W24-T	24V	1.67A	100-120V 60Hz&200-240V 50Hz	≥0.95	Dry/Damp/Wet	2008537mm
		60W	ZH-EAC60W12-T	12V	5A	100-120V 60Hz&200-240V 50Hz	≥0.95	Dry/Damp/Wet	2008537mm
		60W	ZH-EAC60W24-T	24V	2.5A	100-120V 60Hz&200-240V 50Hz	≥0.95	Dry/Damp/Wet	2008537mm
		80W	ZH-EAC80W24-T	24V	3.33A	100-120V 60Hz&200-240V 50Hz	≥0.95	Dry/Damp/Wet	2008537mm
		96W	ZH-EA100W24-T	24V	4A	100-120V 60Hz&200-240V 50Hz	≥0.95	Dry/Damp/Wet	2008537mm
