300 Watts Triac PWM Dimmer For 110v LED Strip Light And Outdoor Landscape Lighting
Basic Properties
Trading Properties
Product Summary
Product Details
300W Triac dimmer for LED strips
,110V PWM dimmer landscape lighting
,Triac dimmable driver outdoor lights
Product Description

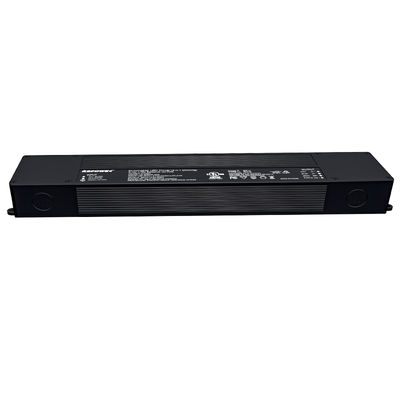

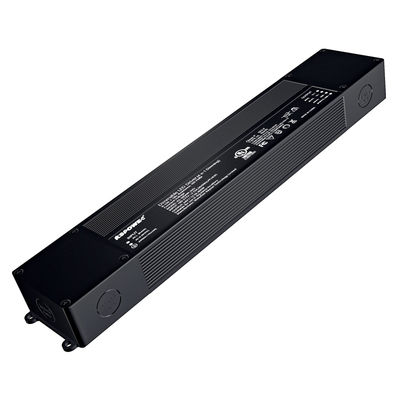

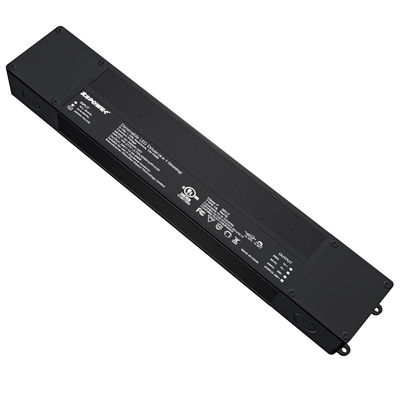

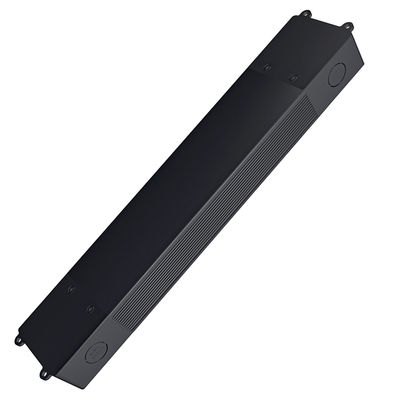

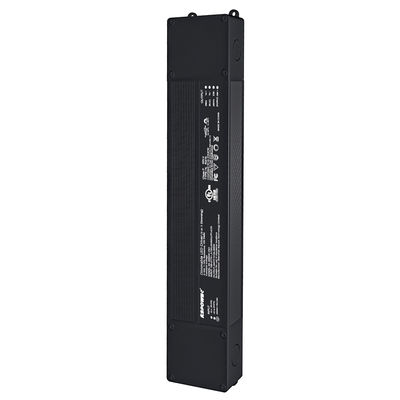

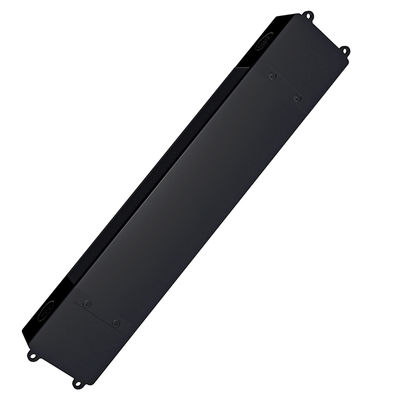

The phase dimming led power supply use low profile metal aluminum case with or without junction box makes the ac dimmable led power supply solutions for LED strips, LED sign, billboard and landscape lighting. Featuring 10K frequency PWM output and IP67 rated waterproof environment protection rated for indoor or outdoor use, the led lights power supply provide 5 years warranty and outstanding led dimming performance.
* Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
* Single Channel & Constant Voltage mode
* Output Voltage: 12Volt/24Volt/36Volt/48Volt
* Driver Type: Class 2 Class P
* Enclosure:LISTED Enclosure with Junction Box / LISTED Enclosure without Junction Box
* Dimming: TRIAC or MLV / ELV Phase Dimmable Available
* Environmental: Dry and Damp
* Wiring Compartments with Knock-Outs for Clean and Easy Installation
* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage
* IP67 Rated Enclosure for Indoor and Outdoor Use
* 5-Years Warranty
* UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL
| Dimming Type | Series | Power | Model (xx=output voltage) |
Output voltage& Output current |
Input voltage | Size | |||
| 12V | 24V | 36V | 48V | ||||||
| Triac/Phase-cut | HTJ | 40W | KS-40AW-xxT | 3.3A | 1.67A | 1.11A | 0.83A | 100~277V 50/60Hz |
297*58*36mm |
| 60W | KS-60AW-xxT | 5A | 2.5A | 1.67A | 1.25A | ||||
| 80W | KS-80AW-xxT | 6.67A | 3.33A | 2.22A | 1.67A | ||||
| 96W | KS-96AW-24T | / | 4A | / | / | 322*58*36mm | |||
| 100W | KS-100AW-xxT | 8.33A | 4.16A | 2.78A | 2.08A | ||||
| 120W | KS-120AW-xxT | 10A | 5A | 3.33A | 2.5A | ||||
| 150W | KS-150AW-xxT | 12.5A | 6.25A | 4.16A | 3.13A | ||||
| 180W | KS-180AW-12T | 15A | / | / | / | 343*68*41mm | |||
| 200W | KS-200AW-xxT | 16.66A | 8.33A | 5.55A | 4.16A | ||||
| 240W | KS-240AW-xxT | 20A | 10A | 6.66A | 5A | 367*68*41mm | |||
| 300W | KS-300AW-24T | / | 12.5A | / | / | ||||
| 320W | KS-320AW-xxT | / | 13.33A | 8.88A | 6.66A | ||||
