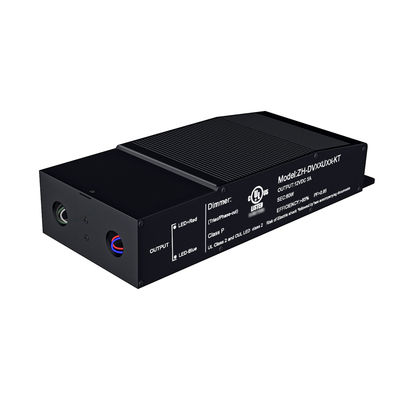

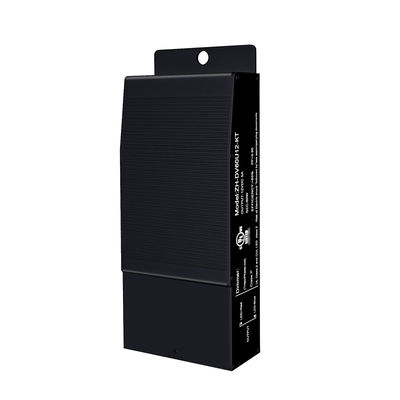

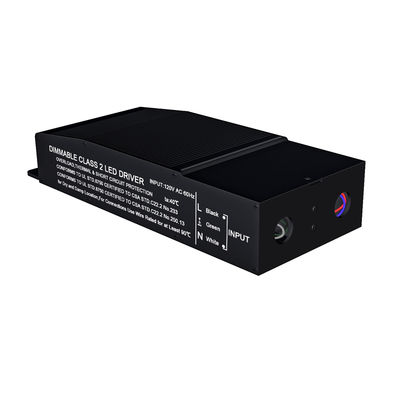

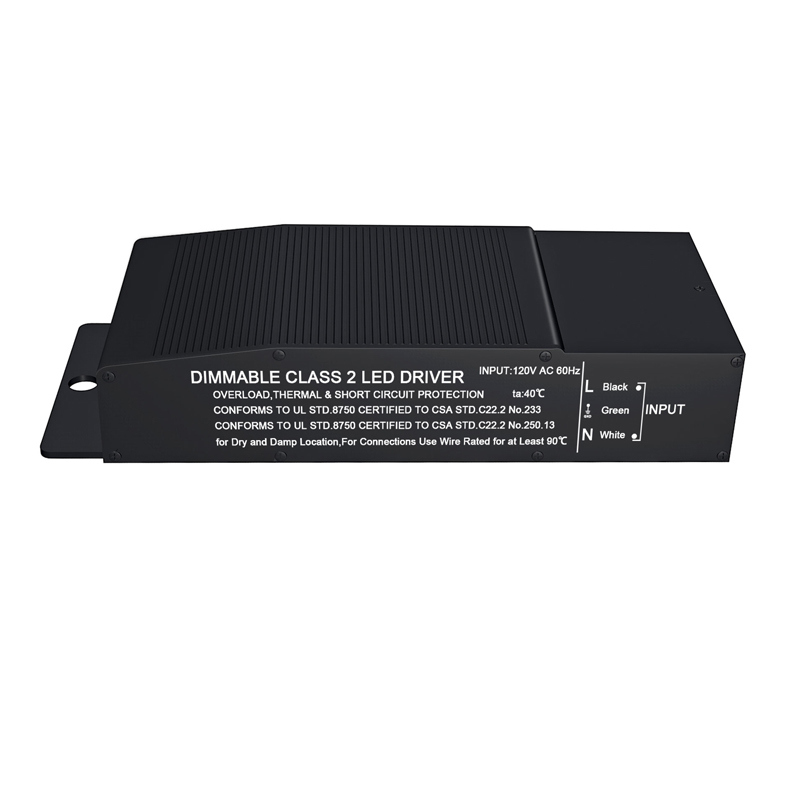

Backlight 40W Triac Dimmable Driver High PFC 24V Dimmable Led Power Supply

Backlight 40W Triac Dimmable Driver High PFC 24V Dimmable Led Power Supply
Quality Backlight 40W Triac Dimmable Driver High PFC 24V Dimmable Led Power Supply factory
Quality Backlight 40W Triac Dimmable Driver High PFC 24V Dimmable Led Power Supply factory
Quality Backlight 40W Triac Dimmable Driver High PFC 24V Dimmable Led Power Supply factory
Quality Backlight 40W Triac Dimmable Driver High PFC 24V Dimmable Led Power Supply factory
Quality Backlight 40W Triac Dimmable Driver High PFC 24V Dimmable Led Power Supply factory
Quality Backlight 40W Triac Dimmable Driver High PFC 24V Dimmable Led Power Supply factory
Quality Backlight 40W Triac Dimmable Driver High PFC 24V Dimmable Led Power Supply factory
Quality Backlight 40W Triac Dimmable Driver High PFC 24V Dimmable Led Power Supply factory
Quality Backlight 40W Triac Dimmable Driver High PFC 24V Dimmable Led Power Supply factory

Basic Properties

country of origin
Guangdong, China
brand name
KSPOWER
product model
KSNT-96W24

Trading Properties

moq
10 pieces
unit price
The price is negotiable

Product Summary

Backlight 40W Triac Dimmable Driver High PFC 24V Dimmable Led Power Supply Products Description: Custom nema 3R flicker free electronic Christmas led lights class2 24v 96w triac dimmable rgb waterproof led driver Dimmable driver for use with magnetic low voltage or Lutron CL series wall dimmer. Also ...

Product Details

Highlight:

40W Triac dimmable LED driver

,

24V dimmable power supply

,

high PFC LED driver
Warranty(Year):
5-Year
Lighting solutions service:
TRIAC Dimming
Output Power:
96W
Output Type:
PWM
Input Voltage:
120V & 230VAC
Output Frequency:
50/60Hz
Output Current:
4000mA
Product name:
Class2 Triac Dimmable 24v 96w Led Driver
Output Voltage:
24V 96W
dimmable type:
Triac /phase-cut Dimming
Protections:
OCP, OVP, SCP, OTP
certification:
CUL / UL 8750 CLASS 2 CE
PF value:
>0.95
efficiency:
>90%
warranty:
5 Years
dimension:
200*85*37mm (L*W*H)
material:
Aluminium Case

Product Description

Backlight 40W Triac Dimmable Driver High PFC 24V Dimmable Led Power Supply

Products Description:
Custom nema 3R flicker free electronic Christmas led lights class2 24v 96w triac dimmable rgb waterproof led driver

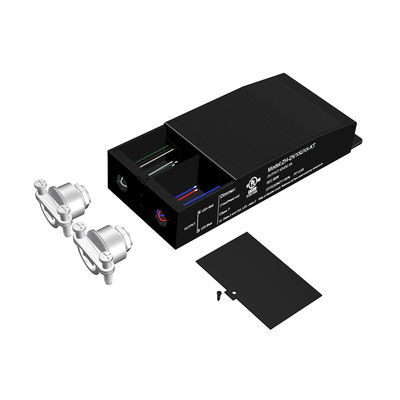

Dimmable driver for use with magnetic low voltage or Lutron CL series wall dimmer. Also works with home dimming systems with appropriate dimming module. Driver has one input and one output. Features include constant voltage design. Encased in a high-quality NEMA 3R metal case enclosure that includes 2 knock-outs to enable easy installation, the 96W /80W dimmable LED driver is equipped with auto-reset breakers, one on the input and one on the output, protecting both the load and the driver. Electricians prefer Magnitude transformers for the integrated junction box that protects electrical connections and makes installation clean, safe and easy.


Festures:
Dimmable with any standard MLV TRIAC (Leading edge) dimmer switch ● Dual protection – two manual push-to-reset circuit breakers on the primary and secondary sides ● 12V/24V PWM Output
● Single Channel & Constant Voltage mode
● Flicker-Free ● Nema 3R Enclosure – Outdoor Use ● Two bottom knockouts ● Optional 10% voltage boost to compensate for voltage drop
● Current Limiting Overload Protection ● UL/cUL 8750 CLASS2 CE Cert.
● Certified to CSA Standard
● Waterproof,for Dry, Damp, Wet Location
● 5 Years Warranty

Why choose us?
●Switching PWM and VR modes freely
●Multiple dimming functions are available,and adjust brightness and color temperature (CCT)
●Connected to two-color lights,and switch ON/Off change color
●Precise fine-tuning function to better meet the high requirements of the project
●Input voltage 100-277V,12V 24V 36V 48V output voltages are optional
●Multiple output,match the wide power range of 100-384W
●Glue filling process,heat dissipation,waterproof and moisure-proof
●High efficiency and energy saving,high PFC,flicker-free
●Approved UL FCC certificate,Class 2 compliant
Note:Any custom label/package/case is acceptable, provide OEM and ODM service.
Backlight 40W Triac Dimmable Driver High PFC 24V Dimmable Led Power Supply


Compatibility
Dimmer Model
Drivers
Dimmer Model
Drivers
Dimmer Model
Drivers
LUTRON DV-600P
No Flicker
LUTRON MSC-600M
No Flicker
LEVITON IP106-ILZ
No Flicker
LUTRON D-603PGH
No Flicker
LUTRON V-600
No Flicker
LEVITON DSE06-102ELV
No Flicker
LUTRON MAELV-600
No Flicker
LUTRON PD-6WCL
No Flicker
LEVITON DSL06-ILZ
No Flicker
LUTRON VT-600M
No Flicker
LUTRON SELV-300P
No Flicker
LEVITON DDL06-BL
No Flicker
LUTRON NT-603P
No Flicker
LUTRON MIRELV-600M
No Flicker
LEVITON DD710-BD
No Flicker
LUTRON NTLV-603P
No Flicker
LUTRON SPS-600
No Flicker
LEVITON IPL06-10
No Flicker
LUTRON N-2003P
No Flicker
LUTRON SPS-300LD-RP
No Flicker
LEVITON IP710-DL
No Flicker
LUTRON DVCL-153P
No Flicker
LEVITON 6613-PLW
No Flicker
LEVITON RDL06-10
No Flicker
LUTRON S-600P
No Flicker
LEVITON 6681
No Flicker
LEVITON TSM10-1L
No Flicker
LUTRON CTCL-153P
No Flicker
LEVITON 6633-P0G
No Flicker
LEVITON 66EV
No Flicker


Applications:
Backlight 40W Triac Dimmable Driver High PFC 24V Dimmable Led Power Supply

Dimming Type Series Power Model
(xx=output voltage)		 Output voltage Output current Input voltage PF Location Size
Triac/Phase-cut NT 20W ZH-DV20U12-KT 12V 1.7A 120V60Hz&230V 50Hz ≥0.95 Dry/Damp/Wet 177*70*35mm
ZH-DV20U24-KT  24V 0.84A
40W ZH-DV40U12-KT 12V 3.34A
ZH-DV40U24-KT  24V 1.67A

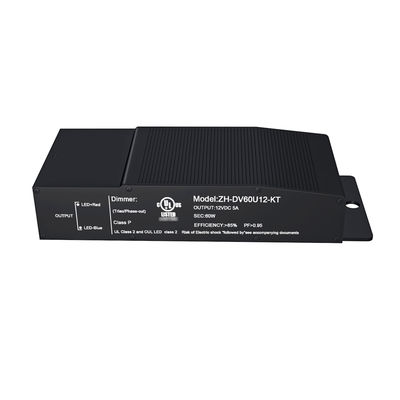

60W ZH-DV60U12-KT 12V 5A
ZH-DV60U24-KT  24V 2.5A
75W ZH-DV75U24-KT  24V 3.13A
96W ZH-DV96U24-KT  24V 4A
