Class 2 60W High Power LED Drivers Constant Voltage for Indoor Use

Class 2 60W High Power LED Drivers Constant Voltage for Indoor Use
Quality Class 2 60W High Power LED Drivers Constant Voltage for Indoor Use factory
Quality Class 2 60W High Power LED Drivers Constant Voltage for Indoor Use factory
Quality Class 2 60W High Power LED Drivers Constant Voltage for Indoor Use factory
Quality Class 2 60W High Power LED Drivers Constant Voltage for Indoor Use factory
Quality Class 2 60W High Power LED Drivers Constant Voltage for Indoor Use factory
Quality Class 2 60W High Power LED Drivers Constant Voltage for Indoor Use factory
Quality Class 2 60W High Power LED Drivers Constant Voltage for Indoor Use factory

Basic Properties

country of origin
Guangdong, China
brand name
KSPOWER

Trading Properties

moq
5 pieces
unit price
The price is negotiable

Product Summary

Class 2 60W High Power LED Drivers Constant Voltage for Indoor use Products Description 24volts 36volts 48volts ETL/cETL led driver 20Watt 40Watt 60Watt 80Watt 96Watt 120 volt to 12 volt indoor lighting transformer The KSPOWER - ET series triac dimmable led driver 20 40 60 80 96Watt is one constant ...

Product Details

Highlight:

60W LED driver constant voltage

,

Class 2 indoor LED driver

,

Triac dimmable high power driver
Warranty(Year):
3-Year
Color:
White, Silver
Current:
0.84A-5A
Lighting solutions service:
Lighting And Circuitry Design
Input Voltage(V):
100-120Vac & 200-240Vac
product name:
20Watt 40Watt 60Watt 80Watt 96Watt Power Supplier LED Driver
Output Voltage:
12V/24V
efficiency:
>90%
Protections:
OCP, OVP, SCP, OTP
warranty:
3 Years
certification:
ETL CE ROHS UL Class2
dimension:
200*85*37mm (L*W*H)
material:
Iron Case
color:
Silver, Black, White, Blue, Gray Or Custom.
Application:
LED Strip Light

Product Description

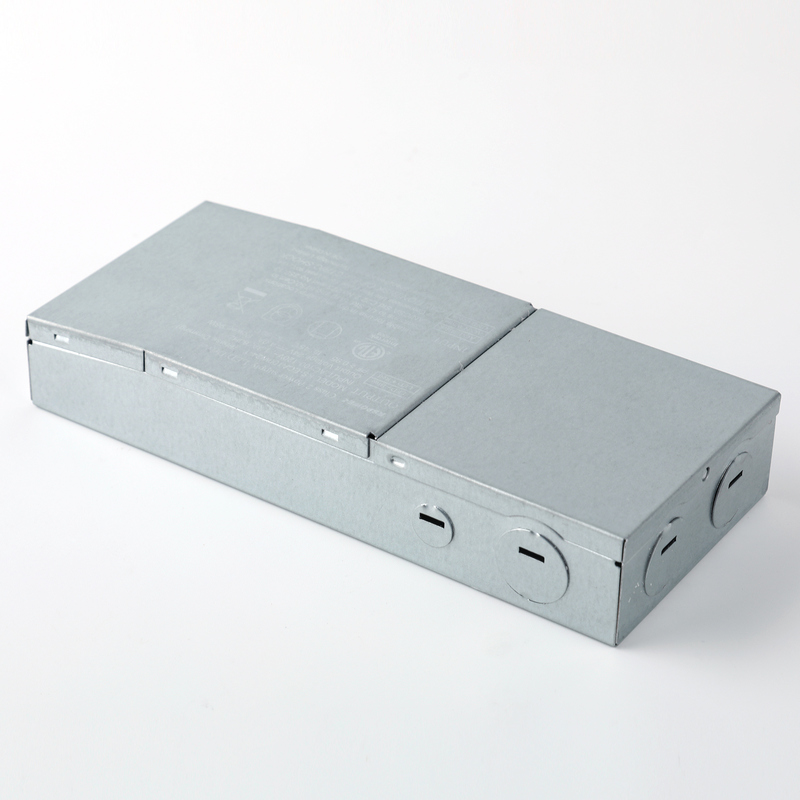

Class 2 60W High Power LED Drivers Constant Voltage for Indoor use

Products Description
24volts 36volts 48volts ETL/cETL led driver 20Watt 40Watt 60Watt 80Watt 96Watt 120 volt to 12 volt indoor lighting transformer
The KSPOWER - ET series triac dimmable led driver 20 40 60 80 96Watt is one constant voltage solution, single channel, accept AC input voltage range from 100V to 120V, and 12 volt output voltage with junction box. The switching led power supply is a constant voltage 12V/24V power supply, which is compatible with a single color or RGB light strip, string light, wireless router, ADSL Cat, HUB, switch, security camera, speaker, receiver and audio/video power supply. The class 2 led power transformer use low profile metal iron case, featuring Class 2 Class P design and safety protections for indoor use, the phase dim led driver provide 5 years warranty and outstanding led performance.
Input Voltage
120Vac 60Hz & 230Vac 50Hz
Output Voltage
12V/24V
12V/24V
24V
24V
Rated Current
3.34A/1.67A
5A/2.5A
3.13A
4A
Rated Power
40W
60W
75W
96W
Efficiency
≥ 90%
≥ 90%
≥ 91%
≥ 91%
Working Temperature
-40℃ to +50℃
Working Relative Humidity
10%-100%Rh
Dimension(L*W*H)
200*85*37mm / 7.88*3.35*1.46in
Certificate
ETL/cETL/Class2
Features:
* 100-120Vac 60Hz & 200-240Vac 50Hz Input * 12V/ 24V PWM Output * Single Channel & Constant Voltage mode * Metal Iron Case with junction box * ETL cETL Class2 CE Cert * Enclosure: LISTED Enclosure with input and output wire * For Forward & Reverse Phase, MLV, ELV * High Power Factor, PF≥0.95 * Full Dimming Range:0-100% * Flicker-Free * Continuous & Smooth & Stable * Protections: OCP, OVP, SCP, OTP *For Dry Indoor Location * 3 Years Warranty


Product packaging
1.Sample is available.
2.Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others.
3. for 60W power adapter : each one put in one small inner brown box, then 50 pcs put in one standard carton.

Why choose us?
.Triac & Phase-cut/Non-dimming,two modes optional
.Indoor use led driver power supply
.Metal iron shell,economical and durable
.Input 100-120V,output 12V24VDC,20-96W
.ETL/cETL Class2 certificate
Package
Piece/Carton(pcs)
Piece Weight(KG)
OEM package
50
0.26
Dimension/Brown Box(mm)
Dimension/Carton(mm)
Gross Weight/Carton(KG)
155*85*35
455*370*175
14


Class 2 60W High Power LED Drivers Constant Voltage for Indoor Use

Dimming Type Series Power Model
(xx=output voltage)		 Output voltage Output current Input voltage PF Location Size
Triac/Phase-cut ET 20W ZH-EAC20W12-T 12V 1.7A 100-120V 60Hz&200-240V 50Hz ≥0.95 Dry/Damp/Wet 200*85*37mm
ZH-EAC20W24-T  24V 0.84A
40W ZH-EAC40W12-T 12V 3.34A
ZH-EAC40W24-T  24V 1.67A
60W ZH-EAC60W12-T 12V 5A
ZH-EAC60W24-T  24V 2.5A
80W ZH-EAC80W24-T  24V 3.33A
96W ZH-EA100W24-T  24V 4A


Note: Accept LOGO/color/package/case customization, OEM and ODM service
