Class 2 Iron Case Dimmable LED Transformer With 2008537mm 20W 24V Constant Voltage

Class 2 Iron Case Dimmable LED Transformer With 2008537mm 20W 24V Constant Voltage

Brand Name:	KSPOWER
Model Number:	ZH-EAC20W12-T
MOQ:	5 pieces
Price:	$13.60/pieces 5-499 pieces
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China (Mainland)

Warranty(Year):

5-Year

Lighting Solutions Service:

Lighting And Circuitry Design

Output Power:

20W

Output Type:

Single Phase

Input Voltage:

100V-120Vac & 200-240Vac

Output Frequency:

50/60Hz

Product Name:

Continuous Smooth Led Transformer 12v60w Dc Led Driver

Efficiency:

>90%

Protections:

OCP, OVP, SCP, OTP

Warranty:

3 Years

Certification:

ETL CETL CE ROHS Class2

Dimension:

200*85*37mm (L*W*H)

Material:

Iron Case

Color:

Silver, Black, White, Blue, Gray Or Custom.

Dimming Mode:

Traic /Phase-Cut Dimmable

Packaging Details:

Brown box and Carton

Highlight:

Class 2 dimmable LED transformer

24V constant voltage driver

20W iron case LED driver

Product Description

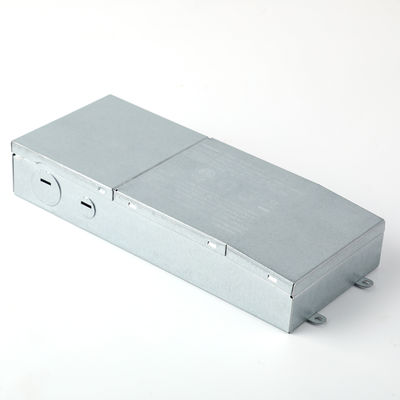

Class 2 Iron Case Dimmable LED Transformer With 200*85*37mm 20W 24V Constant Voltage

Products Description:

The phase dimmable led driver is one 120VAC Input voltage, 40 Watt 24VDC / 12VDC output North America indoor junction box LED Driver certified to meet ETL/cETL Class 2 safety approvals. The Dimmable Power Supply use low profile iron case with junction box to enable easy installation makes led driver the power solutions for led tape/strip, modules, LED bar light. Featuring US Level VI energy efficiency standards of up to 90% and higher, IP20 environment Protection Rating, Constant Voltage LED Driver can use for indoor lighting and provide outstanding dimming peformance.
Features:
． Super compact IRON CASE
． ETL/cETL Class 2 RoHS
． IP20 - Indoor Use
． Auto-Reset Protection for input/output overvoltage protection, input/output overcurrent protection, over temperature protection, over power protection and short circuit protection

Features:
* 100-120Vac 60Hz & 200-240Vac 50Hz Input
* 12V/ 24V PWM Output
* Single Channel & Constant Voltage mode
* Enclosure With Junction Box
* ETL cETL Class2 CE Cert
* Enclosure: LISTED Enclosure with input and output wire
* For Forward & Reverse Phase, MLV, ELV
* High Power Factor, PF≥0.95
* Full Dimming Range:0-100%
* Flicker-Free
* Continuous & Smooth & Stable
* Protections: OCP, OVP, SCP, OTP
*For Dry Indoor Location
* 3 Years Warranty

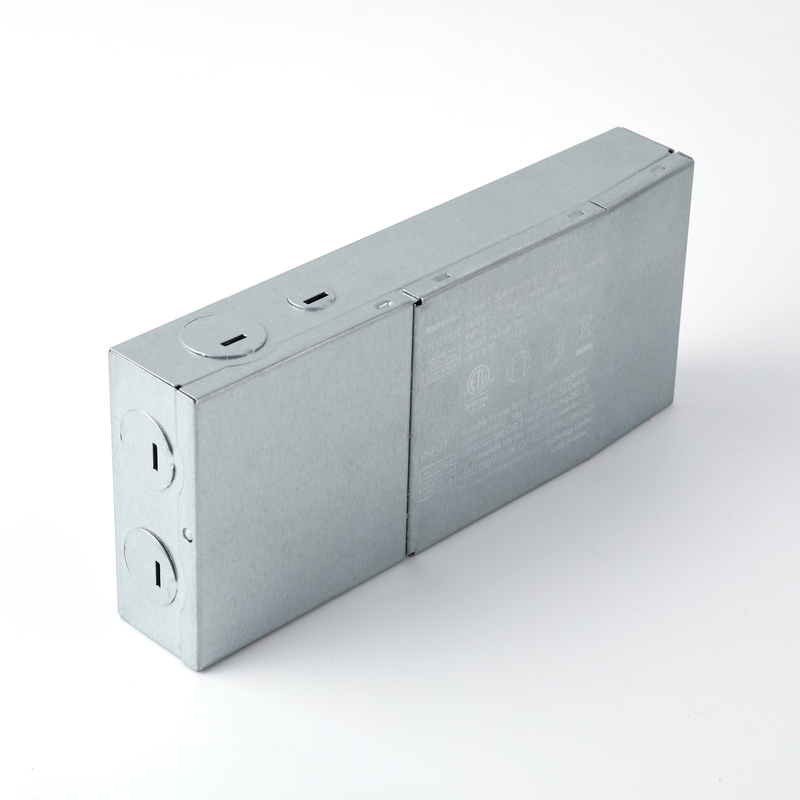

Class 2 Iron Case Dimmable LED Transformer With 200*85*37mm 20W 24V Constant Voltage 0

Specification:

Model No.	Output Power	Output Voltage	Output Current	Efficiency	Dimension
KSE-24W	20W	12V/24V	1.7A/0.84A	≥88%	(7.93.341.45)inch 2008537MM
KSE-40W	40W	12V/24V	3.34A/1.67A	≥88%
KSE-60W	60W	12V/24V	5A/2.5A	≥88%
KSE-80W	80W	24V	3.33A	≥88%
KSE-96W	96W	24V	4.0A	≥88%

Dimming Type	Series	Power	Model (xx=output voltage)	Output voltage	Output current	Input voltage	PF	Location	Size
Triac/Phase-cut	ET	20W	ZH-EAC20W12-T	12V	1.7A	100-120V 60Hz&200-240V 50Hz	≥0.95	Dry/Damp/Wet	2008537mm
		20W	ZH-EAC20W24-T	24V	0.84A
		40W	ZH-EAC40W12-T	12V	3.34A
		40W	ZH-EAC40W24-T	24V	1.67A
		60W	ZH-EAC60W12-T	12V	5A
		60W	ZH-EAC60W24-T	24V	2.5A
		80W	ZH-EAC80W24-T	24V	3.33A
		96W	ZH-EA100W24-T	24V	4A
