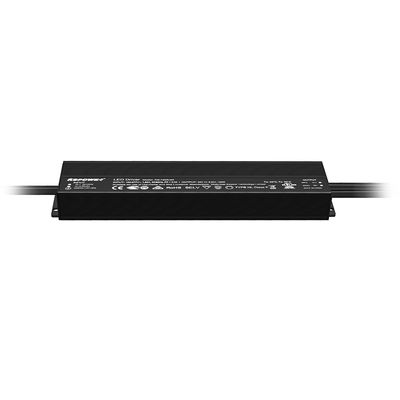

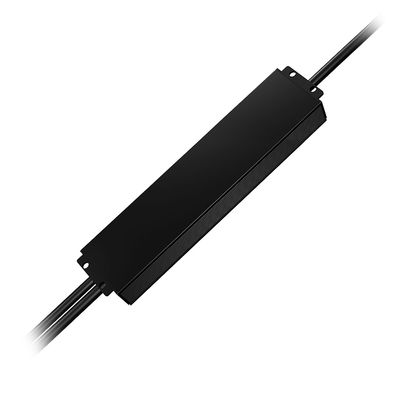

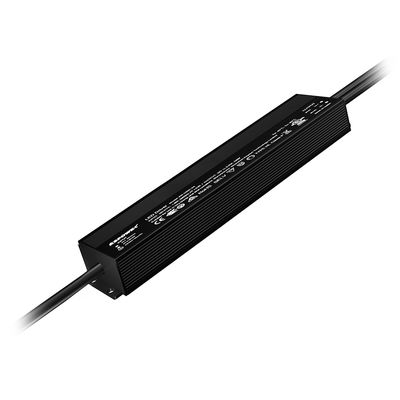

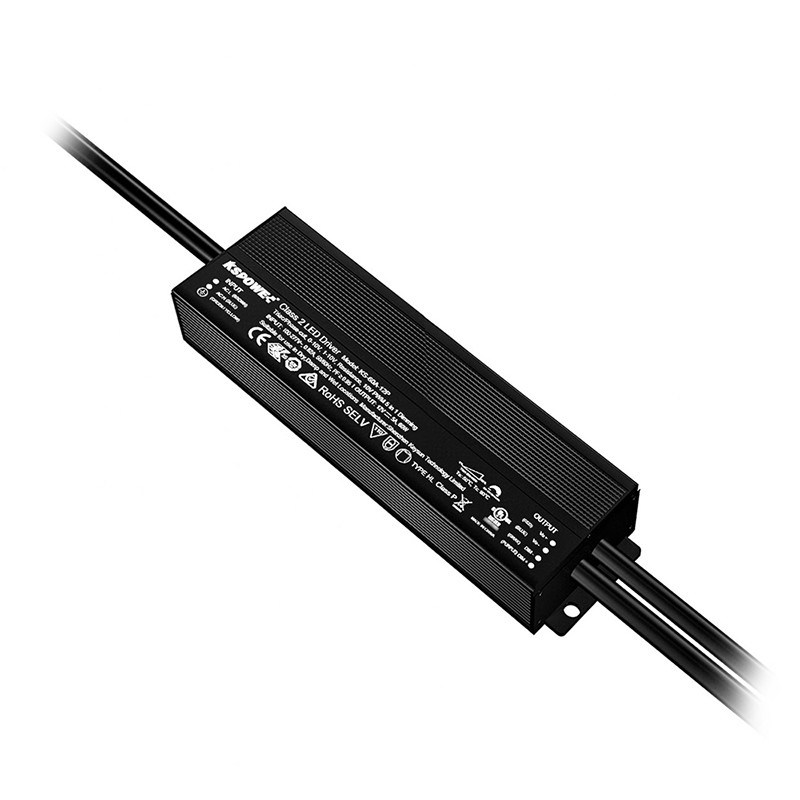

150W 0-10V Dimmable LED Driver with 5-Year Warranty and 100V-277V Input for Professional Horticultural Lighting

150W 0-10V Dimmable LED Driver with 5-Year Warranty and 100V-277V Input for Professional Horticultural Lighting

Brand Name:	KSPOWER
Model Number:	KS-150A-xxP
MOQ:	2 pieces
Price:	$15-29/pieces
Payment Terms:	T/T
Supply Ability:	300000pcs/monthly

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

UL cUL CE Class 2 Class P ENEC Gs TYPE HL...

Warranty(Year):

5-Year

Color:

Black, Silver

Current:

0.83A-26.66A

Lighting Solutions Service:

Lighting And Circuitry Design

Input Voltage(V):

100V-277V

Application:

Street Light, Tunnel Light, Wall Lamp,Spot Light

Warranty:

5 Years

Output Mode:

Pwm Output

Efficiency:

89%

Output:

12V 24V 36V 48V

Dimming Mode:

Triac Phase-Cut Dimmable/0-10v/1-10v/10v PWM/Resistance

Material:

Aluminium Case

IP Rate:

IP67 IP65

Packaging Details:

Brown box and Carton

Highlight:

Street Light Dimmable Lighting Transformer

6.67A Dimmable Lighting Transformer

Street Light Dimmable Electronic Transformer

Product Description

0-10V Dimmable IP67 150W LED Driver for Professional Horticultural Lighting

Key Features

Universal AC input voltage 100-277VAC
Output voltage:12V/24V36V/48V
High efficiency up to 91% with built-in active PFC function
Single channel & constant voltage mode with PWM style output
Comprehensive protection: OCP, OVP, SCP, OTP
Limited Power Source compliant
Certifications: cUL, RoHS, CE, ENEC, GS, Class P, SAA
Typical lifetime > 50,000 hours with 5-year warranty
IP65/IP67 rated enclosure for indoor/outdoor use
Wiring compartments with knock-outs for clean installation

Dimming Options

Non-dimmable
Triac/Phase-cut Dimmable
4 in 1 dimmable (0-10V, 1-10V, PWM, resistance)
5 in 1 dimmable (0-10V, 1-10V, TRIAC, PWM, resistance)

Configuration Options

Available with or without integrated Junction Box

Custom labeling, packaging, and cases available - OEM and ODM services provided

Dimming Connection Diagram

Packaging & Shipping

Each unit packaged in individual brown box
20 units per standard carton
Samples available
Shipping options: DHL/UPS/FedEx/TNT express, Land, Ocean

Technical Specifications

Dimming Type	Series	Power	Model	Output Current (A)	Input Voltage	Size
5 in 1 dimming	HP	40W	KS-40A-xxP	3.3A/1.67A/1.11A/0.83A	100~277V 50/60Hz	188×58×36mm
		60W	KS-60A-xxP	5A/2.5A/1.67A/1.25A		188×58×36mm
		80W	KS-80A-xxP	6.67A/3.33A/2.22A/1.67A		188×58×36mm
		96W	KS-96A-24P	4A		213×58×36mm
		100W	KS-100A-xxP	8.33A/4.16A/2.78A/2.08A		213×58×36mm
		120W	KS-120A-xxP	10A/5A/3.33A/2.5A		213×58×36mm
		150W	KS-150A-xxP	12.5A/6.25A/4.16A/3.13A		234×68×41mm
		180W	KS-180A-12P	15A		234×68×41mm
		200W	KS-200A-xxP	16.66A/8.33A/5.55A/4.16A		234×68×41mm
