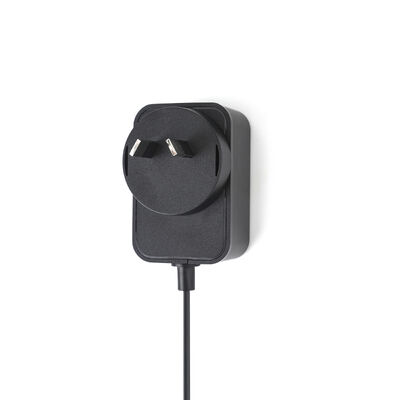

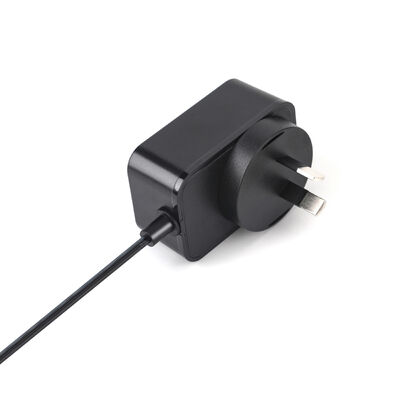

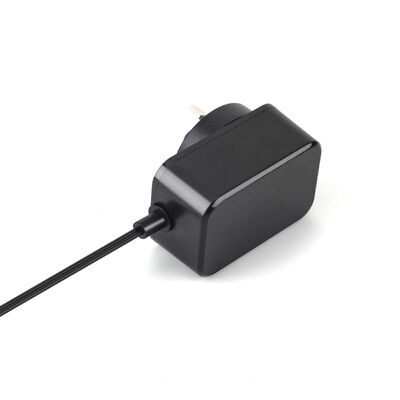

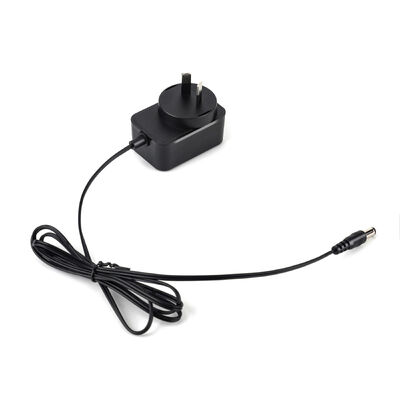

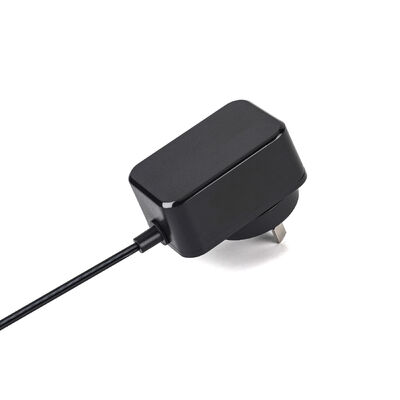

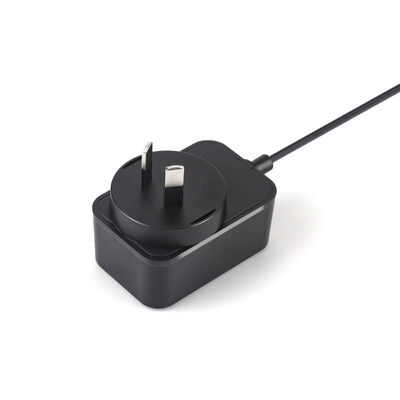

20W SAA Certified Wall Power Adapter with Multiple Protections and Universal Compatibility

Brand Name:	KSPOWER
Model Number:	KS39DU-xxxyyyy
MOQ:	1piece
Price:	$1.98-$2.36/pieces
Payment Terms:	T/T
Supply Ability:	300000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

UL CLASS 2 /CE/GS/SAA/KC/CB/FCC/C-TICK/PAHS/ROHS

Output Type:

Single Phase

Input Voltage:

100-240Vac,50/60Hz

Output Voltage:

5V6V8V9V12V15V18V19V20V24V30V36V48V

Protection:

OVP, OCP, SCP, OTP, OPP

AC Plugs:

US EU KR AU JP CN Etc.

DC Jack:

5.5*2.1/5.5*2.5mm Or Custom

Warranty:

3 Years

Material:

100% PC

Type:

Wall-mounted

Color:

Black And White

Packaging Details:

Small box and Carton

Highlight:

Wall Power Adapter

Switch Mode Wall Power Adapter

2.2A AC DC Power Adapter

Product Description

20W SAA Certified Wall Adapter

Professional-grade 20W wall adapter with comprehensive safety certifications for global markets.

Technical Specifications

Output Mode: Constant voltage
Input Voltage: AC100-240Vac, 50/60Hz or 220-240Vac, 50/60Hz
Output Range: DC5V-36V, 0.01A-3A, 24W Max
Protections: Short circuit, over current, over voltage
Energy Efficiency: DOE, CEC, ERPII MEPS GEMS
Operating Environment: 0-40℃, 5%-95% RH
Certifications: UL, cUL, FCC, GS, CCC, CQC, KC, PSE, UKCA, SAA, C-tick, RCM, RoHS, CB

Regional Specifications

Country	Max. Watt	Voltage Range	Current Range	Safety Standard
US	24W	DC5-36V	0.01A-3.0A	EN62368/UL 1310
EU	24W	DC5-36V	0.01A-3.0A	EN62368
UK	24W	DC5-36V	0.01A-3.0A	EN62368
AU	24W	DC5-36V	0.01A-3.0A	EN62368
KR	24W	DC5-36V	0.01A-3.0A	EN62368
JP	24W	DC5-36V	0.01A-3.0A	EN62368
CN	24W	DC5-36V	0.01A-3.0A	CCC-GB 4943.1-2022/CQC-GB 4343.1-2018;GB/T 4343.2-2020

Key Features

Single channel constant voltage power supply
100% full load burn-in testing
Passes LPS (limited power source) requirements
3-year comprehensive warranty
Class II power design (without earth pin)
Compact size with fully enclosed PC plastic case
Fast startup time: <3 seconds
High energy efficiency: DOE/CEC/ErP/MEPS/NRcan Level VI

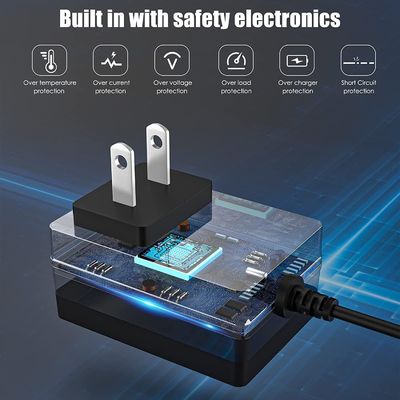

Automatic safety protections for over current, over load, and short circuit

Compatible AC Plugs

US, EU, UK, AU, Korea, Japan, China, Brazil, India, Argentina and other regional standards

Available DC Connectors

5.5*2.1mm
5.5*2.5mm
4.0*1.7mm
3.5*1.35mm
2.5*0.7mm
XLR

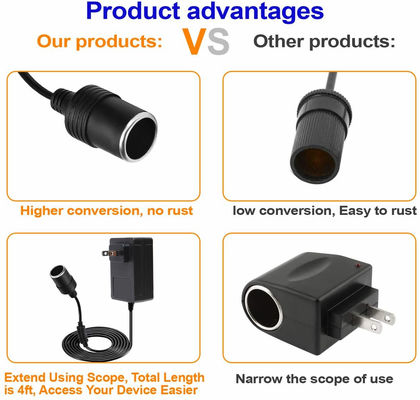

Cigarette lighter
Other customizable options

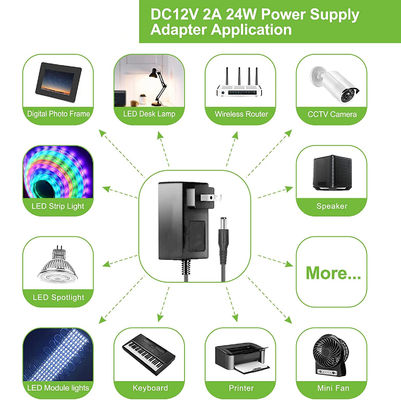

Applications

Ideal for electric grill ovens, LED strips, audio amplifiers, wireless routers, and audio/video power supplies.

Not waterproof - indoor use only.

Customization Services

We offer comprehensive OEM and ODM services with custom labeling, packaging, and case design options available to meet your specific requirements.
