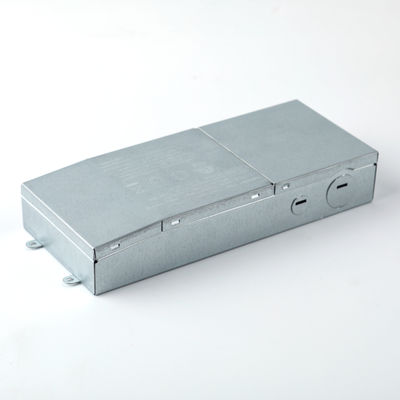

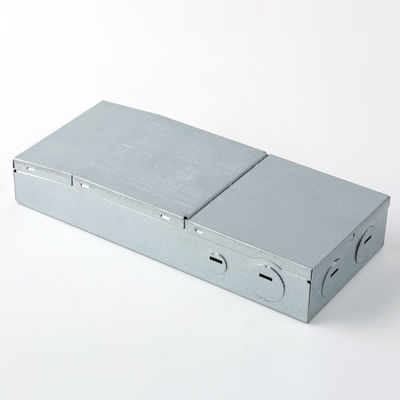

12V 60W LED Light Driver High PFC Constant Voltage Single Output Switching Power Supply

12V 60W LED Light Driver High PFC Constant Voltage Single Output Switching Power Supply
Quality 12V 60W LED Light Driver High PFC Constant Voltage Single Output Switching Power Supply factory
Quality 12V 60W LED Light Driver High PFC Constant Voltage Single Output Switching Power Supply factory
Quality 12V 60W LED Light Driver High PFC Constant Voltage Single Output Switching Power Supply factory
Quality 12V 60W LED Light Driver High PFC Constant Voltage Single Output Switching Power Supply factory
Quality 12V 60W LED Light Driver High PFC Constant Voltage Single Output Switching Power Supply factory
Quality 12V 60W LED Light Driver High PFC Constant Voltage Single Output Switching Power Supply factory
Quality 12V 60W LED Light Driver High PFC Constant Voltage Single Output Switching Power Supply factory

Basic Properties

country of origin
China (Mainland)
brand name
KSPOWER
product model
KSET-60W12

Trading Properties

moq
5 pieces
unit price
The price is negotiable

Product Summary

12V 60W LED Light Driver High PFC Constant Voltage Single Output Switching Power Supply Products Description: The phase dimmable led driver is one 120VAC Input voltage, 40 Watt 24VDC / 12VDC output North America indoor junction box LED Driver certified to meet ETL/cETL Class 2 safety approvals. The ...

Product Details

Highlight:

12V 60W LED Light Driver

,

High PFC LED Light Driver

,

Constant Voltage Output Switching Power Supply
Warranty(Year):
5-Year
Lighting solutions service:
Lighting And Circuitry Design
Output Power:
60W
Output Type:
Single Phase
Input Voltage:
100V-120Vac & 200-240Vac
Output Frequency:
50/60Hz
Output Current:
5A
product name:
Continuous Smooth Led Transformer 12v60w Dc Led Driver
Output Voltage:
12V
efficiency:
>90%
Protections:
OCP, OVP, SCP, OTP
warranty:
3 Years
certification:
ETL CETL CE ROHS UL Class2
dimension:
200*85*37mm (L*W*H)
material:
Iron Case
color:
Silver, Black, White, Blue, Gray Or Custom.
Dimming mode:
Traic /Phase-Cut Dimmable

Product Description


12V 60W LED Light Driver High PFC Constant Voltage Single Output Switching Power Supply

Products Description:
The phase dimmable led driver is one 120VAC Input voltage, 40 Watt 24VDC / 12VDC output North America indoor junction box LED Driver certified to meet ETL/cETL Class 2 safety approvals. The Dimmable Power Supply use low profile iron case with junction box to enable easy installation makes led driver the power solutions for led tape/strip, modules, LED bar light. Featuring US Level VI energy efficiency standards of up to 90% and higher, IP20 environment Protection Rating, Constant Voltage LED Driver can use for indoor lighting and provide outstanding dimming peformance.
Features:
． Super compact IRON CASE
． ETL/cETL Class 2 RoHS
． IP20 - Indoor Use
． Auto-Reset Protection for input/output overvoltage protection, input/output overcurrent protection, over temperature protection, over power protection and short circuit protection
Features:
* 100-120Vac 60Hz & 200-240Vac 50Hz Input
* 12V/ 24V PWM Output
* Single Channel & Constant Voltage mode

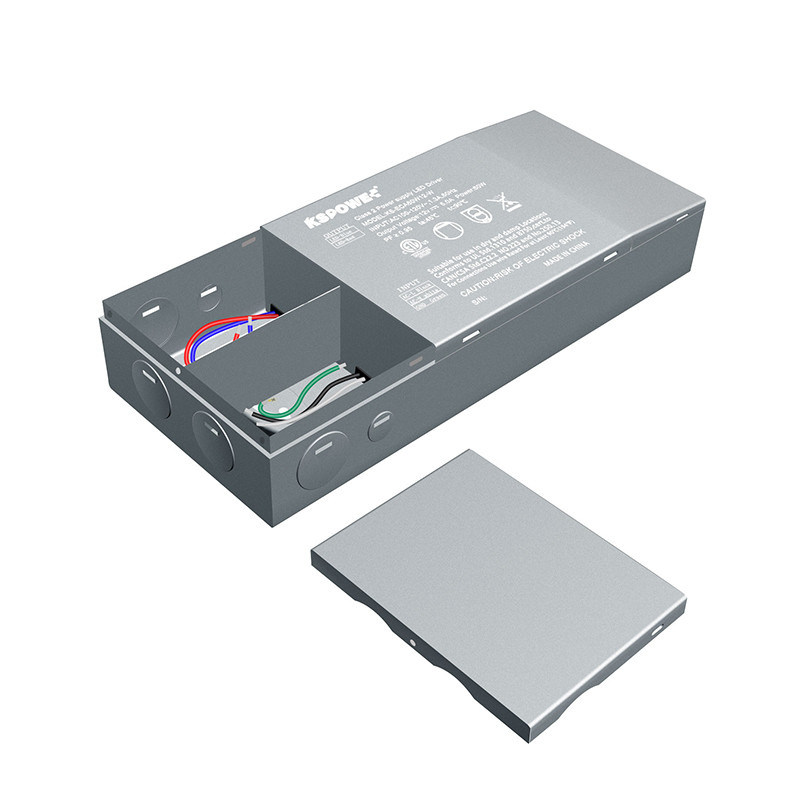

* Enclosure With Junction Box
* ETL cETL Class2 CE Cert
* Enclosure: LISTED Enclosure with input and output wire
* For Forward & Reverse Phase, MLV, ELV
* High Power Factor, PF≥0.95
* Full Dimming Range:0-100%
* Flicker-Free
* Continuous & Smooth & Stable
* Protections: OCP, OVP, SCP, OTP
*For Dry Indoor Location
* 3 Years Warranty
12V 60W LED Light Driver High PFC Constant Voltage Single Output Switching Power Supply
Specification:
Model No.
Output Power
Output Voltage
Output Current
Efficiency
Dimension
KSE-24W
20W
12V/24V
1.7A/0.84A
≥88%


(7.9*3.34*1.45)inch
        200*85*37MM
KSE-40W
40W
12V/24V
3.34A/1.67A
≥88%

KSE-60W
60W
12V/24V
5A/2.5A
≥88%

KSE-80W
80W
24V
3.33A
≥88%

KSE-96W
96W
24V
4.0A
≥88%



12V 60W LED Light Driver High PFC Constant Voltage Single Output Switching Power Supply

Dimming Type Series Power Model
(xx=output voltage)		 Output voltage Output current Input voltage PF Location Size
Triac/Phase-cut ET 20W ZH-EAC20W12-T 12V 1.7A 100-120V 60Hz&200-240V 50Hz ≥0.95 Dry/Damp/Wet 200*85*37mm
ZH-EAC20W24-T  24V 0.84A
40W ZH-EAC40W12-T 12V 3.34A
ZH-EAC40W24-T  24V 1.67A
60W ZH-EAC60W12-T 12V 5A
ZH-EAC60W24-T  24V 2.5A
80W ZH-EAC80W24-T  24V 3.33A
96W ZH-EA100W24-T  24V 4A


Why choose us?
* Triac & Phase-cut/Non-dimming,two modes optional
* Indoor use led driver power supply
* Metal iron shell,economical and durable
* Input 100-120V,output 12V24VDC,20-96W
* ETL/cETL Class2 certificate
