Triac Dimmable 12V24V36V48V 150W LED Driver 277V AC PWM Output Phase Cut
Basic Properties
Trading Properties
Product Summary
Product Details
Protection OVP Triac Dimmable LED Driver
,277V AC Triac Dimmable LED Driver
,PWM Output Triac Dimmable Power Supply
Product Description

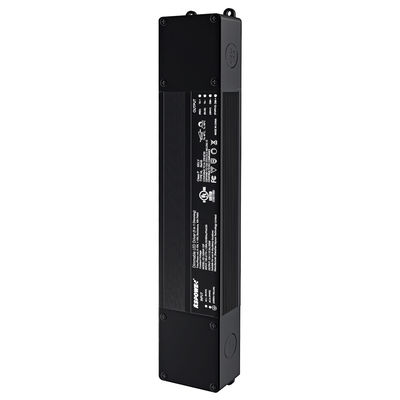

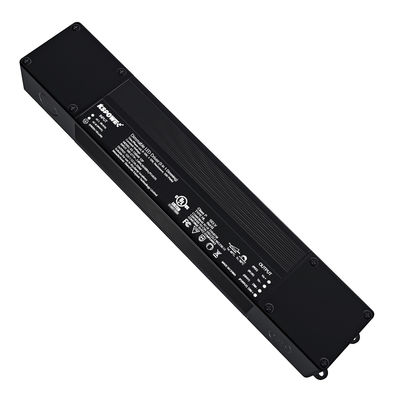

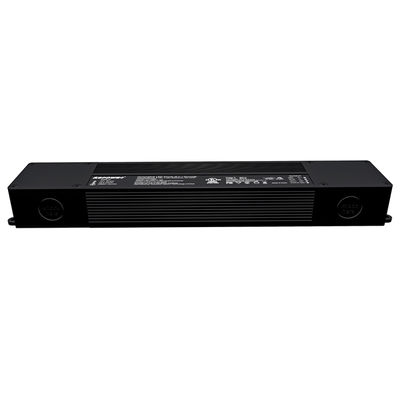

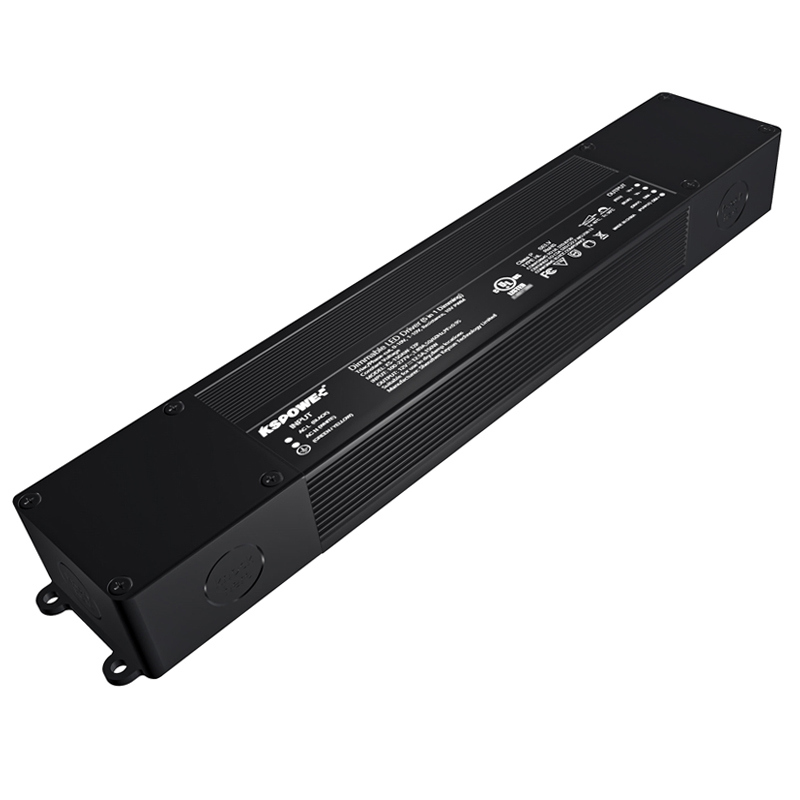

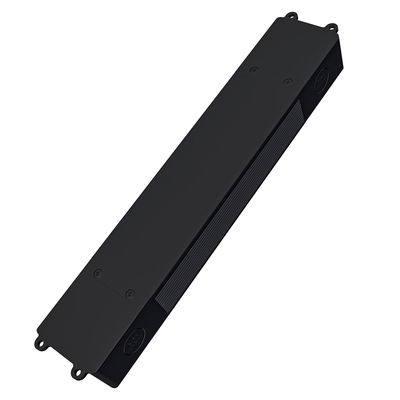

The phase dimming led power supply use low profile metal aluminum case with or without junction box makes the ac dimmable led power supply solutions for LED strips, LED sign, billboard and landscape lighting. Featuring 10K frequency PWM output and IP67 rated waterproof environment protection rated for indoor or outdoor use, the led lights power supply provide 5 years warranty and outstanding led dimming performance.
* Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
* Single Channel & Constant Voltage mode
* Output Voltage: 12Volt/24Volt/36Volt/48Volt
* Driver Type: Class 2 Class P
* Enclosure:LISTED Enclosure with Junction Box / LISTED Enclosure without Junction Box
* Dimming: TRIAC or MLV / ELV Phase Dimmable Available
* Environmental: Dry and Damp
* Wiring Compartments with Knock-Outs for Clean and Easy Installation
* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage
* IP67 Rated Enclosure for Indoor and Outdoor Use
* 5-Years Warranty
* UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL
Note:Any custom label/package/case is acceptable, provide OEM and ODM service
|
Input Voltage
|
100~277V AC 47~63Hz
|
|
|
|
|||
|
Power Factor
|
PF≧0 98/115VAC, PF≧0 95/230VAC, PF≧0.9/277VAC, 80% with load
|
|
|
|
|||
|
NO.
|
KSH
|
|
|
|
|||
|
Output Voltage
|
12V/24V/36V/48V
|
|
|
|
|||
|
Rated Current
|
0.83A-16.66A
|
|
|
|
|||
|
Rated Power
|
30w 40w 50w 60w 70w 80w 90w 100w 120w 130w 140w 200w 300w
|
|
|
|
|||
|
Ceryification
|
UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL
|
|
|
|
|||
|
Ripple & Noise (max.)
|
200mVp-p / 250mVp-p
|
|
|
|
|||
| Dimming Type | Series | Power | Model (xx=output voltage) |
Output voltage& Output current |
Input voltage | Size | |||
| 12V | 24V | 36V | 48V | ||||||
| Triac/Phase-cut | HTJ | 40W | KS-40AW-xxT | 3.3A | 1.67A | 1.11A | 0.83A | 100~277V 50/60Hz |
297*58*36mm |
| 60W | KS-60AW-xxT | 5A | 2.5A | 1.67A | 1.25A | ||||
| 80W | KS-80AW-xxT | 6.67A | 3.33A | 2.22A | 1.67A | ||||
| 96W | KS-96AW-24T | / | 4A | / | / | 322*58*36mm | |||
| 100W | KS-100AW-xxT | 8.33A | 4.16A | 2.78A | 2.08A | ||||
| 120W | KS-120AW-xxT | 10A | 5A | 3.33A | 2.5A | ||||
| 150W | KS-150AW-xxT | 12.5A | 6.25A | 4.16A | 3.13A | ||||
| 180W | KS-180AW-12T | 15A | / | / | / | 343*68*41mm | |||
| 200W | KS-200AW-xxT | 16.66A | 8.33A | 5.55A | 4.16A | ||||
| 240W | KS-240AW-xxT | 20A | 10A | 6.66A | 5A | 367*68*41mm | |||
| 300W | KS-300AW-24T | / | 12.5A | / | / | ||||
| 320W | KS-320AW-xxT | / | 13.33A | 8.88A | 6.66A | ||||
