| Brand Name: | KSPOWER |
| Model Number: | KSNT-96W24 |
| MOQ: | 10 pieces |
| Price: | $34.50/pieces 10-499 pieces |
Custom NEMA 3R flicker free electronic Christmas LED lights Class 2 24V 96W TRIAC dimmable RGB waterproof LED driver.
Dimmable driver for use with magnetic low voltage or Lutron CL series wall dimmer. Also works with home dimming systems with appropriate dimming module. Driver has one input and one output. Features include constant voltage design.

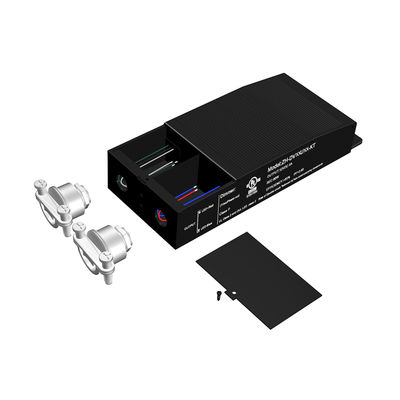

Encased in a high-quality NEMA 3R metal case enclosure that includes 2 knock-outs to enable easy installation, the 96W dimmable LED driver is equipped with auto-reset breakers, one on the input and one on the output, protecting both the load and the driver.
| Input Voltage | 120V & 230VAC |
|---|---|
| Power Factor | PF≧0.95/120VAC at 80% load |
| Model No. | ZH-DV96U24-KT |
| Output Voltage | 24V |
| Rated Current | 4A |
| Rated Power | 96W |
| Ripple & Noise (max.) | 250mVp-p |
| Dimensions (L*W*H) | 200*85*37mm / 7.9*3.34*1.45in |
| Dimmer Model | Drivers | Dimmer Model | Drivers | Dimmer Model | Drivers |
|---|---|---|---|---|---|
| LUTRON DV-600P | No Flicker | LUTRON MSC-600M | No Flicker | LEVITON IP106-ILZ | No Flicker |
| LUTRON D-603PGH | No Flicker | LUTRON V-600 | No Flicker | LEVITON DSE06-102ELV | No Flicker |
| LUTRON MAELV-600 | No Flicker | LUTRON PD-6WCL | No Flicker | LEVITON DSL06-ILZ | No Flicker |
| LUTRON VT-600M | No Flicker | LUTRON SELV-300P | No Flicker | LEVITON DDL06-BL | No Flicker |
| LUTRON NT-603P | No Flicker | LUTRON MIRELV-600M | No Flicker | LEVITON DD710-BD | No Flicker |
| LUTRON NTLV-603P | No Flicker | LUTRON SPS-600 | No Flicker | LEVITON IPL06-10 | No Flicker |
| LUTRON N-2003P | No Flicker | LUTRON SPS-300LD-RP | No Flicker | LEVITON IP710-DL | No Flicker |
| LUTRON DVCL-153P | No Flicker | LEVITON 6613-PLW | No Flicker | LEVITON RDL06-10 | No Flicker |
| LUTRON S-600P | No Flicker | LEVITON 6681 | No Flicker | LEVITON TSM10-1L | No Flicker |
| LUTRON CTCL-153P | No Flicker | LEVITON 6633-P0G | No Flicker | LEVITON 66EV | No Flicker |
| Dimming Type | Series | Power | Model | Output Voltage | Output Current | Input Voltage | PF | Location | Size |
|---|---|---|---|---|---|---|---|---|---|
| Triac/Phase-cut | NT | 20W | ZH-DV20U12-KT | 12V | 1.7A | 120V60Hz&230V 50Hz | ≥0.95 | Dry/Damp/Wet | 177*70*35mm |
| 20W | ZH-DV20U24-KT | 24V | 0.84A | ||||||
| 40W | ZH-DV40U12-KT | 12V | 3.34A | ||||||
| 40W | ZH-DV40U24-KT | 24V | 1.67A | ||||||
| 60W | ZH-DV60U12-KT | 12V | 5A | ||||||
| 60W | ZH-DV60U24-KT | 24V | 2.5A | ||||||
| 75W | ZH-DV75U24-KT | 24V | 3.13A | ||||||
| 96W | ZH-DV96U24-KT | 24V | 4A |
