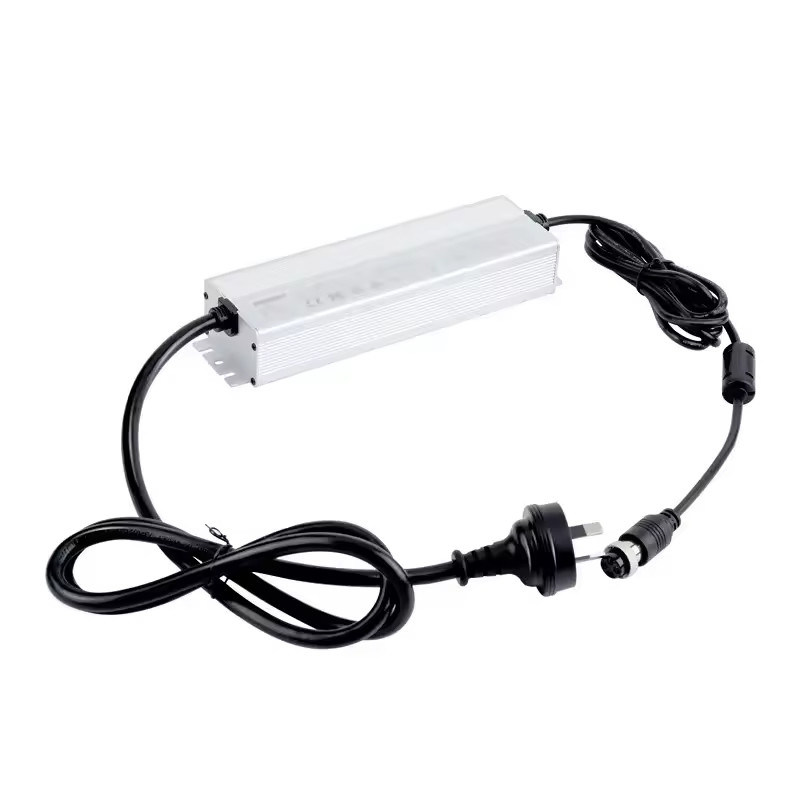

Customizable 400W LED Light Driver Waterproof LED Driver IP65 AC 260V DC 12V

Brand Name:	KSPOWER
MOQ:	2 pieces
Price:	$1.09-32.90/pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

UL FCC CE ROHS SAA CLASS P etc.

Warranty(Year):

5-Year

Lighting Solutions Service:

Lighting And Circuitry Design

Output Power:

60-400w

Output Type:

PWM

Input Voltage:

100-277V

Output Frequency:

50/60Hz

Product Name:

Led Waterproof Driver

Application:

LED Strip Light,Pendants, Linears,Cove Lights

Material:

Aluminum Case

Warranty:

5 Years

Protection:

OCP, OVP, SCP, OTP

IP Rate:

IP65

Efficiency:

≥90%

Power:

60-400w

Output:

5V 12V 24V 36V 48V

Highlight:

Customizable LED Light Driver

AC 260V LED Light Driver

Customizable Waterproof LED Driver

Product Description

12V 24V 36V 48V 120W Class P driver, 0/1-10V, 10V PWM, Resistance dimming 4 in 1 dimmable LED driver is constant voltage solution, and the perfect choice for under cabinet lighting and other residential and commercial lighting fixture applications.

Products Description

12V 24V 36V 48V 120W

12 12.0 24 24.0 36 36.0 48 48.0 V Vdc Volt Volts 12.0V 24.0V 36.0V 48.0V 12volts 24volts 36volts 48volts 12vdc 24vdc 36vdc 48vdc 120 W Watt Watts 120Watt 120Watts

KS-150W is a versatile 120W 4-in-1 universal dimming driver that accepts 100-277VAC input voltage and provides 12V 24V 36V 48V constant voltage output. KS-150W delivers flicker free dimming to 0% on all dinning systems including 0-10V, 1-10V, PWM, Resistance, MLV, ELV and Incandescent. The high efficiency of the driver and sophisticated overload protection enables the electronics to run cooler and significantly improve reliability while extending product life.

The compact metal case is dry/damp location listed and IP65 rated, making it suitable for a wide range of indoor/outdoor architectural, commercial, industrial, and residential lighting applications. KS-150W is available with or without integrated junction boxes on both the input and output side that have two knockouts each.

Features:
* Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
* Single Channel & Constant Voltage mode
* Output Voltage: 12Volt/24Volt/36Volt/48Volt
* Driver Type: Class 2 Class P
* Enclosure:LISTED Enclosure with Junction Box / LISTED Enclosure without Junction Box
* Dimming: PWM,0/1-10V or MLV / ELV Resistance Dimmable Available
* Environmental: Dry and Damp
* Wiring Compartments with Knock-Outs for Clean and Easy Installation
* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage

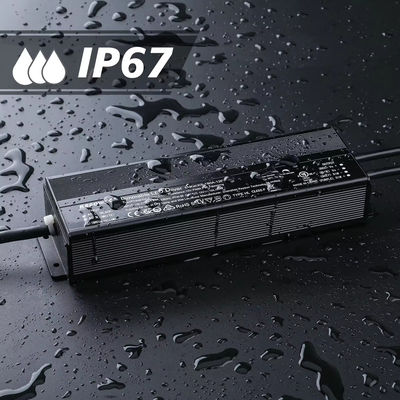

* IP65 Rated Enclosure for Indoor and Outdoor Use
* 5-Years Warranty
* UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL

Note:Any custom label/package/case is acceptable, provide OEM and ODM service

Company Profile

Working Room

Specification:

Nearly ¥3 Million Is Spent On Certification, Just To Make Customers Trust Our Quality

Exhibition

Hong Kong Exhibition in April 2024

Product packaging

1.Sample is available.

2.Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others.
3. for 60W power adapter : each one put in one small inner brown box, then 50 pcs put in one standard carton.

Package	Piece/Carton(pcs)	Piece Weight(KG)
OEM package	50	0.26
Dimension/Brown Box(mm)	Dimension/Carton(mm)	Gross Weight/Carton(KG)
1558535	455370175	14
