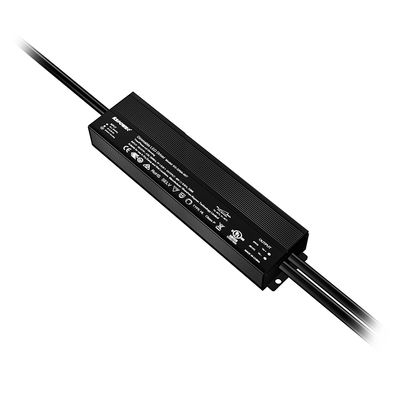

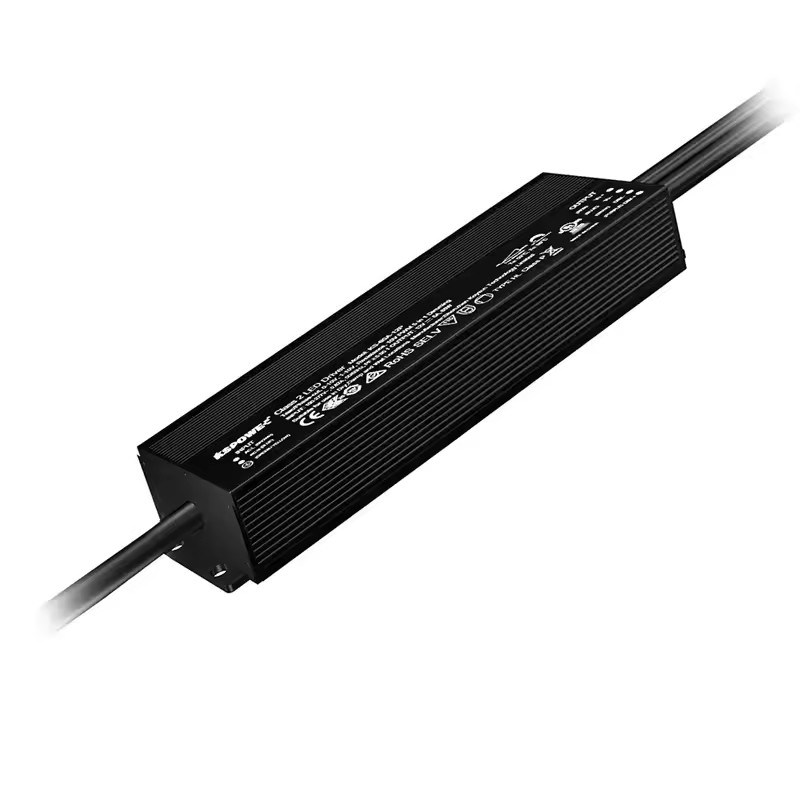

300W AC100-277V Dimmable LED Driver DC24V Customizable Waterproof LED Driver with 5-Year Warranty

300W AC100-277V Dimmable LED Driver DC24V Customizable Waterproof LED Driver with 5-Year Warranty

Brand Name:	KSPOWER
Model Number:	KS-300A-24P
MOQ:	2 pieces
Price:	The price is negotiable
Payment Terms:	T/T
Supply Ability:	300000/monthly

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

UL FCC CE ROHS SAA CLASS P etc.

Warranty(Year):

5-Year

Lighting Solutions Service:

Lighting And Circuitry Design

Output Power:

60-320W

Output Type:

PWM

Input Voltage:

100-277V

Output Frequency:

50/60Hz

Product Name:

Led Waterproof Driver

Application:

LED Strip Light,Pendants, Linears,Cove Lights

Material:

Aluminum Case

Warranty:

5 Years

Protection:

OCP, OVP, SCP, OTP

IP Rate:

IP65

Efficiency:

≥90%

Power:

60-320W

Output:

12V 24V 36V 48V

Packaging Details:

Brown box and Carton

Highlight:

Customizable LED Light Driver

AC 260V LED Light Driver

Customizable Waterproof LED Driver

Product Description

Customizable 300W LED Light Driver Waterproof LED Driver IP65 AC 260V DC 12V

12V 24V 36V 48V 120W Class P driver, 0/1-10V, 10V PWM, Resistance dimming 4 in 1 dimmable LED driver is constant voltage solution, and the perfect choice for under cabinet lighting and other residential and commercial lighting fixtures.

Applications

300W AC100-277V Dimmable LED Driver DC24V Customizable Waterproof LED Driver with 5-Year Warranty

Product Description

KS-300W is a versatile 300W 5-in-1 universal dimming driver that accepts 100-277VAC input voltage and provides 12V 24V 36V 48V constant voltage output. KS-300W delivers flicker free dimming to 0% on all dimming systems including 0-10V, 1-10V, Triac-Phase cut, PWM, Resistance, MLV, ELV and Incandescent. The high efficiency of the driver and sophisticated overload protection enables the electronics to run cooler and significantly improve reliability while extending product life.

The compact metal case is dry/damp location listed and IP65 rated, making it suitable for a wide range of indoor/outdoor architectural, commercial, industrial, and residential lighting applications. KS-300W is available with or without integrated junction boxes on both the input and output side that have two knockouts each.

Features

Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
Single Channel & Constant Voltage mode
Output Voltage: 12Volt/24Volt/36Volt/48Volt
Driver Type: Class 2 Class P
Enclosure: LISTED Enclosure with Junction Box / LISTED Enclosure without Junction Box
Dimming: PWM, 0/1-10V or MLV / ELV Resistance Dimmable Available
Environmental: Dry and Damp
Wiring Compartments with Knock-Outs for Clean and Easy Installation
Current Limiting Overload Protection
Flicker-Free
Smooth Ripple Free Output Voltage
IP65 Rated Enclosure for Indoor and Outdoor Use
5-Years Warranty
UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL

Note: Any custom label/package/case is acceptable, provide OEM and ODM service

Technical Specifications

Dimming Type	Series	Power	Model (xx=output voltage)	Output voltage	Output current	Input voltage	Size
5 in 1 dimming	HPJ	40W	KS-40AW-xxP	12V24V/36V/48V	3.3A \| 1.67A \| 1.11A \| 0.83A	100~277V 50/60Hz	2975836mm
		60W	KS-60AW-xxP		5A \| 2.5A \| 1.67A \| 1.25A		2975836mm
		80W	KS-80AW-xxP		6.67A \| 3.33A \| 2.22A \| 1.67A		2975836mm
		96W	KS-96AW-24P		/ \| 4A \| / \| /		3225836mm
		100W	KS-100AW-xxP		8.33A \| 4.16A \| 2.78A \| 2.08A		3225836mm
		120W	KS-120AW-xxP		10A \| 5A \| 3.33A \| 2.5A		3225836mm
		150W	KS-150AW-xxP		12.5A \| 6.25A \| 4.16A \| 3.13A		3436841mm
		180W	KS-180AW-12P		15A \| / \| / \| /		3436841mm
		200W	KS-200AW-xxP		16.66A \| 8.33A \| 5.55A \| 4.16A		3436841mm
		240W	KS-240AW-xxP		20A \| 10A \| 6.66A \| 5A		3676841mm
		300W	KS-300AW-24P		/ \| 12.5A \| / \| /		3676841mm
		320W	KS-320AW-xxP		/ \| 13.33A \| 8.88A \| 6.66A		3676841mm

FQA

Q: Are your LED drivers UL/cUL listed? How long is the warranty?
A: UL/cUL listed,5-years warranty

Q: Is this driver IP65 waterproof and suitable for indoor and outdoor use?
A: IP65 waterproof,indoor & outdoor

Q: Do you conduct burn-in test for all products before shipment?
A: 100% burn-in tested

Q: Do you support OEM & ODM? What specifications can be customized?
A: OEM/ODM:custom voltage,cable,label

Why choose us?

5 in 1 dimmable functions,Triac/0-10V/1-10V/10V PWM/Resistance dimming

.Non-dimming and multiple dimming functions,a variety of dimming combinations are available

.Suitable for forward & reverse phase dimming(MLV/ELV)

.Removable junction box to meet different market requirements

.Input voltage 100-277V,12V24V36V48V output voltage optional,and 40-320W power range

.We provide OEM/ODM services and can customize any part

.Glue filling process,heat dissipation,waterproof and moisture-proof

.High efficiency and energy saving,high PFC,flicker-free.

.Approved UL/cUL Class2 FCC CE GS-ENEC RoHS cert
