110V-240VAC 50/60HZ LED Driver Plastic Shell 6W LED Constant Voltage Power Supply 12V 0.5A Driver Output Type Single Phase
110V-240VAC 50/60HZ LED Driver Plastic Shell 6W LED Constant Voltage Power Supply 12V 0.5A Driver Output Type Single Phase
Basic Properties
country of origin
Guangdong, China
brand name
KSPOWER
product model
KSP-6W
Trading Properties
moq
500 pieces
unit price
$1.66/pieces 500-999 pieces
Product Summary
Input 110V-240VAC 50/60HZ factory sales LED Driver Supplier plastic shell 6W LED Constant Voltage Power Supply 12V 0.5A DriverThe plastic case LED driver is constant voltage and IP20 design, universal AC input 100-240V, the dc 6W power supply is compatible with LED lighting power supplies and open ...
Product Details
Highlight:
6W LED constant voltage power supply
,12V 0.5A LED driver
,110V-240VAC LED power supply
Warranty(Year):
1-Year
Lighting solutions service:
Lighting And Circuitry Design
Output Power:
6W
Output Type:
Single Phase
Input Voltage:
100-240 VAC
Output Frequency:
50/60Hz
Output Current:
0.5A
Product Name:
6W LED Constant Voltage Power Supply 12V 0.5A Driver
Output Voltage:
12VDC
Efficiency:
80% Min
Working hours:
20,000 Hrs Min
IP Rank:
IP20
Protections:
Short Circuit, Overload, Over Voltage, Over Temperature
Material:
ABS+PC
Warranty:
1 Years
Application:
LED Lighting, Celling Light Etc
Packing:
White Box + Carton
Product Description
Input 110V-240VAC 50/60HZ factory sales LED Driver Supplier plastic shell 6W LED Constant Voltage Power Supply 12V 0.5A Driver
The plastic case LED driver is constant voltage and IP20 design, universal AC input 100-240V, the dc 6W power supply is compatible with LED lighting power supplies and open frame power supply. The LED transformer is RU cRU CE RoHS certified.Products Description
12V 0.5A 6W 12 V Vdc Volt Volts 12volts 12vdc 0.5 A Amp Amps Ampere 0.5amps 500ma 6 W Watt Watts 6Watt 6Watts
The KSPOWER - P series AC DC led driver 6 Watt is one constant voltage solution, rectangular plastic case with IP20 level, single channel, accept AC input voltage range from 100V to 240V, and output voltage range from 5V to 48V. The led power transformer is great ideal for led strip lights and other low voltage devices such as security cameras audio, video gear cabinets light, Mr16, Mr11, G4 bulb and more. The P series led driver is small volume, with certification RU/cRU, CE, ROHS. The led dc transfromer is built-in intelligent chip-set, anti-thunder,with automatic thermal & overload cut-off, short circuit protection function.
Input Voltage | 100-240 Volts AC 50/60Hz | ||||
NO. | KSP-6W12 | ||||
Output Voltage | 12VDC | ||||
Rated Current(full load) | 0.5A | ||||
Rated Power | 6W | ||||
Working Temperature | -40℃ to +50℃ | ||||
Certification | RU cRU CE RoHS ... | ||||
Dimension(L*W*H) | 42*40*20mm / 1.65*1.57*0.79in | ||||
Features:
* Single channel & Constant Voltage switch power supply
* Low weight, rectangular plastic case
* Full Load Burn-in Test

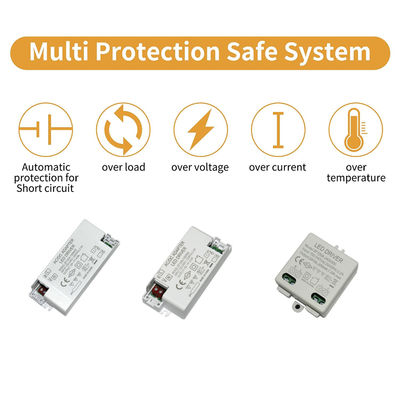

* Automatic protection for short circuit / overload / over voltage.
* 12 Months Warranty
* IP20 rated for indoor use
* Safe with fully insulated connectors type: Screw Terminal.
* Easy to install, mount, and wire
Note: Accept LOGO/color/package/case customization, OEM and ODM service
* Single channel & Constant Voltage switch power supply
* Low weight, rectangular plastic case
* Full Load Burn-in Test
* Automatic protection for short circuit / overload / over voltage.
* 12 Months Warranty
* IP20 rated for indoor use
* Safe with fully insulated connectors type: Screw Terminal.
* Easy to install, mount, and wire
Note: Accept LOGO/color/package/case customization, OEM and ODM service
Applications
This LED power supply driver is a reliable power source for LED strips and any other devices with power less than 6W and running voltage at 12V (DC).
The 6W power supply is enough power to run one of 3528 LED strip. DC 12V single white color constant voltage and compatible with RGB controllers. The power transformer itself is not dimmable.
The 6W power supply is enough power to run one of 3528 LED strip. DC 12V single white color constant voltage and compatible with RGB controllers. The power transformer itself is not dimmable.
Product packaging
1. Each one put in one small inner brown box, then 50 pcs put in one standard carton.
2. Sample is available.
3. Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others
2. Sample is available.
3. Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others
Package | Piece/Carton(pcs) | Piece Weight(KG) |
OEM package | 200 | 0.045 |
Dimension/Brown Box(mm) | Dimension/Carton(mm) | Gross Weight/Carton(KG) |
43*22*60 | 490*235*145 | 10 |
Company Profile
Shenzhensshi Zhenhuan Electronic Co., Ltd and Shenzhen Keysun Technology Limited.
We’re an enterprise integrating industry and trade, which was founded in 2008, located in Shenzhen. Specializing in R&D, production and sales of AC DC adapter, Power Supply Units, LED driver and Li-ion battery charger, with more than 15 years of experience.
As a strength manufacturer, we have two factories in Shenzhen and Dongguan. We focus on finished product assembly and plug-in semi-finished product processing respectively. At present, we have more than 100 workers and a production area of 3,000 square meters.
We have our own brand--KSPOWER. Brand concept is “ Concentrate on doing one thing well and provide customers with a competitive and reliable products.
As a strength manufacturer, we have two factories in Shenzhen and Dongguan. We focus on finished product assembly and plug-in semi-finished product processing respectively. At present, we have more than 100 workers and a production area of 3,000 square meters.
We have our own brand--KSPOWER. Brand concept is “ Concentrate on doing one thing well and provide customers with a competitive and reliable products.
