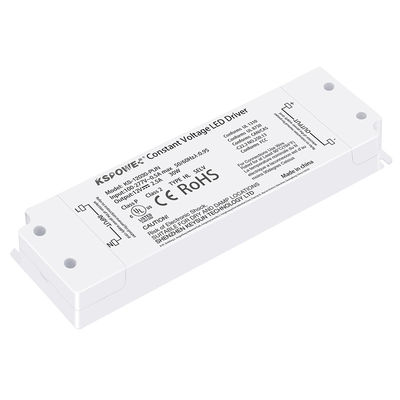

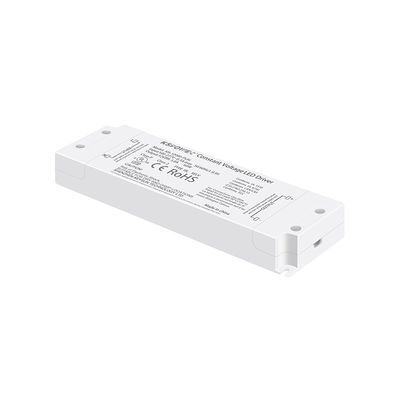

12V 20W Input 100-120V Constant Voltage IP20 LED Power Supply Driver for Indoor Strip Lighting Exceptional Efficiency

Name: 12V 20W Input 100-120V Constant Voltage IP20 LED Power Supply Driver for Indoor Strip Lighting Exceptional Efficiency
Brand: Shenzhen Keysun Technology Limited
SKU: KSPUN-20W12
Price: 54.36 USD
Availability: InStock

Brand Name:	KSPOWER
Model Number:	KSPUN-20W12
MOQ:	100 pieces
Price:	$10.36/pieces 100-499 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

China (Mainland)

Warranty(Year):

5-Year

Lighting Solutions Service:

Lighting And Circuitry Design, Project Installation

Output Power:

20W

Output Type:

Single Phase

Input Voltage:

100-120V&200-240V

Output Frequency:

50/60Hz

Output Current:

1.67A

Product Name:

12V20W High Pfc LED Driver

Output Voltage:

12V

Efficiency:

>85%

Protections:

OCP, OVP, SCP, OTP

Warranty:

5 Years

Certification:

UL CUL CE RoHS Certified.

Dimension:

153*50*20mm / 6.02*1.97*0.78in

Material:

Plastic Shall

Color:

White

Application:

LED Strip Light

Product Description

Products Description

white 12V 20w input 100-120V Constant Voltage ip20 customs LED Power Supply Driver for Indoor LED Strip Lighting

The KSPOWER - PUN series high PF led driver 20 Watt is one constant voltage and non dimmable solution, rectangular plastic case design, single channel, accept AC input voltage range from 100-120V & 200-240V, and output voltage options: 12V, 24V, 36V, 48V. The led power transformer is one Class 2 power supply, great ideal for led strip lights and other low voltage devices such as led strip light, video gear cabinets light, Mr16, Mr11, G4 bulb and more. The class 2 led driver is small volume, with certification UL/cUL, CE, ROHS. The led dc transfromer is built-in intelligent chip-set, anti-thunder,with automatic thermal & overload cut-off, short circuit protection function.

Features:
* High PFC function to 0.92
* Single channel & CV power supply
* Low weight, rectangular plastic case
* Full Load Burn-in Test
* Use in Dry and Damp locations
* Safe with fully insulated connectors type: Screw Terminal.
* Easy to install, mount, and wire

Note：Any custom label/package/case is acceptable, provide OEM and ODM service

Input Voltage	100-120Volts AC 60Hz & 200-240Volts AC 50Hz
NO.	KSPUN-20W12	KSPUN-20W24	KSPUN-20W36	KSPUN-20W48
Output Voltage	12V	24V	36V	48V
Rated Current	1666mA	830mA	555mA	416mA
Rated Power	20W
Ripple & Noise (max.)	200mVp-p	250mVp-p	250mVp-p	250mVp-p
Dimension(LWH)	1535020mm / 6.021.970.78in

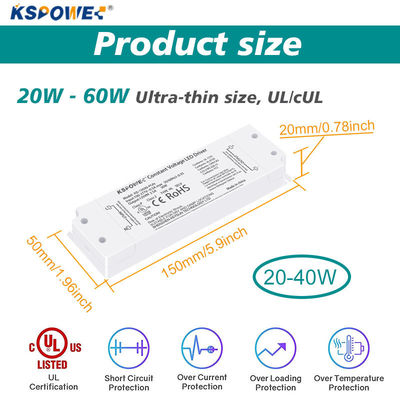

Dimension Drawing

Applications

The led driver is enough power to run one of LED strip, cabinet light etc. DC 12/24/36/48-volt single white color constant voltage and compatible with led strips.
