Protections Over Temperature 24VDC 1.25A Universal LED Driver 30W Ultra Small Plastic Shell Constant Voltage Power Supply
Protections Over Temperature 24VDC 1.25A Universal LED Driver 30W Ultra Small Plastic Shell Constant Voltage Power Supply
Basic Properties
country of origin
Guangdong, China
brand name
KSPOWER
product model
KSP-30W24
Trading Properties
moq
500 pieces
unit price
$3.95/pieces 500-999 pieces
Product Summary
constant voltage power supply universal safe connection ultra small plastic shell 24V 1.25A dc high efficiency led driver 30WThe plastic case LED driver is constant voltage and IP20 design, universal AC input 100-240V, the dc 30W power supply is compatible with LED lighting power supplies and open ...
Product Details
Highlight:
24VDC 1.25A LED driver
,30W constant voltage power supply
,ultra small plastic shell LED driver
Warranty(Year):
1-Year
Lighting solutions service:
Lighting And Circuitry Design
Output Power:
30W
Output Type:
Single Phase
Input Voltage:
100-240 VAC
Output Frequency:
50/60Hz
Output Current:
1250 MA
Product Name:
24V 1.25A Dc High Efficiency Led Driver 30W
Output Voltage:
24VDC
Efficiency:
80% Min
Working hours:
20,000 Hrs Min
IP Rank:
IP20
Protections:
Short Circuit, Overload, Over Voltage, Over Temperature
Material:
ABS+PC
Warranty:
1 Years
Application:
LED Lighting, Celling Light Etc
Packing:
White Box + Carton
Product Description

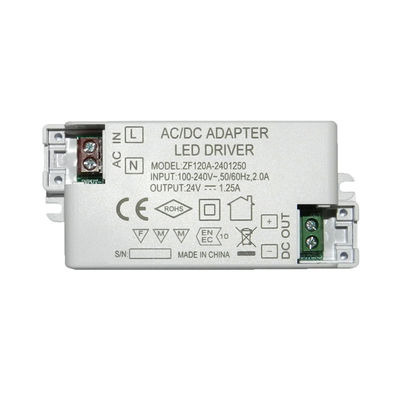

constant voltage power supply universal safe connection ultra small plastic shell 24V 1.25A dc high efficiency led driver 30W
The plastic case LED driver is constant voltage and IP20 design, universal AC input 100-240V, the dc 30W power supply is compatible with LED lighting power supplies and open frame power supply. The LED transformer is RU cRU CE RoHS certified.Products Description
24V 1.25A 30W 24 V Vdc Volt Volts 24volts 24vdc 1.25 A Amp Amps Ampere 1.25amps 1250ma 30 W Watt Watts 30Watt 30Watts
The KSPOWER - P series AC DC led driver 30 Watt is one constant voltage solution, rectangular plastic case with IP20 level, single channel, accept AC input voltage range from 100V to 240V, and output voltage range from 5V to 48V. The led power transformer is great ideal for led strip lights and other low voltage devices such as security cameras audio, video gear cabinets light, Mr16, Mr11, G4 bulb and more. The P series led driver is small volume, with certification RU/cRU, CE, ROHS. The led dc transfromer is built-in intelligent chip-set, anti-thunder,with automatic thermal & overload cut-off, short circuit protection function.
Input Voltage | 100-240 Volts AC 50/60Hz | ||||
NO. | KSP-30W24 | ||||
Output Voltage | 24VDC | ||||
Rated Current(full load) | 1.25A | ||||
Rated Power | 30W | ||||
Working Temperature | -40℃ to +50℃ | ||||
Certification | RU cRU CE RoHS ... | ||||
Dimension(L*W*H) | 94*44*24mm / 3.70*1.73*0.94in | ||||
Features:
* Single channel & Constant Voltage switch power supply
* Low weight, rectangular plastic case
* Full Load Burn-in Test
* Automatic protection for short circuit / overload / over voltage.
* 12 Months Warranty
* IP20 rated for indoor use
* Safe with fully insulated connectors type: Screw Terminal.
* Easy to install, mount, and wire
Note: Accept LOGO/color/package/case customization, OEM and ODM service
* Single channel & Constant Voltage switch power supply
* Low weight, rectangular plastic case
* Full Load Burn-in Test
* Automatic protection for short circuit / overload / over voltage.
* 12 Months Warranty
* IP20 rated for indoor use
* Safe with fully insulated connectors type: Screw Terminal.
* Easy to install, mount, and wire
Note: Accept LOGO/color/package/case customization, OEM and ODM service
Applications
This LED power supply driver is a reliable power source for LED strips and any other devices with power less than 30W and running voltage at 24V (DC).
The 30W power supply is enough power to run one of 3528 LED strip. DC 24V single white color constant voltage and compatible with RGB controllers. The power transformer itself is not dimmable.
The 30W power supply is enough power to run one of 3528 LED strip. DC 24V single white color constant voltage and compatible with RGB controllers. The power transformer itself is not dimmable.
Product packaging
1. Each one put in one small inner brown box, then 100 pcs put in one standard carton.
2. Sample is available.
3. Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others.
2. Sample is available.
3. Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others.
Package | Piece/Carton(pcs) | Piece Weight(KG) |
OEM package | 100 | 0.1 |
Dimension/Brown Box(mm) | Dimension/Carton(mm) | Gross Weight/Carton(KG) |
100*55*24 | 295*270*225 | 11 |
