Kspower Triac Dimmable LED Power Supply 20W 12V 24V Constant Voltage Waterproof Nema 3R Driver for LED Lighting 5 and 5

Brand Name:	KSPOWER
Model Number:	KSNT-20W12 / KSNT-20W24
MOQ:	100 pieces
Price:	$15.20-16.93/pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

UL/cUL/Class2/CE

Warranty(Year):

5-Year

Lighting Solutions Service:

Lighting And Circuitry Design

Output Power:

1 - 50W

Output Type:

Single Phase

Input Voltage:

120Vac 60Hz & 230Vac 50Hz

Output Current:

1.7A / 0.84A

Product Name:

20W Phase Dimming Pool Light Transformers

Output:

12V /24V

Dimming Mode:

Triac/ Phase-cut

Application:

LED Lighting

Warranty:

5 Years

Color:

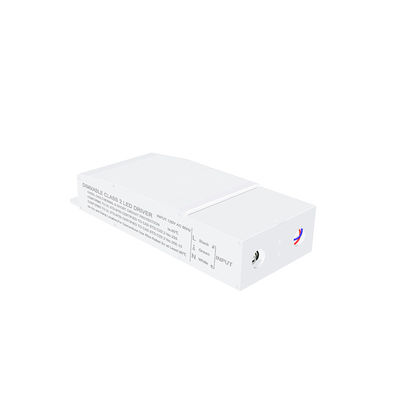

White Black

Efficiency:

≥ 91%

Material:

Aluminium Case

IP Rate:

Nema 3R,IP65

Product Description

Products Description

KSPOWER Triac Dimmable Led Power Supply 20w 12v 24v Constant Voltage waterproof nema 3r Led Driver With 5 Years Warranty

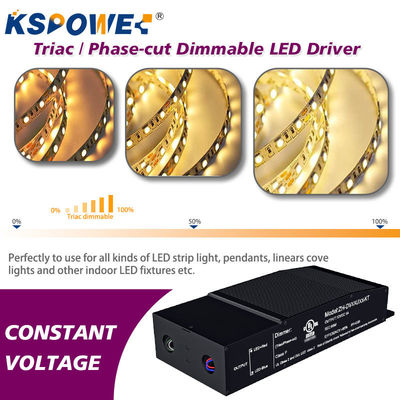

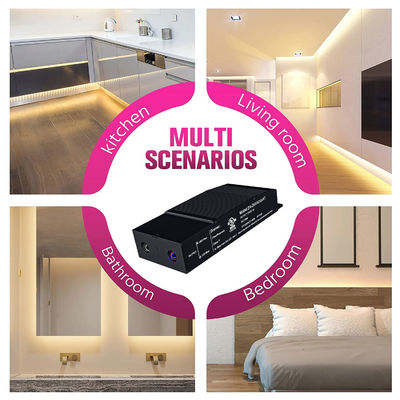

The KSPOWER - NT series triac dimmable led driver 20 Watt is one constant voltage solution, single channel, accept AC input voltage 120V, output voltage 12Volt 24Volt compatible with most AC wall dimmers including Lutron, Leviton and most other household dimmers. The class 2 12V 24V dimming transformer use low profile metal aluminum case, dry and damp, makes the dimmable led drivers solutions for LED strips, LED sign, billboard and landscape lighting. Featuring 2K frequency PWM output and NEMA 3R waterproof environment protection rated for indoor or outdoor use, the phase dim led driver provide 5 years warranty and outstanding led dimming performance.

Input Voltage	120V & 230VAC
Power Factor	PF≧0 95/120VAC at 80% load
NO.	KSNT-20W12 / KSNT-20W24
Output Voltage	12V/24V
Rated Current	1.7A/ 0.84A
Rated Power	20W
Ripple &Noise(max.)	200mVp-p / 250mVp-p
Dimension(LWH)	1777035mm/6.972.761.38in

Festures:

Dimmable with any standard MLV TRIAC (Leading edge) dimmer switch ● Dual protection – two manual push-to-reset circuit breakers on the primary and secondary sides ● 12V/24V PWM Output

● Single Channel & Constant Voltage mode

● Flicker-Free ● Nema 3R Enclosure – Outdoor Use ● Two bottom knockouts ● Optional 10% voltage boost to compensate for voltage drop

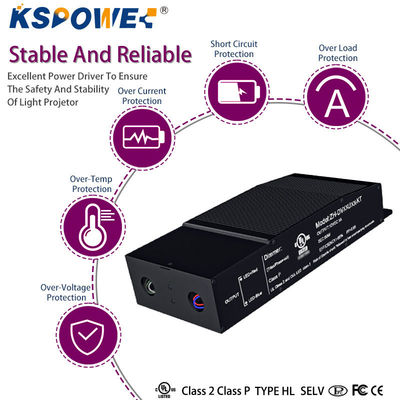

● Current Limiting Overload Protection ● UL/cUL 8750 CLASS2 CE Cert.

● Certified to CSA Standard

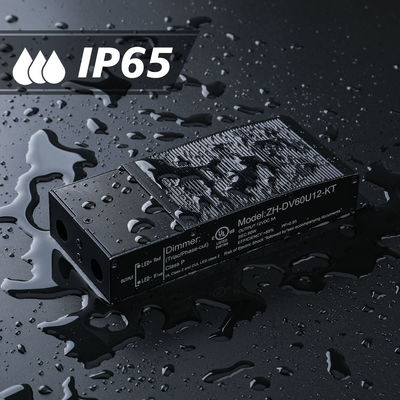

● Waterproof,for Dry, Damp, Wet Location

● 5 Years Warranty

Note：Any custom label/package/case is acceptable, provide OEM and ODM service

Details Images

Compatibility

Dimmer Model	Drivers	Dimmer Model	Drivers	Dimmer Model	Drivers
LUTRON DV-600P	No Flicker	LUTRON MSC-600M	No Flicker	LEVITON IP106-ILZ	No Flicker
LUTRON D-603PGH	No Flicker	LUTRON V-600	No Flicker	LEVITON DSE06-102ELV	No Flicker
LUTRON MAELV-600	No Flicker	LUTRON PD-6WCL	No Flicker	LEVITON DSL06-ILZ	No Flicker
LUTRON VT-600M	No Flicker	LUTRON SELV-300P	No Flicker	LEVITON DDL06-BL	No Flicker
LUTRON NT-603P	No Flicker	LUTRON MIRELV-600M	No Flicker	LEVITON DD710-BD	No Flicker
LUTRON NTLV-603P	No Flicker	LUTRON SPS-600	No Flicker	LEVITON IPL06-10	No Flicker
LUTRON N-2003P	No Flicker	LUTRON SPS-300LD-RP	No Flicker	LEVITON IP710-DL	No Flicker
LUTRON DVCL-153P	No Flicker	LEVITON 6613-PLW	No Flicker	LEVITON RDL06-10	No Flicker
LUTRON S-600P	No Flicker	LEVITON 6681	No Flicker	LEVITON TSM10-1L	No Flicker
LUTRON CTCL-153P	No Flicker	LEVITON 6633-P0G	No Flicker	LEVITON 66EV	No Flicker
