LED Lighting Transformer 24V IP65 Rainproof ACDC 12V 60W RGB CV Phase-cut Dimmable Switching Power Supply with 4A Current

Brand Name:	KSPOWER
MOQ:	10 pieces
Price:	$32/pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

UL/cUL/Class2/CE

Warranty(Year):

5-Year

Color:

Black, White, White Black

Current:

Lighting Solutions Service:

Lighting And Circuitry Design

Input Voltage(V):

120Vac 60Hz & 230Vac 50Hz

Product Name:

96W Phase Dimming Pool Light Transformers

Output:

24V

Dimming Mode:

Triac/ Phase-cut

Application:

LED Lighting

Warranty:

5 Years

Efficiency:

≥ 91%

Material:

Aluminium Case

IP Rate:

Nema 3R,IP65

Packaging Details:

a. 1pc per inner brown box
b. 20pcs per standard carton
c. custom is acceptable
d. sample is available

Product Description

Products Description

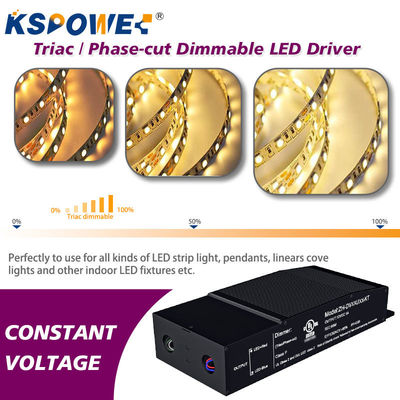

Flicker Free ul class2 24volts 96watts LED Driver traic phase dimming dimmable underwater low voltage Lighting Transformer

The KSPOWER - NT series triac dimmable led driver 96 Watt is one constant voltage solution, single channel, accept AC input voltage 120V, output voltage 24Volt compatible with most AC wall dimmers including Lutron, Leviton and most other household dimmers. The class 2 24V dimming transformer use low profile metal aluminum case, dry and damp, makes the dimmable led drivers solutions for LED strips, LED sign, billboard and landscape lighting. Featuring 2K frequency PWM output and NEMA 3R waterproof environment protection rated for indoor or outdoor use, the phase dim led driver provide 5 years warranty and outstanding led dimming performance.

Input Voltage	120V & 230VAC
Power Factor	PF≧0 95/120VAC at 80% load
NO.	KSNT-96W24
Output Voltage	24V
Rated Current	4A
Rated Power	96W
Ripple &Noise(max.)	250mVp-p
Dimension(LWH)	1777035mm/6.972.761.38in

Festures:

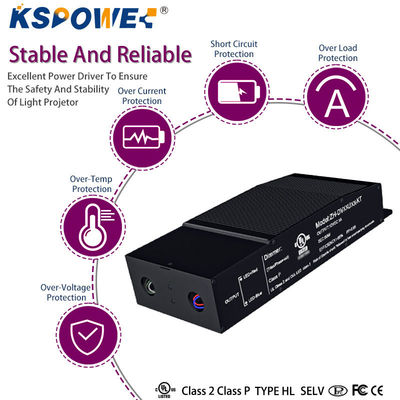

Dimmable with any standard MLV TRIAC (Leading edge) dimmer switch ● Dual protection – two manual push-to-reset circuit breakers on the primary and secondary sides ● 24V PWM Output

● Single Channel & Constant Voltage mode

● Flicker-Free ● Nema 3R Enclosure – Outdoor Use ● Two bottom knockouts ● Optional 10% voltage boost to compensate for voltage drop

● Current Limiting Overload Protection ● UL/cUL 8750 CLASS2 CE Cert.

● Certified to CSA Standard

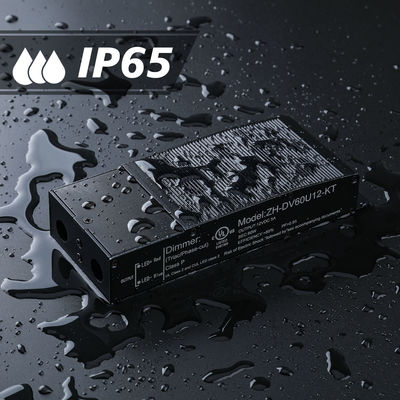

● Waterproof,for Dry, Damp, Wet Location

● 5 Years Warranty

Note：Any custom label/package/case is acceptable, provide OEM and ODM service

Details Images

Compatibility

Dimmer Model	Drivers	Dimmer Model	Drivers	Dimmer Model	Drivers
LUTRON DV-600P	No Flicker	LUTRON MSC-600M	No Flicker	LEVITON IP106-ILZ	No Flicker
LUTRON D-603PGH	No Flicker	LUTRON V-600	No Flicker	LEVITON DSE06-102ELV	No Flicker
LUTRON MAELV-600	No Flicker	LUTRON PD-6WCL	No Flicker	LEVITON DSL06-ILZ	No Flicker
LUTRON VT-600M	No Flicker	LUTRON SELV-300P	No Flicker	LEVITON DDL06-BL	No Flicker
LUTRON NT-603P	No Flicker	LUTRON MIRELV-600M	No Flicker	LEVITON DD710-BD	No Flicker
LUTRON NTLV-603P	No Flicker	LUTRON SPS-600	No Flicker	LEVITON IPL06-10	No Flicker
LUTRON N-2003P	No Flicker	LUTRON SPS-300LD-RP	No Flicker	LEVITON IP710-DL	No Flicker
LUTRON DVCL-153P	No Flicker	LEVITON 6613-PLW	No Flicker	LEVITON RDL06-10	No Flicker
LUTRON S-600P	No Flicker	LEVITON 6681	No Flicker	LEVITON TSM10-1L	No Flicker
LUTRON CTCL-153P	No Flicker	LEVITON 6633-P0G	No Flicker	LEVITON 66EV	No Flicker
