12V 3A Wall Power Adapter with Short Circuit Protection and UL Certification for Car Vacuum & Cooler

Brand Name:	KSPOWER
Model Number:	KS39DU-xxxyyyy
MOQ:	1 pieces
Price:	$3.38-3.69/piece
Payment Terms:	T/T
Supply Ability:	300000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

UL cUL FCC CE GS KC PSE SAA RoHS CB UKCA etc

Output Type:

Single Phase

Input:

100-240V AC 50/60Hz

Output Voltage:

12V

Output Current:

3000mA

Protection:

Short Circuit, Over Voltage, Over Current

Dc Cable:

1.2m, Or Custom

Dc Connector:

5.5*2.1mm, Or Custom

Certificate:

CUL UL CE TUV GS FCC KC SAA RoHS CB C-Tick RCM PSE

Usage:

Led Lighting, Lcd Monitor, Cctv Camera, Etc.

Packaging Details:

Small box and Carton

Highlight:

LED Lighting 12V 2A Power Adapter

Portable 12V 2A Power Adapter

CCTV Cameras 12v 2a power supply

Product Description

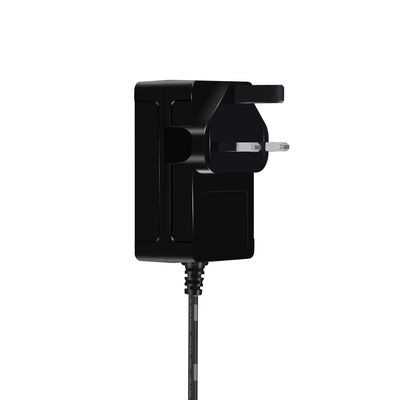

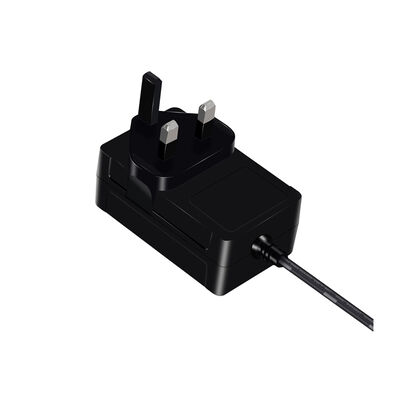

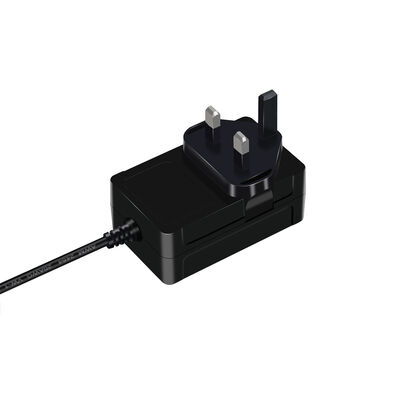

12V 3A Wall Adapter for Car Vacuum & Cooler

This versatile 12V 3A wall adapter provides reliable power for automotive accessories and various electronic devices with comprehensive safety features and global certifications.

Technical Specifications

Output Mode: Constant voltage
Input Voltage: AC100-240Vac, 50/60Hz or 220-240Vac, 50/60Hz
Output Range: DC5V-36V, 0.01A-4A, 48W Max
Protections: Short circuit, over current, over voltage
Energy Efficiency: DOE, CEC, ERPII MEPS GEMS
Operating Environment: 0-40℃, 5%-95% RH
Certifications: UL, cUL, FCC, GS, CCC, CQC, KC, PSE, UKCA, SAA, C-tick, RCM, RoHS, CB

Regional Specifications

Country	Max. Watt	Voltage Range	Current Range	Safety Standard
US	48W	DC5-36V	0.01A-4.0A	EN62368/UL 1310
EU	48W	DC5-36V	0.01A-4.0A	EN62368
UK	48W	DC5-36V	0.01A-4.0A	EN62368
AU	48W	DC5-36V	0.01A-4.0A	EN62368
KR	48W	DC5-36V	0.01A-4.0A	EN62368
JP	48W	DC5-36V	0.01A-4.0A	EN62368
CN	48W	DC5-36V	0.01A-4.0A	CCC-GB 4943.1-2022/CQC-GB 4343.1-2018;GB/T 4343.2-2020

Key Features

Single channel constant voltage power supply
100% full load burn-in testing
Passes LPS (limited power source) requirements
3-year comprehensive warranty
Class II power design (without earth pin)

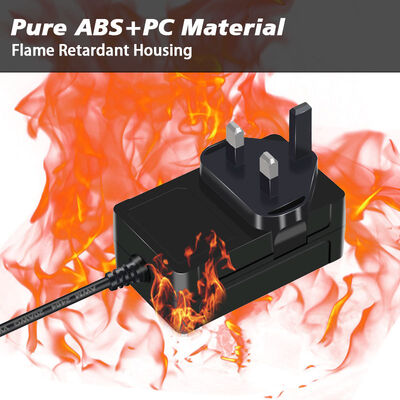

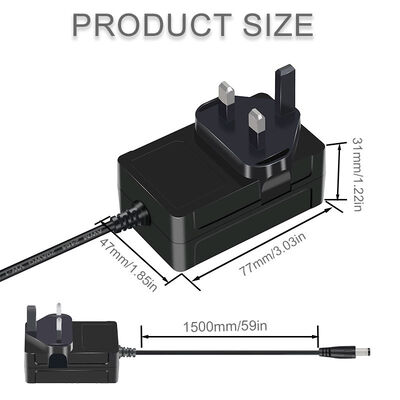

Compact size with fully enclosed PC plastic case
Fast startup time: <3 seconds
High energy efficiency: DOE/CEC/ErP/MEPS/NRcan Level VI

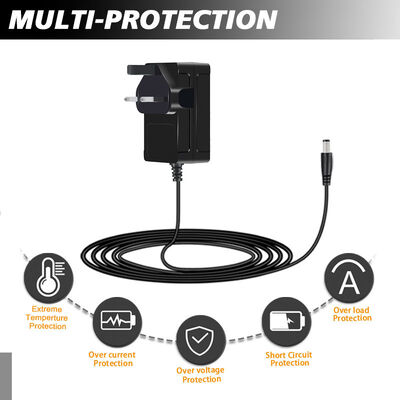

Automatic safety protections for over current, over load, and short circuit

Compatible AC Plugs

US, EU, UK, AU, Korea, Japan, China, Brazil, India, Argentina and other regional standards

Available DC Connectors

5.5*2.1mm, 5.5*2.5mm, 4.0*1.7mm, 3.5*1.35mm, 2.5*0.7mm, XLR, Cigarette lighter, and other customizable options

Applications

Ideal for electric grill ovens, LED strips, audio amplifiers, wireless routers, and audio/video power supplies.

Not waterproof - indoor use only.

Customization Services

We offer comprehensive OEM and ODM services with custom labeling, packaging, and case design options available to meet your specific requirements.
