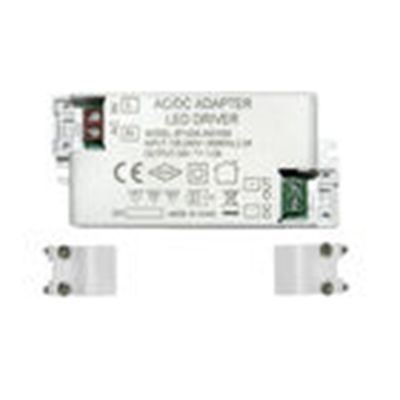

Single Phase Output Type White 48VDC 0.5A 24W Ultra-Thin LED Power Supply Driver 110V Constant Voltage IP20 for Indoor LED Strip Lighting

Single Phase Output Type White 48VDC 0.5A 24W Ultra-Thin LED Power Supply Driver 110V Constant Voltage IP20 for Indoor LED Strip Lighting

Single Phase Output Type White 48VDC 0.5A 24W Ultra-Thin LED Power Supply Driver 110V Constant Voltage IP20 for Indoor LED Strip Lighting

Brand Name: KSPOWER
Model Number: KSP-24W48
MOQ: 20 pieces
Price: $3.33/pieces 20-999 pieces
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Warranty(Year):
1-Year
Lighting Solutions Service:
Lighting And Circuitry Design
Output Power:
24W
Output Type:
Single Phase
Input Voltage:
100-240 VAC
Output Frequency:
50/60Hz
Output Current:
500 MA
Product Name:
Ultra Thin Input 110v Constant Voltage Ip20 LED Power Supply Driver
Output Voltage:
48VDC
Efficiency:
80% Min
Working Hours:
20,000 Hrs Min
IP Rank:
IP20
Protections:
Short Circuit, Overload, Over Voltage, Over Temperature
Material:
ABS+PC
Warranty:
1 Years
Application:
LED Lighting, Celling Light Etc
Packing:
White Box + Carton
Product Description
Single Phase Output Type White 48VDC 0.5A 24W Ultra-Thin LED Power Supply Driver 110V Constant Voltage IP20 for Indoor LED Strip Lighting 0
Single Phase Output Type White 48VDC 0.5A 24W Ultra-Thin LED Power Supply Driver 110V Constant Voltage IP20 for Indoor LED Strip Lighting 1
white 48VDC 0.5a 24w Ultra Thin input 110v Constant Voltage ip20 LED Power Supply Driver for Indoor LED Strip Lighting
The plastic case LED driver is constant voltage and IP20 design, universal AC input 100-240V, the dc 24W power supply is compatible with LED lighting power supplies and open frame power supply. The LED transformer is RU cRU CE RoHS certified.
Single Phase Output Type White 48VDC 0.5A 24W Ultra-Thin LED Power Supply Driver 110V Constant Voltage IP20 for Indoor LED Strip Lighting 2
Products Description
48V 0.5A 24W 48 V Vdc Volt Volts 48volts 48vdc 0.5 A Amp Amps Ampere 0.5amps 250ma 24 W Watt Watts 24Watt 24Watts
The KSPOWER - P series AC DC led driver 24 Watt is one constant voltage solution, rectangular plastic case with IP20 level, single channel, accept AC input voltage range from 100V to 240V, and output voltage range from 5V to 48V. The led power transformer is great ideal for led strip lights and other low voltage devices such as security cameras audio, video gear cabinets light, Mr16, Mr11, G4 bulb and more. The P series led driver is small volume, with certification RU/cRU, CE, ROHS. The led dc transfromer is built-in intelligent chip-set, anti-thunder,with automatic thermal & overload cut-off, short circuit protection function.
Input Voltage
100-240 Volts AC 50/60Hz
NO.
KSP-24W48
Output Voltage
48VDC
Rated Current(full load)
0.5A
Rated Power
24W
Working Temperature
-40℃ to +50℃
Certification
RU cRU CE RoHS ...
Dimension(L*W*H)
94*44*24mm / 3.70*1.73*0.94in
Features:
* Single channel & Constant Voltage switch power supply
* Low weight, rectangular plastic case
* Full Load Burn-in Test
* Automatic protection for short circuit / overload / over voltage.
* 12 Months Warranty
* IP20 rated for indoor use
* Safe with fully insulated connectors type: Screw Terminal.
* Easy to install, mount, and wire

Note: Accept LOGO/color/package/case customization, OEM and ODM service
Single Phase Output Type White 48VDC 0.5A 24W Ultra-Thin LED Power Supply Driver 110V Constant Voltage IP20 for Indoor LED Strip Lighting 3
Applications
This LED power supply driver is a reliable power source for LED strips and any other devices with power less than 24W and running voltage at 48V (DC).

The 24W power supply is enough power to run one of 3528 LED strip. DC 48V single white color constant voltage and compatible with RGB controllers. The power transformer itself is not dimmable.
Single Phase Output Type White 48VDC 0.5A 24W Ultra-Thin LED Power Supply Driver 110V Constant Voltage IP20 for Indoor LED Strip Lighting 4
Company Profile
Single Phase Output Type White 48VDC 0.5A 24W Ultra-Thin LED Power Supply Driver 110V Constant Voltage IP20 for Indoor LED Strip Lighting 5
Single Phase Output Type White 48VDC 0.5A 24W Ultra-Thin LED Power Supply Driver 110V Constant Voltage IP20 for Indoor LED Strip Lighting 6
Working Room
Single Phase Output Type White 48VDC 0.5A 24W Ultra-Thin LED Power Supply Driver 110V Constant Voltage IP20 for Indoor LED Strip Lighting 7
Single Phase Output Type White 48VDC 0.5A 24W Ultra-Thin LED Power Supply Driver 110V Constant Voltage IP20 for Indoor LED Strip Lighting 8
Single Phase Output Type White 48VDC 0.5A 24W Ultra-Thin LED Power Supply Driver 110V Constant Voltage IP20 for Indoor LED Strip Lighting 9
Single Phase Output Type White 48VDC 0.5A 24W Ultra-Thin LED Power Supply Driver 110V Constant Voltage IP20 for Indoor LED Strip Lighting 10
Specification:
Single Phase Output Type White 48VDC 0.5A 24W Ultra-Thin LED Power Supply Driver 110V Constant Voltage IP20 for Indoor LED Strip Lighting 11
Single Phase Output Type White 48VDC 0.5A 24W Ultra-Thin LED Power Supply Driver 110V Constant Voltage IP20 for Indoor LED Strip Lighting 12
Nearly ¥3 Million Is Spent On Certification, Just To Make Customers Trust Our Quality
Exhibition
Single Phase Output Type White 48VDC 0.5A 24W Ultra-Thin LED Power Supply Driver 110V Constant Voltage IP20 for Indoor LED Strip Lighting 13
Product packaging
1.Sample is available.
2.Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others.
3. for 60W power adapter : each one put in one small inner brown box, then 50 pcs put in one standard carton.
Package
Piece/Carton(pcs)
Piece Weight(KG)
OEM package
50
0.26
Dimension/Brown Box(mm)
Dimension/Carton(mm)
Gross Weight/Carton(KG)
155*85*35
455*370*175
14
Single Phase Output Type White 48VDC 0.5A 24W Ultra-Thin LED Power Supply Driver 110V Constant Voltage IP20 for Indoor LED Strip Lighting 14
