Cost-Effective IP65 Waterproof 60W LED Driver for Outdoor Lighting with Aluminium Case

Cost-Effective IP65 Waterproof 60W LED Driver for Outdoor Lighting with Aluminium Case
Quality Cost-Effective IP65 Waterproof 60W LED Driver for Outdoor Lighting with Aluminium Case factory
Quality Cost-Effective IP65 Waterproof 60W LED Driver for Outdoor Lighting with Aluminium Case factory
Quality Cost-Effective IP65 Waterproof 60W LED Driver for Outdoor Lighting with Aluminium Case factory
Quality Cost-Effective IP65 Waterproof 60W LED Driver for Outdoor Lighting with Aluminium Case factory
Quality Cost-Effective IP65 Waterproof 60W LED Driver for Outdoor Lighting with Aluminium Case factory
Quality Cost-Effective IP65 Waterproof 60W LED Driver for Outdoor Lighting with Aluminium Case factory
Quality Cost-Effective IP65 Waterproof 60W LED Driver for Outdoor Lighting with Aluminium Case factory
Quality Cost-Effective IP65 Waterproof 60W LED Driver for Outdoor Lighting with Aluminium Case factory

Basic Properties

country of origin
Guangdong, China
brand name
KSPOWER
certificate
UL cUL CE Class 2 Class P ENEC Gs TYPE HL...
product model
KS-60LW-xxP

Trading Properties

moq
2 pieces
unit price
The price is negotiable
payment method
T/T
supply capacity
300000pcs/monthly

Product Summary

IP65 60W Waterproof LED Driver - Cost-Effective Solution for Outdoor Lighting The KSPOWER - LP series 5 in 1 dimmable 60W LED driver provides a constant voltage solution with single channel operation. It accepts universal AC input voltage ranging from 100V to 277V, with optional output voltages of ...

Product Details

Highlight:

12V 60W Triac Dimmable LED Driver

,

Phase Cut Triac Dimmable LED Driver

,

48V Waterproof LED Driver
Warranty(Year):
5-Year
Lighting solutions service:
Lighting And Circuitry Design
Output Power:
60W
Output Type:
PWM
Input Voltage:
100-277V
Output Frequency:
50/60Hz
Output Current:
1.25A-5A
Product Name:
24V 36V 48V 0-10V PWM Resistance Dimming Power Supply
Output:
12V 24V 36V 48V 60W
Application:
Street Light, Tunnel Light, Wall Lamp,Spot Light
IP Rate:
IP65,IP67
Material:
Aluminium Case
Warranty:
5 Years
Output Mode:
Pwm Output
Efficiency:
≥ 89%
Type:
Constant Voltage

Product Description

IP65 60W Waterproof LED Driver - Cost-Effective Solution for Outdoor Lighting
The KSPOWER - LP series 5 in 1 dimmable 60W LED driver provides a constant voltage solution with single channel operation. It accepts universal AC input voltage ranging from 100V to 277V, with optional output voltages of 12V, 24V, 36V, or 48V. Featuring greater operating efficiency and higher PFC function, this driver is ideal for LED strips, signage, billboards, and landscape lighting applications.
Key Features
  • Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
  • Single Channel & Constant Voltage mode
  • Output Voltage: 12V/24V/36V/48V options
  • Driver Type: Class 2 Class P
  • LISTED Enclosure with input and output wire
  • Multiple Dimming Options: Triac/Phase-cut, PWM, 0/1-10V or MLV/ELV Resistance Dimmable
  • Suitable for Dry and Damp environments
  • Wiring Compartments with Knock-Outs for clean, easy installation
  • Current Limiting Overload Protection
  • Flicker-Free operation with smooth ripple-free output voltage
  • IP67 Rated Enclosure for Indoor and Outdoor use
  • 5-Year Warranty
  • Certifications: UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL

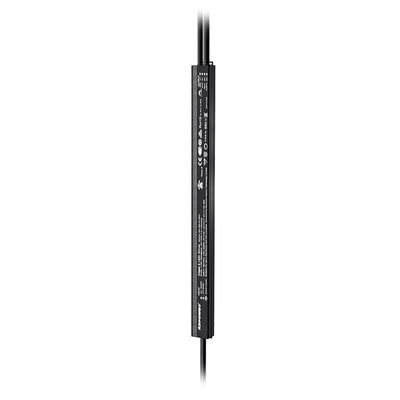

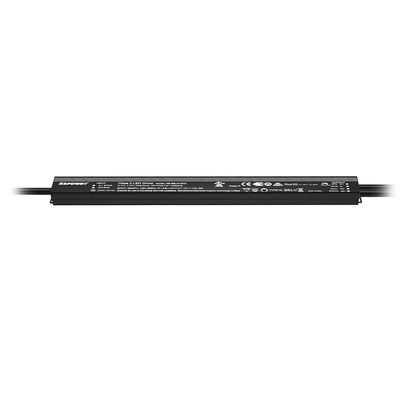

IP65 60W Waterproof LED Driver Product Image
Technical Specifications
Dimming Type Series Power Model (xx=output voltage) Output Voltage & Current Input Voltage Size
5 in 1 dimming LP 30W KS-30LW-xxP 12V:2.5A, 24V:1.25A, 36V:0.83A, 48V:0.62A 100~277V 50/60Hz 270*32*24.5mm
40W KS-40LW-xxP 12V:3.33A, 24V:1.66A, 36V:1.11A, 48V:0.83A 270*32*24.5mm
60W KS-60LW-xxP 12V:5A, 24V:2.5A, 36V:1.67A, 48V:1.25A 310*32*24.5mm
80W KS-80LW-xxP 12V:6.66A, 24V:3.33A, 36V:2.22A, 48V:1.66A 310*32*24.5mm
100W KS-100LW-xxP 12V:8.33A, 24V:4.16A, 36V:2.78A, 48V:2.08A 355*32*24.5mm
Note: Custom labeling, packaging, and casing options available. OEM and ODM services provided.

FQA
.UL/cUL listed,5-year warranty
.IP65 waterproof,indoor & outdoor
100%burn-in tested
OEM/ODM:custom voltage,cable,label

Why choose us?
.Triac/0-10V/1-10V PWM/Resistance dimming/Non-dimming,multiple dimmable function combinations are available
.Suitable for forward & reverse phase dimming(MLV/ELV)
.Slim shape,suitable for tighter space
.Input voltage 100-277V,12V24V36V48V output voltage optional,and 30-100W power range
.Glue filling process,heat dissipation,waterproof and moisture-proof
.Hige efficiency and energy saving ,high PFC,flicker-free
.Approved UL/cUL Class2 FCC CE GS ENEC RoHS cert
