| Brand Name: | KSPOWER |
| Model Number: | KSE-100W24 |
| MOQ: | 2 pieces |
| Price: | $11.58/pieces 2-499 pieces |
| Attribute | Value |
|---|---|
| Warranty | 5-Year |
| Lighting Solutions Service | Lighting and circuitry design |
| Output Power | 60W |
| Output Type | Single Phase |
| Input Voltage | 100V-120V |
| Output Frequency | 50/60Hz |
| Output Voltage | 24V |
| Efficiency | >90% |
| Protections | OCP, OVP, SCP, OTP |
| Certification | ETL CE ROHS UL Class2 |
| Dimensions | 200*85*37mm (L*W*H) |
| Material | Iron case |
| Color Options | Silver, Black, White, Blue, Gray or custom |
| Application | LED Street Lighting |

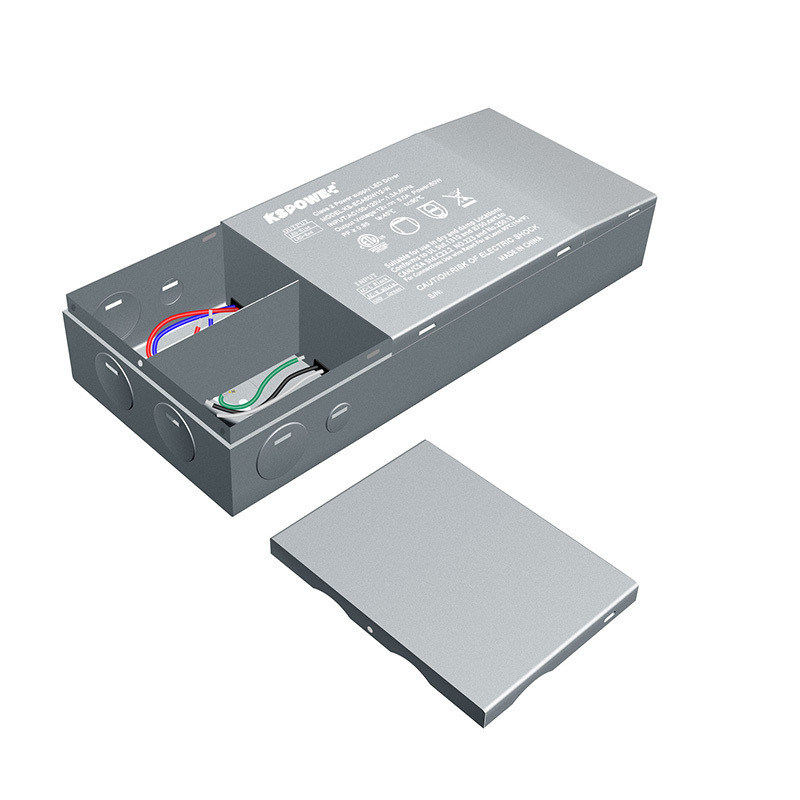

The KSPOWER E-series non-dimmable LED driver provides a 60W constant voltage solution with single channel output. Designed for professional lighting applications, it accepts AC input voltage from 100V to 120V and delivers stable 24V DC output with junction box connection.

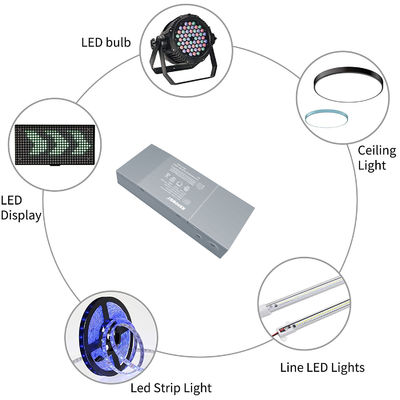

This Class 2 LED power supply features a low-profile metal iron case with multiple safety protections, making it suitable for both indoor and outdoor lighting applications. The driver is compatible with single color or RGB light strips, string lights, and various electronic devices including security cameras and audio/video equipment.
| Model Number | KSE-60W24 |
| Input Voltage | 100V-120V AC 60Hz |
| Output Voltage | 24V |
| Rated Current | 2.5A |
| Rated Power | 60W |
| Working Temperature | -40℃ to +50℃ |
| Working Humidity | 10%-100%Rh |
| Dimensions | 200*85*37mm (7.88*3.35*1.46in) |
| Dimming Method | No Dimming |
| Package Type | Pieces per Carton | Unit Weight |
| OEM package | 50 | 0.26KG |
| Inner Box Dimensions | Carton Dimensions | Gross Weight |
| 155*85*35mm | 455*370*175mm | 14KG |
