Custom 0-10v Dimmable Driver 30W 4 In 1 Dimmable Lighting Transformers 12V Output IP67

Custom 0-10v Dimmable Driver 30W 4 In 1 Dimmable Lighting Transformers 12V Output IP67
Quality Custom 0-10v Dimmable Driver 30W 4 In 1 Dimmable Lighting Transformers 12V Output IP67 factory
Quality Custom 0-10v Dimmable Driver 30W 4 In 1 Dimmable Lighting Transformers 12V Output IP67 factory
Quality Custom 0-10v Dimmable Driver 30W 4 In 1 Dimmable Lighting Transformers 12V Output IP67 factory
Quality Custom 0-10v Dimmable Driver 30W 4 In 1 Dimmable Lighting Transformers 12V Output IP67 factory
Quality Custom 0-10v Dimmable Driver 30W 4 In 1 Dimmable Lighting Transformers 12V Output IP67 factory
Quality Custom 0-10v Dimmable Driver 30W 4 In 1 Dimmable Lighting Transformers 12V Output IP67 factory
Quality Custom 0-10v Dimmable Driver 30W 4 In 1 Dimmable Lighting Transformers 12V Output IP67 factory

Basic Properties

country of origin
Guangdong, China
brand name
KSPOWER
certificate
UL/cUL/CE/TUV-GS/RoHS/Class2

Trading Properties

moq
100 pieces
unit price
The price is negotiable

Product Summary

Custom 0-10v Dimmable Driver 30W 4 In 1 Dimmable Lighting Transformers 12V Output IP67 Products Description IP67 led driver 12v aluminium waterproof custom dimming 0-10V/1-10V/PWM/resistance 30W 4 in 1 dimmable Lighting Transformers The KSPOWER - LO series 4 in 1 dimmable led driver 30 Watt is one ...

Product Details

Highlight:

Custom 0-10v Dimmable Driver

,

30W 0-10v Dimmable Driver

,

12V Dimmable Lighting Transformers
Warranty(Year):
5-Year
Color:
Black, Silver
Current:
2.5A
Lighting solutions service:
Lighting And Circuitry Design
Input Voltage(V):
100-277Vac
Product Name:
12V 30W 4 In 1dimmer Slim Led Driver
Output:
12V 30W
Application:
LED Strip Light,Pendants, Linears,Cove Lights
Material:
Aluminum Case
Warranty:
5 Years
Dimming Type:
0-10V,1-10V,10V PWM, Resistance (4 In 1)
Protection:
OCP, OVP, SCP, OTP
Efficiency:
≥89%
IP Rate:
IP65,IP67

Product Description

Custom 0-10v Dimmable Driver 30W 4 In 1 Dimmable Lighting Transformers 12V Output IP67  Products Description
IP67 led driver 12v aluminium waterproof custom dimming 0-10V/1-10V/PWM/resistance 30W 4 in 1 dimmable Lighting Transformers
The KSPOWER - LO series 4 in 1 dimmable led driver 30 Watt is one constant voltage slim housing solution, single channel, accept standard AC input voltage range from 100V to 277V, output voltage 12Volt 24Volt 36Volt 48Volt optional with greater operating efficiency and higher PFC function. The class 2 dimming power transformer use low profile metal aluminum case, dry and damp, makes the 0-10V 1-10V PWM dimmable led driver power solutions for LED strips, LED sign, billboard and landscape lighting. Featuring PWM output and IP65 waterproof environment protection rated for indoor or outdoor use, the UL cUL CE GS certified dimmable led drivers provide 5 years warranty and outstanding led dimming performance.

Features:
* Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
* Single Channel & Constant Voltage mode
* Output Voltage: 12Volt/24Volt/36Volt/48Volt
* Driver Type: Class 2 Class P
* Enclosure: LISTED Enclosure with input and output wire
* Dimming: Triac/ Phase-cut, PWM, 0/1-10V or MLV / ELV Resistance Dimmable Available
* Environmental: Dry and Damp
* Wiring Compartments with Knock-Outs for Clean and Easy Installation
* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage
* IP67 Rated Enclosure for Indoor and Outdoor Use
* 5-Years Warranty
* UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL
Input Voltage
100~277V AC 47~63Hz



Power Factor
PF≧0 98/115VAC, PF≧0 95/230VAC, PF≧0.9/277VAC, 80% with load



NO.
KSLO-30W



Output Voltage
12V/ 24V/ 36V/ 48V



Rated Current
2.5A/1.25A/0.83A/0.62A



Rated Power
30W



Ripple & Noise (max.)
200mVp-p/ 250mVp-p



Dimension(L*W*H)
315*32*24.5mm / 12.4*1.26*0.97in





Custom 0-10v Dimmable Driver 30W 4 In 1 Dimmable Lighting Transformers 12V Output IP67

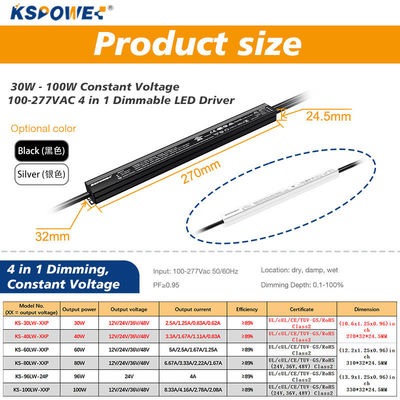

Dimming Type Series Power Model
(xx=output voltage)		 Output voltage&
Output current		 Input voltage Size
12V 24V 36V 48V
4 in 1 dimming LO 30W KS-30LW-xxO 2.5A 1.25A 0.83A 0.62A 100~277V
50/60Hz		 270*32*24.5mm
40W KS-40LW-xxO 3.33A 1.66A 1.11A 0.83A
60W KS-60LW-xxO 5A 2.5A 1.67A 1.25A 310*32*24.5mm
80W KS-80LW-xxO 6.66A 3.33A 2.22A 1.66A
96W KS-96LW-24O / 4A / / 355*32*24.5mm
100W KS-100LW-xxO 8.33A 4.16A 2.78A 2.08A


Wiring Diagram



Custom 0-10v Dimmable Driver 30W 4 In 1 Dimmable Lighting Transformers 12V Output IP67


Note:Any custom label/package/case is acceptable, provide OEM and ODM service


Custom 0-10v Dimmable Driver 30W 4 In 1 Dimmable Lighting Transformers 12V Output IP67
